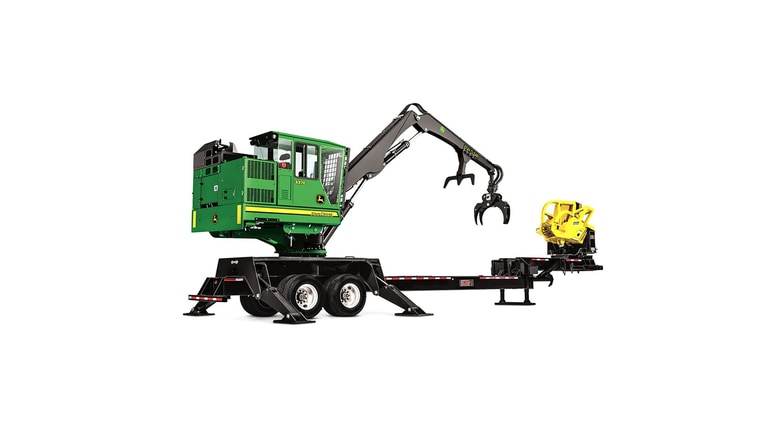

337E Knuckleboom Loader
- Engine Power: 129 kW (173 hp) at 2,000 rpm
- Boom Reach: 9144 mm (30 ft. 0 in)
- Operating Weight: 13 871 kg (30,580 lb.)
- Lift Capacity: 8 980 kg (19,798 lb.)
Specifications
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 337E Knuckleboom Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | 6068 HTJ57 PowerTech PVS | |||
| Displacement, ltr (Inches³) | 6.8 (415) | |||
| Rated Speed, rpm | 2000 | |||
| Engine Output - Net, kW (hp) | 119 (159) | |||
| Engine Output - Gross, kW (hp) | 129 (173) | |||
| Engine Torque, Nm (lbf / ft) | 722 (532.5) | |||
| Torque Rise, % | 17 |
DIMENSIONS
| Base Carrier Length, m (ft/in) | 3.81 (12 ft 6 in) | |||
|---|---|---|---|---|
| Height Over Cab, mm (ft/in) | 4112 (13 ft 6 in) | |||
| Superstructure Width, mm (ft/in) | 2606 (8 ft 7 in) | |||
| Boom Horizontal Reach, m (ft/in) | 9.144 (30 ft ) | |||
| Slewing Angle, Degrees | 360 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 340 (90) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 170 (45) | |||
| Alternator Output, Amp | 120 |
PERFORMANCE
| Slew Speed, rpm | 10 | |||
|---|---|---|---|---|
| 5ft lift @ 10ft radius, kg (lbs) | 4070 (8973) | |||
| 5ft lift @ 15ft radius, kg (lbs) | 7430 (16380) | |||
| 5ft lift @ 20ft radius, kg (lbs) | 5500 (12125) | |||
| 5ft lift @ 25ft radius, kg (lbs) | 4360 (9612) | |||
| 5ft lift @ 30ft radius, kg (lbs) | 1563 (3446) | |||
| 10ft lift @ 10ft radius, kg (lbs) | 8980 (19798) | |||
| 10ft lift @ 15ft radius, kg (lbs) | 6610 (14573) | |||
| 10ft lift @ 20ft radius, kg (lbs) | 5160 (11376) | |||
| 10ft lift @ 25ft radius, kg (lbs) | 4290 (9458) | |||
| 10ft lift @ 30ft radius, kg (lbs) | 1895 (4178) | |||
| System Voltage, V | 12 | |||
| Pump | Axial Piston |
WEIGHTS
| Operating Weight, kg (lbs) | 13871 (30580) |
|---|
