370B Backhoe

Stabilizers, boom and swing locks accessible from the operator’s seat
Large, easy-access step and hand brace
Upgraded valve provides smooth hydraulics for precise control
Available field-install thumb option

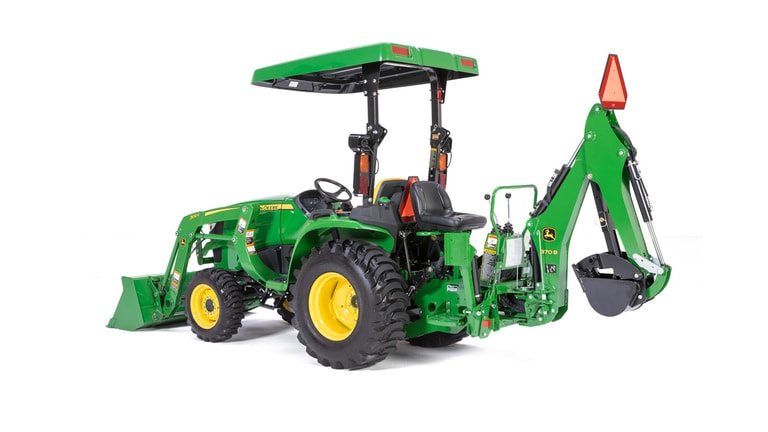

Studio image of 370B Backhoe

Features

Features

Expand All Collapse All

Optional rubber street pads

Rubber stabilizer pads

Rubber stabilizer pads

Rubber stabilizer pads are available as an attachment. The pads are popular when operating the backhoe on hard surfaces.

Rubber stabilizer pads keep scratching and damage to ground surfaces minimal

Show More Show Less

Specifications

Specs & Compare

Specs & Compare

ADD MODEL

Add Model

ADD MODEL

Select Different Model

Specs & Compare

Select up to 4 models to compare specifications

John Deere

370B

Backhoe

Export to Excel

1 2

Key Specs

Digging depth	2.08 m 6 ft, 10 in.
SAE dipperstick digging force	7015 N 1577 lbf
SAE bucket digging force	11,975 N 2692 lbf
Swing arc	148 degree (angle)
Boom lift capacity	137 kg 302 lb
Transport height	2 m 6 ft, 7 in.
Stabilizers spread width, up	1.17 m 4 ft, 0.25 in.
Stabilizers spread width, down	1.9 m 6 ft, 2 in.
Bucket widths	20.3 cm (8 in.) 30.5 cm (12 in.) 40.6 cm (16 in.)
Total weight

Backhoe

Swing arc	148 degree (angle)
Bucket rotation	176 degree (angle)
Boom lift capacity	137 kg 302 lb
SAE dipperstick digging force	7015 N 1577 lbf
SAE bucket digging force	11,975 N 2692 lbf
Angle of departure
Hydraulic relief setting
Bucket control main relief valve pressure	172.4 bar 2500 psi

Dimensions

Digging depth	2.08 m 6 ft, 10 in.
Loading height (bucket at 60 degrees)	1.8 m 5 ft, 10.5 in.
Reach from center line of swing pivot	3 m 9 ft, 9 in.
Transport height	2 m 6 ft, 7 in.
Loading reach (bucket at 60 degrees)	1.17 m 3 ft, 10 in.
Transport overhang	1.1 m 3 ft, 6 in.
Undercut	43 cm 17 in.
Stabilizer type	Stabilizers spread width, up 1.17 m 4 ft, 0.25 in. Stabilizers spread width, down 1.9 m 6 ft, 2 in.

Weight

Total
With RSA side plate kit and 20-in. bucket
With frame adapter and 24-in. bucket
With medium frame adapter and 24-in. bucket
With large frame adapter and 24-in. bucket
With 0.4-m (16-in.) bucket	350 kg 773 lb

Bucket

Bucket widths	SAE struck capacity 20.3 cm (8 in.) - 0.012 m3 - 0.42 cu ft cu ft 30.5 cm (12 in.) - 0.019 m3 - 0.66 cu ft 40.6 cm (16 in.) - 0.25 m3 - 0.9 cu ft Heaped capacity 20.3 cm (8 in.) - 0.013 m3 - 0.46 cu ft 30.5 cm (12 in.) - 0.022 m3 - 0.76 cu ft 40.6 cm (16 in.) - 0.03 m3 - 1.06 cu ft Shipping weight 20.3 cm (8 in.) - 40 lb (18.1 kg) 30.5 cm (12 in.) - 50 lb (22.7 kg) 40.6 cm (16 in.) - 60 lb (27.2 kg) 20.3 cm (8 in.) 30.5 cm (12 in.) 40.6 cm (16 in.)
