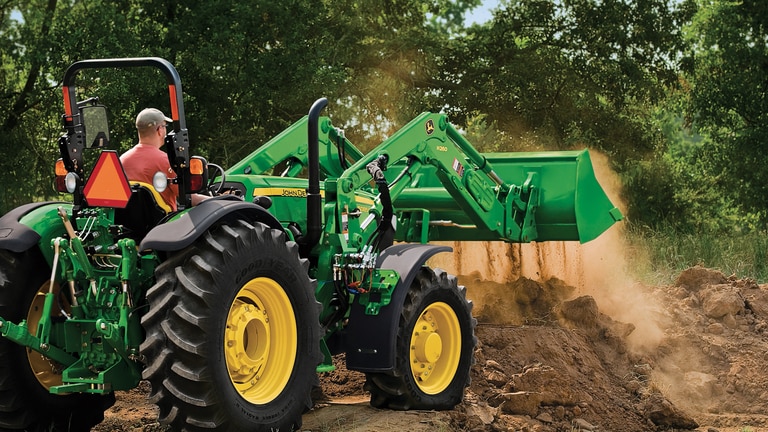

540M Loader
- Superior strength and visibility
- For heavy-duty chores
- Parking stands are integrated on the loader
For heavy-duty chores, make sure you have a loader that is up to the task with the John Deere 540M, for sale at Minnesota Equipment. This loader is manufactured up to the highest-quality John Deere standards, and save you time and money. A single-point hydraulic connection makes attaching easy, and boom lockout allows for simple access to critical functions. Integrated parking stands and false rod bucket cylinders improve productivity for operators. Buy your 540M loader today from your local premier John Deere dealer, C & B Operations.
Features
Specifications
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 540M Loader |
Key Specs
| Maximum lift height (A) | 3578 mm 141 in. |
|||
|---|---|---|---|---|
| Lift capacity at full height | Measured at pivot (U) 1373 kg 3027 lb |
|||
| Boom breakout force | Measured at pivot (Y) 2671 kg |
|||
| Bucket rollback force capacity | At ground-level line (ZZ) 3046 kg |
|||
| Clearance at full height - bucket dumped (C) | 2538 mm 100 in. |
|||
| Dump angle, degrees (E) | -74 degree (angle) | |||
| Rollback angle, degrees (G) | 42 degree (angle) |
Tractor
| Model | 6135E | |||
|---|---|---|---|---|
| Front tire | 14.9R24 | |||
| Rear tire | 18.4R38 | |||
| Front axle configuration | MFWD | |||
| Wheelbase | 2380 mm 94 in. |
|||
| Pump capacity | 75.7 L/min 20 gpm |
|||
| Rated pressure | 195 bar 2828 psi |
Loader
| Base weight | 1028.2 kg | |||
|---|---|---|---|---|
| Leveling configuration | Mechanical Self Leveling (MSL) | |||
| Bucket used | Materials 1850 mm Materials 73 in. |
|||
| Bucket weight | 246 kg 542 lb |
|||
| Lift capacity at full height | Measured at pivot (U) 1373 kg 3027 lb Measured at 800 mm ahead of pivot (V) 1481 kg |
|||
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2015 kg Measured at 800 mm ahead of pivot (X) 1931 kg |
|||
| Boom breakout force | Measured at pivot (Y) 2671 kgf Measured at 800 mm ahead of pivot (Z) 2325 kg |
|||
| Bucket rollback force capacity | At maximum height (VV) 1636 kg At 59-in. (1500-mm) lift height (XX) 2986 kg At ground-level line (ZZ) 3046 kg |
|||
| Dimensions | Maximum lift height (A) 3578 mm 141 in. At full height - bucket level(B) 3383 mm 133 in. At full height - bucket dumped (C) 2538 mm 100 in. |
|||
| Overall length (I+F), ft (m) | 4.8 m 15.8 ft |
|||
| Overall height in carry position (J) | ||||
| Digging depth (H) | 47 mm 1.9 in. |
|||
| Reach | At maximum height (D) 1011 mm 39.8 in. At ground level - bucket level (F) 2426 mm 95.5 in. |
|||
| Bucket angle | Dump angle, degrees (E) -74 degree (angle) Rollback angle, degrees (G) 42 degree (angle) Dump angle, ground -96 degree (angle) |
|||
| Cycle times | Loader raise, seconds 3.4 seconds Loader lower, seconds 2.5 seconds Bucket dump, seconds 2.1 seconds Bucket rollback, seconds 2.1 seconds |
