544 P-Tier Mid-Size Wheel Loader

Net Power: 123 kW (166 hp) at 1,700 rpm
Operating Weight: 13 844–13 879 kg (30,520–30,598 lb.)
Bucket Capacity: 1.9–4.0 m³ (2.5–5.25 cu. yd.)

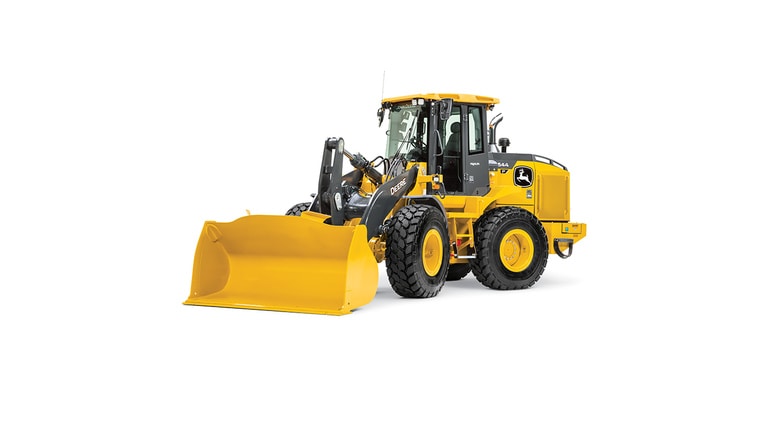

544 P Tier on white background

Features

Features

Expand All Collapse All

EH Controls

Easily control up to six functions without removing your hand from the ergonomically designed joystick. Two industry-exclusive multifunction buttons can each be programmed to handle any of 10 functions selected through the monitor including bucket vibrate and electrohydraulic (EH) Precision mode.

Buckets & Linkage

Featuring bucket and linkage designs that improve load leveling, material retention, and visibility, these loaders yield more productivity and performance than previous models.
A wide selection of enhanced production buckets with integrated spill guards, curved side cutters, and impressive rollback delivers elevated bucket-fill performance and material retention compared to earlier offerings.

Elevate Your Work

High-Lift Plus configuration provides an additional 24 inches of hinge-pin height over standard lift height and 12 inches over the High-Lift model. All three lift heights feature near-parallel lift.

Comfortable Cab

Make yourself at home in an operator station featuring more legroom, an improved HVAC system, additional storage, and a more adjustable seat than previous models.
Large seven-inch in-cab display with easy-on-the-eyes clarity enables intuitive push-button access to key info.

Same-Side Ground-Level Service

All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine for easy access.

Show More Show Less

Specifications

Specifications

Specifications

CLOSEST COMPARISON ADD MODEL

Add Model

CLOSEST COMPARISON ADD MODEL

Select Different Model

Specifications

Select up to 4 models to compare specifications

John Deere

544 P-Tier

Mid-Size Wheel Loader

Export to Excel

1 2

DRIVELINE

Engine Manufacturer	John Deere
Engine Model	PowerTech PVS 6068
Emission Rating	Tier 4 / Stage V
Displacement, ltr (Inches³)	6.8 (414)
Rated Speed, rpm	1700
Engine Output - Net, kW (hp)	123 (166)
Torque, Nm (lbf / ft)	740 (546)
Torque Rise, %	47
Transmission Type	Powershift
Front Differential Type	Locking
Rear Differential Type	Open
Tire size - Standard	20.5 R25
Service Brake - Type	Wet Disc
Service Brake - Location	All Wheels
Service Brake - Actuation	Hydraulic
Parking Brake - Type	Wet Multi Disc

DIMENSIONS

Height - Over Cab, mm (ft/in)	3330 (10 ft 11 in)
Wheelbase, mm (ft/in)	2930 (9 ft 7 in)
Length - Including Bucket, mm (ft/in)	7490 (24 ft 7 in)
Ground clearance, mm (inches)	400 (15.7)
Width Over tires - Std, mm (ft/in)	2546 (8 ft 4 in)
Height - Pivot Pin, mm (ft/in)	3890 (12 ft 9 in)
Reach - At 2130mm 45° Dump, mm (ft/in)	1510 (4 ft 11 in)
Turning Circle - Maximum, mm (ft/in)	11580 (38 ft )

CAPACITIES

Fuel Tank, ltr (gallons (US))	298 (79)
Hydraulic Tank, ltr (gallons (US))	82.1 (21.7)
Axle - Front, ltr (gallons (US))	16.6 (4.375)
Axle - Rear, ltr (gallons (US))	18 (4.75)
Transmission, ltr (gallons (US))	21 (5.55)
Heaped Capacity, m³ (yd³)	2.3 (3)
Smallest bucket capacity, m³ (yd³)	2.3 (3)
Largest bucket capacity, m³ (yd³)	2.5 (3.25)
Breakout - Bucket , kgf (lbf)	13166 (29026)
Ride Control System	Optional
System Voltage, V	24
Alternator Output, Amp	100
Pump Type	Piston
Pump Flow - 1, lt/min (gallons (US) / min)	220 (58)
System Pressure, bar (PSI)	251.66 (3650)

WEIGHTS

Operating Weight, kg (lbs)	13844 (30520)
