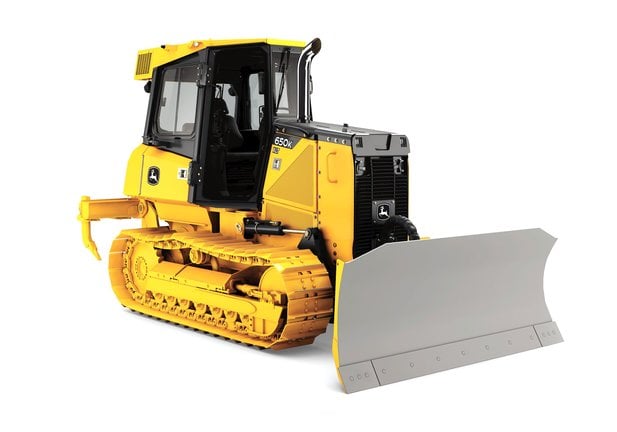

650K Crawler Dozer

EPA Final Tier 4 (FT4)/EU Stage IV diesel meets emission regulations without loss of power or torque. Four-valve head delivers increased intake-air and exhaust-gas flow for each wet-sleeve cylinder, for long-lasting performance.

Standard Eco mode maximizes fuel usage by up to 20 percent compared to conventional torque-converter transmissions, automatically adjusting engine rpm and powertrain settings based on load, without loss of performance.

When you order your dozer with electrohydraulic (EH) controls, it’s grade-control ready, giving you the ability to add the grade-control system of your choice. Options such as Slope Control and SmartGrade provide in-depth factory integration and are supported by your John Deere dealer.

Optional Slope Control system provides simple-to-use grade control that allows operators to set a desired slope and hold grade through changes in existing terrain. It helps both new and veteran operators hold grade with less effort and without needing an external elevation reference.

Unlike traditional masted aftermarket grade-control systems that can be prone to theft, damage, and complicated installation, the purpose-built John Deere 650K SmartGrade Dozer combines powerful mastless technology with our track load-sensing system. This highly productive crawler features a fully integrated grade-control system that’s easy to set up and run. And it’s backed by the Deere dealer network.

Cab-forward design allows a commanding view behind, below, and beyond the blade. Side and rear visibility from inside the cab is open to the surrounding jobsite.

Sealed-switch module (SSM) allows low-effort control of keyless start and enables exclusive features such as turbocharger cool-down, auto shutdown, and Eco mode.

Total Machine Control enables an operator to customize control of decelerator mode and response, forward/reverse ground speed, steering modulation, and forward/reverse speed ratios, and even record machine usage.

Serviceability improvements over previous models include new composite fuel tank, redesigned diagnostic lines with pressure sensors, and John Deere transmission control unit software.

Infinitely variable range to 9.7 km/h (6.0 mph) gives total flexibility to match ground speed to the load.

Transmission temperature is constantly monitored to protect the hydrostatic system. If temps get too hot or too cold, a warning light illuminates, and transmission and engine speed are automatically derated to prevent system damage.

Counter-rotation boosts productivity by enabling an operator to overcome heavy corner loads and quickly reposition the blade on the go. Provides space-saving spot turns, too.
