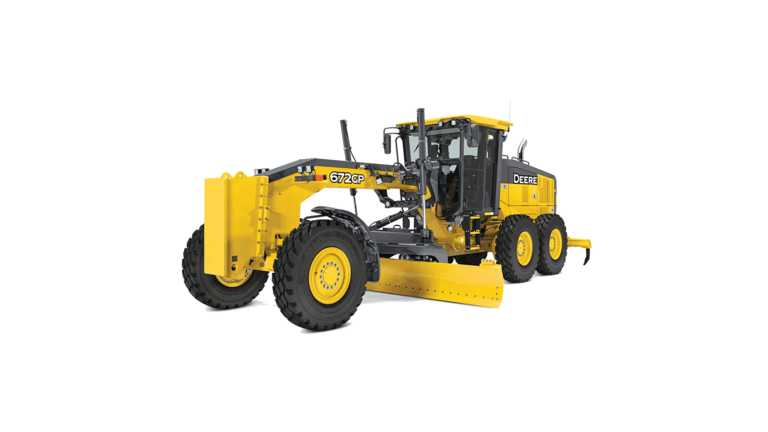

672G/GP Motor Grader

Features

New John Deere automation features designed to move you ahead in a big way include Machine-Damage Avoidance, Machine Presets, Auto-Articulation, Auto-Gain for Cross Slope, and Auto-Pass (available on Grade Pro [GP] models).
Auto-Shift PLUS simplifies operation of both GP and G-Series, for machine operation without using the inching pedal.

John Deere SmartGrade Motor Graders are fully integrated and calibrated from the factory, arriving at your jobsite ready to work.
Integration into the SmartGrade cabin and structures helps shield key grade-control components such as wire harnesses and sensors from damage and theft.

Eight armrest-mounted, fingertip-actuated controls on Grade Pro (GP) models are arranged in the industry-standard pattern on each side of the standard steering wheel.
Optional dual-joystick controls on GP models require significantly less wrist motion to articulate the motor grader than competitive joystick controls.
Our G-Series models offer conventional lever-operated controls.

When engaged, Eco mode reduces engine rpm in gears 1–5, optimizing fuel usage and decreasing operating costs by up to 10 percent.
Auto shutdown turns off the engine after an operator-determined period of time. Saves fuel and reduces wear on engine, transmission, and hydraulic components.

Featuring a fully sealed bearing and pinion that run smoother and quieter, the industry-leading design of the optional premium circle reduces operating costs while delivering 40-percent more torque and 15-percent more speed than a traditional circle. Contractors no longer have to compensate for wear in the circle, improving accuracy when using a grade-control system — especially impactful when coupled with the innovative John Deere SmartGrade™ system. And greasing intervals of only four zerks every 500 hours make the premium circle essentially maintenance free.
Horsepower and torque are optimized for each gear to maximize performance no matter your application.
Equip six-wheel drive models with Precision mode for maximum productivity in all soil conditions. Six-wheel drive is adjustable on the fly.

The job-proven dual-path hydrostatic drive boosts productivity in all kinds of conditions by putting the machine's entire weight and all six tires to work.

Specifications

Specs & Compare

CLOSEST COMPARISON ADD MODEL

CLOSEST COMPARISON ADD MODEL

Specs & Compare

Select up to 4 models to compare specifications

John Deere

672G/GP

Motor Grader

1 2

Overall Length, mm (ft/in)	8890 (29 ft 2 in)
Height Over ROPS, mm (ft/in)	3180 (10 ft 5 in)
Transport Width, mm (inches)	2490 (98)
Wheelbase, mm (ft/in)	6160 (20 ft 3 in)
Bladebase, mm (ft/in)	2570 (8 ft 5 in)
Moldboard Sideshift - Right, mm (inches)	683 (26.9)
Moldboard Sideshift - Left, mm (inches)	683 (26.9)
Shoulder Reach - Right, mm (ft/in)	2083 (6 ft 10 in)
Shoulder Reach - Left, mm (ft/in)	2083 (6 ft 10 in)
Circle Rotation, Degrees	360
Turning Radius - Minimum, m (ft/in)	7.21 (23 ft 8 in)
Frame Articulation, ± Degrees	22

Operating Weight, kg (lbs)	17140 (37788)
Weight With Push Block & Ripper, kg (lbs)	20000 (44092)
Operating Weight - Maximum, kg (lbs)	24948 (55000)
