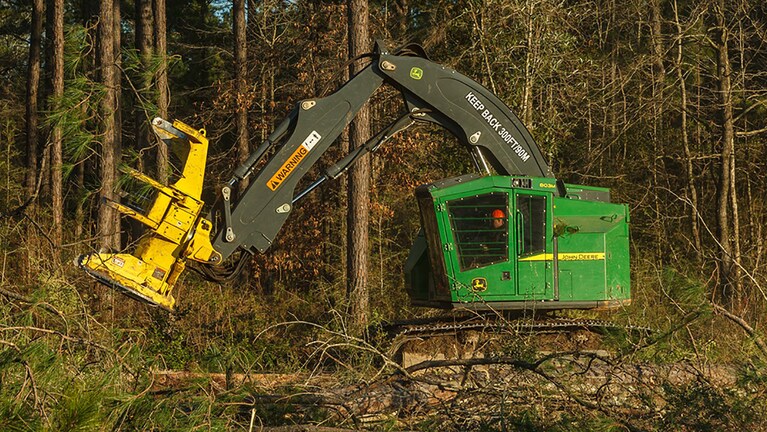

803M Tracked Feller Buncher
- Peak Power: 224 kW (300 hp) @ 1,900 rpm
- Max. Boom Reach: 8.49 m (27 ft. 10 in.)
- Tractive Effort: 245 kN (55,040 lbf)
Specifications
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 803M Tracked Feller Buncher |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 9.0L | |||
| Rated Speed, rpm | 2000 | |||
| Engine Output, kW (hp) | 213 (285) | |||
| Engine Output - Net, kW (hp) | 213 (285) | |||
| Engine Torque, Nm (lbf / ft) | 1270 (937) | |||
| Carrier Rollers - Each Side | 2 | |||
| Track Rollers - Each Side | 9 | |||
| Track Shoe Width, mm (inches) | 610 (24) |
DIMENSIONS
| Base Carrier Length, m (ft/in) | 4.61 (15 ft 1 in) | |||
|---|---|---|---|---|
| Height Over Cab, mm (ft/in) | 3430 (11 ft 3 in) | |||
| Overall Width, mm (ft/in) | 3280 (10 ft 9 in) | |||
| Tail Overhang - Over Side, mm (ft/in) | 300 (11 in) | |||
| Track Length On Ground, mm (ft/in) | 3570 (11 ft 9 in) | |||
| Tailswing Radius, mm (ft/in) | 1940 (6 ft 4 in) | |||
| Ground Clearance, mm (inches) | 744 (29) | |||
| Superstructure Width, mm (ft/in) | 3150 (10 ft 4 in) | |||
| Track Gauge, mm (ft/in) | 2670 (8 ft 9 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 870 (230) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 122 (32) | |||
| Alternator Output, Amp | 200 |
PERFORMANCE
| Travel Speed, kph (mph) | 4.6 (2.9) | |||
|---|---|---|---|---|
| Tractive Force, kN (lbf) | 245 (55078) | |||
| Lift Capacity - Maximum Reach, kg (lbs) | 4400 (9700) | |||
| Reference Harvesting Head | FS20 | |||
| Felling Diameter, mm (inches) | 559 (22) | |||
| Reference Head Saw Type | Disc | |||
| Reference Head Type | Felling | |||
| Cutting Radius - Maximum, mm (ft/in) | 8490 (27 ft 10 in) | |||
| Cutting Radius - Minimum, mm (ft/in) | 3830 (12 ft 7 in) | |||
| Cutting Swath Horizontal, mm (ft/in) | 4660 (15 ft 3 in) | |||
| System Voltage, V | 24 | |||
| Pump Type | Variable Displacement Axial Piston | |||
| Pump Flow, lt/min (gallons (US) / min) | 494 (131) |
WEIGHTS
| Operating Weight, kg (lbs) | 29030 (64010) |
|---|
