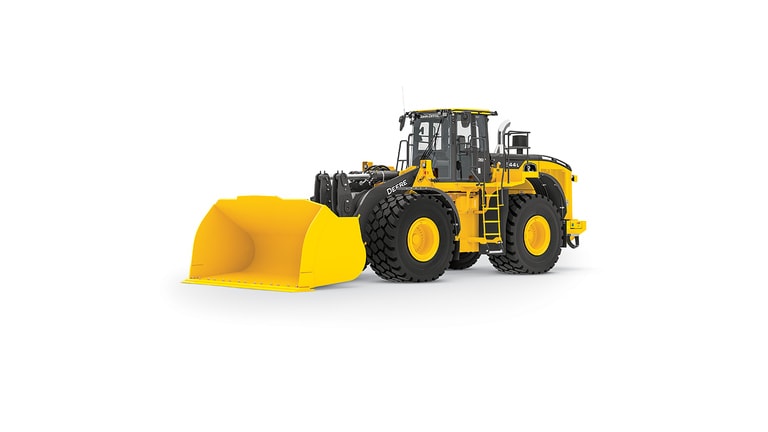

844L Aggregate Handler Wheel Loader
- Net Power: 320 kW (429 hp) at 1,400 rpm
- Bucket Capacity: 7.1–7.5 m3 (9.3–9.8 cu. yd.)
- Operating Weight: 36 310–36 432 kg (80,050–80,318 lb.)
Specifications
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 844L Aggregate Handler Wheel Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 6135 | |||
| Emission Rating | Tier 4 / Stage V | |||
| Displacement, ltr (Inches³) | 13.5 (824) | |||
| Rated Speed, rpm | 1400 | |||
| Engine Output - Net, kW (hp) | 320 (429) | |||
| Torque, Nm (lbf / ft) | 2184 (1611) | |||
| Transmission Type | Powershift | |||
| Front Differential Type | Open | |||
| Rear Differential Type | Open | |||
| Tire size - Standard | 875 / 65 R29 | |||
| Service Brake - Type | Wet Multi Disc | |||
| Service Brake - Location | Axle Outboard | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Wet Multi Disc |
DIMENSIONS
| Height - Over Cab, mm (ft/in) | 3730 (12 ft 3 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 3700 (12 ft 2 in) | |||
| Length - Including Bucket, mm (ft/in) | 10000 (32 ft 10 in) | |||
| Ground clearance, mm (inches) | 463 (18.2) | |||
| Width Over tires - Std, mm (ft/in) | 3408 (11 ft 2 in) | |||
| Height - Pivot Pin, mm (ft/in) | 4600 (15 ft 1 in) | |||
| Reach - At 2130mm 45° Dump, mm (ft/in) | 2410 (7 ft 11 in) | |||
| Turning Circle - Maximum, mm (ft/in) | 15390 (50 ft 6 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 534 (141) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 181.7 (48) | |||
| Axle - Front, ltr (gallons (US)) | 68 (18) | |||
| Axle - Rear, ltr (gallons (US)) | 68 (18) | |||
| Transmission, ltr (gallons (US)) | 28 (7.375) | |||
| Heaped Capacity, m³ (yd³) | 7.1 (9.3) | |||
| Smallest bucket capacity, m³ (yd³) | 7.1 (9.3) | |||
| Largest bucket capacity, m³ (yd³) | 7.5 (9.8) | |||
| Breakout - Bucket , kgf (lbf) | 25308 (55795) | |||
| Ride Control System | Yes | |||
| System Voltage, V | 24 | |||
| Alternator Output, Amp | 150 | |||
| Pump Type | Piston | |||
| Pump Flow - 1, lt/min (gallons (US) / min) | 570 (150.5) | |||
| System Pressure, bar (PSI) | 249 (3611) |
WEIGHTS
| Operating Weight, kg (lbs) | 36310 (80050) |
|---|
