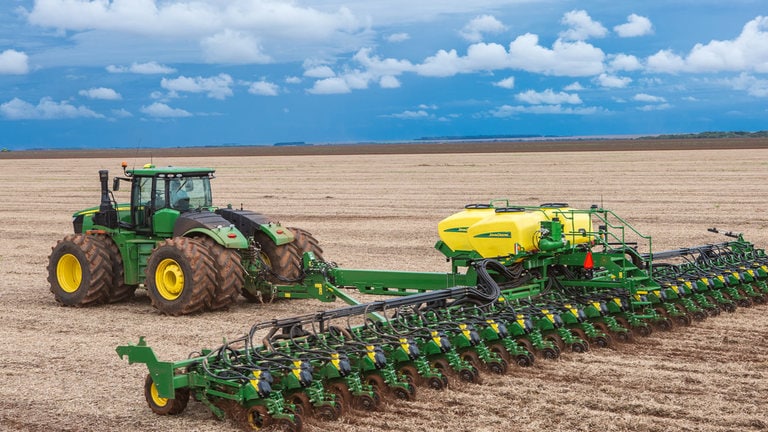

9520R Tractor

The John Deere exhaust filter is integrated into the engine design and electronics to provide a seamless operator experience. The engine control unit (ECU) and exhaust temperature management (ETM) system work together to continuously regenerate the exhaust filter using a natural cleaning process sometimes referred to as passive regeneration.



If natural filter cleaning cannot be achieved based on temperature, load, and speed, then particulate matter (PM) must be removed using an automatic cleaning process sometimes referred to as active regeneration. In most cases, filter cleaning does not impact machine operation or require operator involvement. Higher pressures created by our Final Tier 4 (FT4)/Stage IV high-pressure fuel system extend intervals between automatic cleanings.

How EGR works

EGR reduces the high temperatures where nitrogen oxide (NOx) compounds are formed in the engine cylinders by replacing excess oxygen with a prescribed amount of cooled exhaust gas.



Exhaust gases contain more carbon dioxide than oxygen. The EGR valve, in conjunction with the venturi and ECU, allows a controlled amount of exhaust gas to enter the intake manifold to mix with the incoming fresh air. Replacing excess oxygen with cooled exhaust gas leads to lower combustion temperatures, creating less NOx. In addition, EGR allows for advanced timing, leading to optimal performance of the engine, maximizing fuel economy.



Flow of exhaust during engine operation

Exhaust airflow enters into the EGR cooler from the exhaust manifold near the turbocharger.



Based on engine load, air temperatures, and rpm, the ECU opens or closes the EGR valve, allowing a measured percentage of exhaust gas to enter the intake manifold.



The gases mix with the rest of the incoming air from the turbocharger and aftercooler before entering the cylinders.



The following diagrams illustrate how air flows through the engine (PSS).



For added performance and efficiency, the engine passes the exhaust gases through an EGR cooler before it enters the engine.

PSS 9.0L and 13.5L FT4 technology

The standard CommandView III cab offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

Features:

• ComfortCommand™ seat with air suspension, lumbar support, swivel, fore-aft and lateral attenuation, backrest angle adjustment, adjustable left-hand armrest, and 40-degree right-hand seat swivel
• Operator presence system that warns if the operator is out of the seat while operating key functions
• Folding instructional seat
• CommandARM™ control center with integrated controls
• 4100 or 4600 Generation 4 CommandCenter™ processor
• Behind-the-seat storage
• Left-hand storage compartment
• Passive noise reduction system
• Service ADVISOR™ diagnostic system data port
• Tilt/telescoping steering wheel with position memory
• Swing-out rear window, opens 30 degrees
• Right- and left-outside mirrors (manually adjustable mirror head)
• Monitor mounts on right-hand front post and rear cab post
• Standard radio package, including AM/FM stereo and weatherband with remote controls, auxiliary input jack, four speakers, and an external antenna
• Laminated glass
• Air conditioner and heater with automatic temperature controls (ATC)
• Two 12-V convenience outlet (cigarette lighter style)
• One 12-V 3-pin outlet with adapter (provides switched and unswitched power)
• One International Organization for Standardization (ISO) nine-pin connector
• Power strip with convenience plug adapter
• Hitch control lever lock and selective control lever lock
• Two-speed and intermittent front and rear wiper with washer
• Front pull-down sunshade
• Digital cornerpost display with:
  • Fuel level gauge, including low fuel warning
  • Temperature gauge
  • Diesel exhaust fluid (DEF) gauge, including low DEF warning
  • Engine rpm
  • Transmission commanded gear or speed
  • Vehicle system functions, such as iTEC™ end-row guidance, that are operating
• Inside-mounted rearview mirror
• Beverage holders sized to accommodate various containers
• Interior left-hand dome light

ComfortCommand seat

ComfortCommand seat improves ride quality and helps to reduce operator fatigue

Features include:

• Armrests, lumbar support, and backrest angle are easily adjusted to match operator preference.
• Shock absorbers dampen the motion effect of the tractor for an improved ride.
• Seat height adjustments are conveniently located on the left armrest.
• Fore-aft adjustment is easy to reach located on the left front of the seat.
• Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or eight degrees to the left of the center position.
• Operator presence switch warns if the operator is out of the seat while operating key functions.
• Seat belt retractor.
• Centered cab seat, providing excellent over-shoulder visibility.
• Adjustable shock absorber permitting ride adjustment from soft to firm to match the operator's desired comfort level.
• Removable cushions for easy cleaning.

CommandARM

John Deere 9 Family Tractors feature the CommandARM with integrated Generation 4 CommandCenter display. The control layout of the CommandARM utilizes a clean and efficient design which groups controls by function and builds upon John Deere’s history of intuitive and ergonomic control placement and operation. The design of the CommandARM allows for a 40-degree right seat swivel and adjustable positioning matching the operator’s preference.

Controls located on the CommandARM include:

• Engine throttle
• Transmission control for e18™ transmission speed PowerShift™ transmission
• Eco mode (minimum engine speed) for e18 speed PowerShift transmission
• FieldCruise™ engine controls
• Selective control valve (SCV) controls
• AutoLoad™ controls (if equipped)
• Differential lock on/off and automatic
• iTEC™ sequence switches
• AutoTrac™ assisted steering system resume switch (if equipped)
• Radio
• Beacon light on/off
• Hazard lights on/off
• Field lights 1/2
• Heating, ventilation, air-conditioning (HVAC) system

Hydraulic controls

Hydraulic controls utilize fingertip paddle pots for raise/lower and extend/retract functions.

Throttle

The throttle design incorporates buttons which control FieldCruise speed, and transmission eco settings.

Tractor function controls

Located just to the right of the throttle is the Auto-Trac activation button and four sequence controls for iTEC functions. Behind the iTEC sequence controls there are buttons which control the activation and deactivation of differential lock. Differential lock can also be activated by the foot switch on the cab floor.

Controls for radio, lights, rotary beacon (if equipped), hazard flashers, and HVAC system are located to the center-right on the CommandARM, along with power take-off (PTO) for rear PTO.

Seat swivel

The design of the CommandARM allows for up to 40 degrees of right-hand seat swivel.

CommandCenter

The Generation 4 CommandCenters features fast adjustment of tractor functions and controls and are integrated into the CommandARM to create a seamless control center.



The following functions can be adjusted and accessed using the CommandCenter display:

• Hydraulic settings
• Hitch settings
• Transmission settings
• FieldCruise
• iTEC programming functions
• Radio
• Lights
• Add all functionality – diagnostics, display settings, etc.

The Generation 4 CommandCenter systems have the capability of Remote Display Access (RDA). RDA allows improved communication between an offsite farm manager or dealer and the equipment operator. The user can view exactly what the operator sees on the GreenStar™ 3 2630 Display and Generation 4 CommandCenter from almost any internet-connected device. RDA is available on the 4600 and 4100 CommandCenter and allows for an increase in productivity with quicker problem resolution. By using RDA, the cost of operation will decrease due to reduced labor and travel costs, and maximum efficiency will increase profit.

The e18 transmission delivers smooth shifting and intuitive controls in a reliable 18-speed PowerShift transmission. The e18 transmission with enhanced Efficiency Manager is standard equipment on all 9 Family Tractors.

The e18 has evolved from more than 50 years of John Deere PowerShift technology. With more automatic features, the e18 is easy to operate for all levels of operators and operations. It features three modes of operation, full AUTO, custom, and manual modes. Full AUTO and custom modes manage the engine and transmission to match the desired ground speed to the field conditions. These two modes are ideal for most conditions and take the guess work out of operation. Manual mode is perfect for operators looking to operate the e18 like a traditional PowerShift by bump shifting and managing the engine throttle to their liking.

As the next generation of PowerShift technology, the e18 delivers the strength to handle sudden, high-torque power loads while maintaining responsive, quick, and smooth shifts.

e18 controls

CommandCenter™ controls

The CommandCenter is the central information system for tractors and allows the operator to program various settings tailored to a specific operation.

To access the tractor’s transmission settings, press the transmission shortcut button on the CommandCenter shortcut bar.

Operating modes

The e18 application settings employ three modes to take full advantage of the engine-transmission communication: Full AUTO mode, custom mode, and manual mode.

Full AUTO mode

Full AUTO mode manages the tractor’s engine and transmission inputs to reach and maintain the desired ground speed set by the operator. This means the tractor will manage shifts and engine rpm to operate at the most efficient level possible. Operators have the ability to set the maximum forward and reverse speeds for their particular applications. In full AUTO mode the operator can adjust the desired ground speed in two ways, by conducting a traditional bump shift or by rotating the dial on the thumb wheel.

When shifting in full AUTO mode, the transmission shifts set speeds and does not always shift gears, meaning the transmission may not necessarily shift gears if it can reach the desired ground speed with a slightly higher or lower engine rpm. Efficiency Manager is automatically engaged while operating in full AUTO mode. As a result, shifting will not take the tractor out of Efficiency Manager in full AUTO mode.

Custom mode

Custom mode operates similar to full AUTO mode but allows operators to adjust operating parameters to meet a specific operation. It also has the ability to activate eco mode for a higher level of operation.

Eco allows two minimum engine speeds to be set. Operators can turn eco on and off by either pushing the eco button on the side of the throttle or by selecting eco in the transmission settings page of the CommandCenter controls. For example, operators may choose to turn eco on during transport to utilize a lower minimum engine speed and then turn eco off while operating in the field where a higher minimum engine speed is desired.

In the advanced settings page, operators can customize the auto shift engine speed droop as a percentage of the full engine speed. In addition, the load anticipation feature can be enabled for the hitch engagement, hydraulic engagement, or both.

Manual mode
Manual mode operates very similarly to a traditional PowerShift transmission with Efficiency Manager.
In manual mode the operator manages the engine and transmission inputs by controlling the shift lever and hand throttle.

Efficiency Manager

Efficiency Manager is automatically enabled in auto and custom modes. Efficiency Manager can be turned on in manual mode by selecting the set speed one or set speed two button on the CommandARM™ console. The set speed adjuster on the top of the single-lever gear selector allows the operator to dial in the desired ground speed to establish set speed one or two. Once engaged, Efficiency Manager will manage the engine rpm and gear selection to maintain the desired working speed. To reach the desired set speed, the throttle must be set to full engine rpm.

e18 operation

Setting start-up gears

The 9 Family Tractors default to 7F and 2R at start up. However, these default start-up gears can be adjusted from 1-13F and 1-3R through the CommandCenter. Refer to the operator’s manual for additional information.

9R Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9R table

	Group 47 tires		Group 48 tires
Tire size	(480R46, 20.8R42, 520R42, 620R42, 710R38)		(480R50, 520R46, 620R46, 710R42, 800R38)
Engine (rpm)	2100		2100
18-speed gear	km/h	mph	km/h	mph
Forward gears
F1	4.0	2.5	4.2	2.6
F2	4.8	3.0	5.0	3.1
F3	5.3	3.3	5.6	3.5
F4	5.9	3.7	6.2	3.9
F5	6.5	4.0	6.8	4.3
F6	7.3	4.5	7.6	4.8
F7	8.0	5.0	8.5	5.3
F8	9.0	5.6	9.5	5.9
F9	9.9	6.1	10.4	6.5
F10	11.0	6.9	11.6	7.2
F11	12.2	7.6	12.9	8.0
F12	13.5	8.4	14.2	8.8
F13	15.0	9.3	15.8	9.8
F14	16.6	10.3	17.5	10.9
F15	20.5	12.8	21.6	13.4
F16	25.3	15.7	26.6	16.5
F17	31.2	19.4	32.9	20.4
F18	38.5	23.9	40.5	25.2
Reverse gears
R1	3.9	2.4	4.1	2.5
R2	5.3	3.3	5.6	3.5
R3	5.9	3.7	6.2	3.9
R4	8.0	5.0	8.5	5.3
R5	9.0	5.6	9.5	5.9
R6	12.2	7.6	12.9	8.0



Group 47 tire based on 710/70R38

Group 48 tire based on 800/80R38

9RT and 9RX Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9RT and 9RX table

	9RT		9RX
Engine (rpm)	2100		2100
18-speed gear	km/h	mph	km/h	mph
Forward gears
F1	4.0	2.5	4.0	2.5
F2	5.0	3.1	4.9	3.0
F3	5.5	3.4	5.5	3.4
F4	6.1	3.8	6.1	3.8
F5	6.8	4.2	6.7	4.2
F6	7.6	4.7	7.5	4.7
F7	8.4	5.2	8.3	5.2
F8	9.3	5.8	9.2	5.7
F9	10.3	6.4	10.2	6.3
F10	11.4	7.1	11.4	7.1
F11	12.6	7.8	12.6	7.8
F12	14.1	8.7	14.0	8.7
F13	15.6	9.7	15.5	9.6
F14	17.3	10.7	17.2	10.3
F15	21.4	13.3	21.3	13.2
F16	26.3	16.3	26.2	16.3
F17	32.3	20.1	32.2	20.0
F18	39.8	24.7	39.6	24.6
Reverse gears
R1	4.0	2.5	4.0	2.5
R2	5.5	3.4	5.5	3.4
R3	6.1	3.3	6.1	3.8
R4	7.3	3.8	8.3	5.2
R5	9.3	5.8	9.2	5.7
R6	12.6	7.8	12.6	10.3

JDLink

JDLink is the John Deere telematics system designed for operators and managers who desire to take their operations to the next level of productivity and efficiency without leaving the office. Whether it is receiving an e-mail or text message, users can manage the operation in real-time without being in the cab. Using the power of JDLink can optimize productivity, increase uptime, and boost profits with JDLink information all accessible from a laptop, desktop, or mobile device.

JDLink Ultimate provides enhanced machine performance and utilization information that can only be achieved through direct communication with on-board machine controllers. Utilizing John Deere-exclusive telematics technology, users can remotely link to Ultimate-compatible machines to achieve a new level of optimization.

NOTE: Mobile device compatibility and functionality varies.

Monitor assets, performance, and more with JDLink:

• Increase uptime and reduce time spent managing equipment with JDLink Ultimate
• Coordinate machine and labor logistics
• Unleash new possibilities with wireless machine connectivity
• Locate machines on-the-go with the JDLink app for iPhone®, iPad® or Android™ devices
• Leverage common components from the JDLink system to enable remote support and machine monitoring
• Industry-exclusive Service ADVISOR Remote with JDLink (Canada link)

For more information on JDLink activations and subscriptions, visit www.StellarSupport.com.

NOTE: JDLink is not available in all geographic regions.

Service ADVISOR

Service ADVISOR diagnostics greatly assist in reducing service costs and downtime. It allows the John Deere service technician to readily extract vital information about tractor malfunctions through the Service ADVISOR data port. Diagnostic codes and controller area network (CAN) bus statistics stored by the tractor and visible in the CommandCenter™ display are used by service technicians to isolate, identify, and resolve problems.

Diagnostics and CAN bus statistics are not normally used by the operator. Access and use of trouble codes should only be done by a qualified, factory-trained John Deere service technician.

Service ADVISOR Remote

Service ADVISOR Remote takes the machine connectivity of JDLink and takes it one step further. With Service ADVISOR Remote, machines can be diagnosed remotely, saving the cost of a field service call. For example, diagnostic trouble codes can be reset and software updates can be uploaded remotely.



Apple, iPhone, and iPad are trademarks of Apple Inc. Android is a trademark of Google LLC.



Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9 Family Ag Tractors.
• 4.45-cm (1-3/4-in.) diameter shaft.



9R – When the PTO is on and ground speed is 0.5km/h (0.31 mph) or less; PTO is limited to 335 hp.

9RT – When the PTO is on and ground speed is 0.5km/h (0.31 mph) or less; PTO is limited to 329 hp.
9RX – When the PTO is on and ground speed is 0.5km/h (0.31 mph) or less; PTO is limited to 335 hp.



See the specs page for model rated PTO horsepower.



The PTO shield has three positions — neutral, up, and down. Use the neutral position when the PTO is connected and ready for use. Use the up position for added clearance when connecting the PTO shaft to the tractor. The down position is used when the PTO is not connected and extra visibility to the drawbar is desired.

Electrohydraulic PTO control

The 9 Family Tractors utilizes an electrohydraulic PTO-engagement switch to activate the optional 1000-rpm PTO.



If PTO option is not installed, a storage compartment is located on the rear of the tractor.

3-point hitch

The 9 Series Tractors are designed to maximize performance for different applications. The 9R, 9RT, and 9RX Tractors offer two different hitch options:



	9420R/9420RX	9470R/9470RT/9470RX	9520R/9520RT/9520RX	9570R/9570RT/9570RX	9620R/9620RX
Category 4N/3 with quik-coupler, all axle diameters	Optional – 6804 kg (15,000 lb)		Not available
Category 4N/3 with quik-coupler, 120-mm (4.7-in.) axles required	Optional – 9072 kg (20,000 lb)		Not available
Category 4/4N with quik-coupler, all diameters axles	Optional: 6804 kg (15,000 lb)
Category 4/4N with quik-coupler, 120-mm (4.7-in.) axle required	Optional: 9072 kg (20,000 lb)

CommandARM™ controls

To help boost productivity, a field-installed kit with 3-point hitch controls can be purchased. If this option is selected, control buttons will be located on the 9 Series Tractor’s CommmandARM to access individual hitch settings. There are three buttons — set, lock, and load depth. There is also a rotary encoder that allows for finite movements of the hitch. The rotary encoder is detented, so it clicks for each movement. Additionally, hitch adjustment controls are located under the CommandARM for raise/lower rate.

Hitch load depth



The load depth feature is a useful tool designed to increase performance in tillage applications. Load depth adjustments allow the operator to make adjustments to hitch draft responsiveness.



Draft control helps maintain the operating depth in varying conditions, such as rolling terrain, and varying soil densities.



An additional feature with load depth control is the hitch slip option. Hitch slip uses wheel slip data to supplement the draft control system. If the wheels slip, the 3-point hitch lifts to allow the tractor wheels to maintain traction with the ground. Once the slip condition is no longer present, the hitch lowers to the required depth as determined by the hitch command and load depth settings.



Both of these hitch command options are easily programmable in the CommandCenter display by pressing the load depth shortcut key, followed by using the thumbwheel and confirm key to dial in the desired settings.

Hitch, external remote control switch

For added operator convenience, a 3-point hitch remote control switch is located on top of the left rear fender for 9R, 9RT, and 9RX Tractors. The external remote switches enable the operator to raise and lower the 3-point hitch from behind the tractor while hooking to implements.

Dual hydraulic pump system

Optional high-flow hydraulics are available on 9 Family Tractors by ordering code 3270. The high-flow hydraulic system provides an additional 215 L/min (57 gpm) of flow for a total of 435 L/min (115 gpm). This system is ideal for hydraulic fan motor demands. This system is recommended for agricultural implements with continuous flow requirements. When maximum hydraulic pump capacity is reached, multiple functions will continue to operate at the same proportional flow rate.

The 9 Family Ag High-Flow Tractors have two parallel hydraulic systems. The benefit of this system is that functions can be split between the two systems. Functions that require high flow and low pressure can be combined on one system (for example, air seeder fans, and planter motors). Functions that require high pressure and low-flow can be connected to the remaining system (for example, implement lift, fold, and constant down-pressure systems).

Following these guidelines allows the hydraulic system to run cooler as it prevents both hydraulic pumps from running at high pressure. In general, pumps forced to run at both high pressure and high flows generate much more heat than a pump running at a lower flow or lower pressure.

The system operates with two hydraulic pumps:

• Pump 1 - provides hydraulic flow of up to 215 L/min (58 gpm) to SCVs 1, 2, and 3. These SCVs are useful for operating lift/lower and other cylinder type hydraulic needs.
• Pump 2 - attaches in front of pump 1 and provides hydraulic flow of up to 215 L/min (57 gpm) to SCVs 4, 5, and 6. These SCVs are useful for operating hydraulic motors to drive air/fan or vacuum systems on seeding/planting equipment.
• All SCV oil returns to one common hydraulic reservoir.

Eight-section SCV stack for high-flow requirements

For applications requiring continuous high hydraulic flow or multiple 1.9-cm (3/4-in.) hydraulic connections, this SCV stack is designed to maximize efficiency of the hydraulic system while providing additional flow using 1.9-cm (3/4-in.) couplers. Arrangement of the 1.9-cm (3/4-in.) couplers are split between the tractor’s dual hydraulic pumps to even the hydraulic load on each pump. Increasing coupler size from 1.3 cm (1/2 in.) to 1.9 cm (3/4 in.) allows an additional 26.5 L/min (7 gpm) or 17 percent more hydraulic flow through each coupler and reduces backpressure for hydraulic functions such as dual fan motors associated with the Air Power™ 2 system equipped on John Deere C850 Air Carts. With three 1.9-cm (3/4-in.) couplers available, operators can connect to other high-demand functions such as raise/lower. The 1.9-cm (3/4-in.) couplers also allow higher fan motor speeds for high-rate applications and allow more power to the ground due to less restriction on the hydraulic system.



NOTE: This SCV configuration is available on all double-reduction) axle 9420R to 9570R Tractors with high-flow hydraulics and all 9RX Tractors with high-flow hydraulics. This eight-section SCV stack does not include hydraulic Intelligent Power Management (IPM) software.

Connections to 1.3-cm (1/2-in.) and 1.9-cm (3/4-in.) couplers are quick and simple for operators with a split SCV stack configuration at a comfortable connection height.

Regular service and maintenance are essential to the performance, productivity, and longevity of all farm machinery.

Maximum uptime is an important element of productivity.

• 9 Series service points are quick and simple to check.
• Greater accessibility improves serviceability.

All items in the daily service schedule can be performed without the use of tools:

• Engine oil, hydraulic oil, coolant level, and water separator can be conveniently accessed from ground level without having to open the hood. Engine oil can be checked by simply removing one small engine side panel.

• Engine can be easily accessed by simply raising the one-piece hood and removing two engine side panels for more periodic maintenance checks.
• Single-point latch mechanism ensures easy hood opening and closure.



NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Refueling

The 9R Tractors fuel tank is located over the rear axle. The fuel tank features a dual fill design. This design allows the machine to be filled from either side of the fuel tank. A fuel nozzle holder is located when the operator positions themselves on the gudgeon platform to fill the fuel tank.



The diesel exhaust fluid (DEF) tank is located on the left-hand side of the tractor indicated by a blue cap. It is fillable from ground level and has a protective shield to keep debris out of the fill neck.



Model	Diesel	DEF
9420R	1514 L (400 gal.)*	120 L (31.7 gal.)
9470R	1514 L (400 gal.)*	120 L (31.7 gal.)
9520R	1514 L (400 gal.)	120 L (31.7 gal.)
9570R	1514 L (400 gal.)	120 L (31.7 gal.)
9620R	1514 L (400 gal.)	120 L (31.7 gal.)

*When equipped with double-reduction axle. 1211-L (320-gal.) when equipped with single-reduction axle.

The 9RT fuel tank is located behind the cab; the fuel fill is located conveniently on the left-hand main platform.



The 9RT Tractors all feature a DEF tank capacity of 93.9 L (24.8 gal.). The fill location is near the diesel fill location.



Model	Diesel	DEF
9470RT	1325 L (350 gal.)	93.9 L (24.8 gal.)
9520RT	1325 L (350 gal.)	93.9 L (24.8 gal.)
9570RT	1325 L (350 gal.)	93.9 L (24.8 gal.)

Model	Diesel	DEF
9470RX	1514 L (400 gal.)	120 L (31.7 gal.)
9520RX	1514 L (400 gal.)	120 L (31.7 gal.)
9570RX	1514 L (400 gal.)	120 L (31.7 gal.)
9620RX	1514 L (400 gal.)	120 L (31.7 gal.)

NOTE:

• John Deere supports the usage of bio diesel. Bio diesel should meet ASTM D6751 (US) or EN 14214 (European) fuel quality standards.
• Tractors receive fuel containing a 2 percent bio-diesel blend at the factory.
• Acceptable blend levels may vary by geographic region.
• Diesel exhaust fluid will freeze when exposed for longer than three hours to conditions below -11°C (12.2° F).

For more information about the use of bio-diesel in John Deere engines, refer to www.JohnDeere.com/biodiesel.



DEF fill

9R, 9RT, and 9RX Tractors feature an easy-to-use DEF fill system. The 9R and 9RX feature a ground-level fill location, and DEF fill on 9RT is conveniently located on the step platform.



Machine	DEF tank capacity
9R	120 L (31.7 gal.)
9RT	93.9 L (24.8 gal.)
9RX	120 L (31.7 gal.)

In-line DEF filter

9R, 9RT, and 9RX Tractors feature an in-line DEF filter to help protect the DEF pump from any contamination in the DEF tank. This in-line DEF filter is easily serviced with a drain plug to drain any remaining DEF from the filter housing and a replaceable cartridge-style filter.

Severe-duty water separator, if equipped

The severe-duty water separator can extend service intervals and helps to protect the tractor’s fuel system from damage associated with lower-quality fuel.

Simply open the drain valve on the bottom of the separator and drain accumulated water.

NOTE: Cummins® QSX 15 L (915.4-cu in.) engines cannot be equipped with a severe-duty water separator; however, the fuel filter has separating capabilities like the primary filter on John Deere Power System engines.

Engine access

The tilt hood and side panel design provides additional engine compartment protection. The 9R, 9RT, and 9RX hoods feature the same design for access to engine components.

Pull out the hood release (located on the front, left side) and tilt hood back to open. Engine side panels are quickly and easily removed for access to periodic maintenance items.

Transmission, hydraulic, and axle oil level

A sight glass for the transmission, hydraulic, and axle oil level is located at the back right side of the gudgeon, indicating proper oil levels, and an oil fill neck is located on the back right side of the gudgeon for the 9R and 9RX Tractors. The oil fill is located on the top of the common reservoir on the left side of the 9RT Tractor and a fill tube is located between the steps and engine of the tractor.

• Provides increased filter capacity compared to previous 9R and 9RT Tractors
• Transmission, hydraulic, and axle oil should be changed every 1500 hours
• Filter should be changed every 1500 hours unless filter restriction code occurs
• Daily and 10-hour inspections of the transmission hydraulic oil level are recommended

NOTE: The tractor should be off and parked on level ground with the hitch in the lowered position when checking the oil level.

• Sight glass observations will be significantly higher with hot oil temperatures and lower with cold oil or if engine has not run long enough.


NOTE: Oil level above the top mark on the sight glass can result in power loss and heat generation during transport applications.

Primary air filter access

On the 9R and 9RX, the primary engine air filter is accessible from the left-hand platform for replacement annually or as operating conditions require. The filter is aspirated and extends filter life in dusty conditions by aspirating more than 95 percent of incoming dust. Aspirator suction is created by utilizing the air flow from the cooling fan.



On the 9RT, the primary engine air filter is located at ground level on right side of tractor.

Oil change intervals

Tractors with the 9.0L (549.2-cu in.) and 13.5L (823.2-cu in.) John Deere Power Systems engines feature a 500-hour change interval when using approved John Deere Plus-50™ II oil and a John Deere oil filter.

Tractors equipped with the Cummins QSX 15-L (915.4-cu in.) engine have a 400-hour engine oil and oil filter change interval.

• Previous initial oil and filter change at 100 hours is no longer required due to the factory fill of Break-In™ Plus oil.
• If using anything other than John Deere Plus-50 II oil, a 250-hour change interval is required.  CJ-4 must still be used.
• Only use ultra-low sulfur diesel fuel and CJ-4, ACEA E9, or ACEA E6 oil.
• An oil change of 500 hours is possible when using fuel with less than 15 parts per million (ppm) of sulfur, along with John Deere Plus-50 II oil.

See the tractor's operator's manual for oil change intervals and further details.

Battery access

The 9R and 9RX battery location is behind the left-hand step assembly. There are three bolts that secure the swinging step assembly that need to be removed to completely access the batteries. The 9RT top step of the platform conceals the tractor’s three 12-V batteries with 2775 CCA (925-CCA each). Tractors with the Cummins X15 engine will have four 12-V batteries in the same location as tractors equipped with John Deere Power System engines.

Although the batteries are maintenance free, conditions such as long periods of operation at high ambient temperatures and excessive engine cranking may require adding water.

Battery boost terminal

On the 9R and 9RX, a battery boost terminal is located on the left-hand side of the engine for convenient and proper boost assisted starting.

Fuse and relay panel

The electrical fuse and relay panel is located behind the operator’s seat and just below the cab's rear window. Simply lift up on the operator manual cover for access.

• Contains easy-to-replace automotive blade-type fuses and relays for quick servicing.
• Spare fuses are provided for each amperage size used.

The diode module contains many of the diodes contained in the system:

• If a diode problem occurs, simply replace the diode module for easy service and increased uptime.
• Relays are also fully interchangeable for quick service.



Electrical system (smart load center)

The electrical system provides a full controller area network (CAN) bus based system on the tractor for improved tractor implement integration and flexibility. Incorporated with the system is a smart load center, which provides fewer fuses, fewer connectors, and simplified wiring for increased reliability.

The solid-state load center’s primary function is to control the majority of high-current loads, such as fender floodlights and the horn. This electronic circuitry will monitor loads and voltages to provide fast reaction time and the ability to alert the operator if a circuit overloads or if voltage is out of specification – for example, open circuit (undercurrent) or short circuit (overcurrent).

Cab air filters

The cab fresh air filter is conveniently located beneath the left side of the cab for all 9 Series products:

• External service means no mess in the cab from dusty filters
• Filter housing acts as a dust accumulator compartment
• Hand screw eliminates need for tools
• Replace cab fresh air filter every 1000 hours or sooner if plugged or damaged

Cab air recirculation filter



Cab air recirculation filter is located in the roof liner above the operator. 70 percent of the total air volume is recirculated with a blanket effect for enhanced operator comfort.

• Replace cab air recirculation filter every 1000 hours or sooner if plugged or damaged.

Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator’s manual and those given by the chemical manufacturer when using agricultural chemicals.

Windshield washer

The windshield washer bottle is optional on 9R and 9RX Tractors and is located on the left side of the tractor near the DEF fill point. On 9RT Tractors, it is located on the right-side frame.

Maintenance-free U-joint

Maintenance-free U-joint bearings require no servicing to reduce maintenance time.

Toolbox

A convenient toolbox is located on the left-hand side of the front frame for tool storage and comes standard on all 9R, 9RT, and 9RX Tractors.

9R and 9RX Tractors have an additional storage box conveniently located on top the left-hand platform.

The 9RT has an additional toolbox conveniently located next to the left side of the batteries for additional storage.

Cummins is a trademark of Cummins, Inc.

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.



The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.

Optional right-hand window wiper with washer fluid is available on standard and premium cabs. This option allows the operator to clean the window in dusty conditions from the comfort of the cab. The windshield wiper fluid tank is located on the operator platform near the front of the cab.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.



Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

RAM is a trademark of National Products Inc.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.



Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

RAM is a trademark of National Products Inc.

A favorite worldwide, the RAM self-leveling cup holder is now available as a kit - designed specifically for Deere equipment. It is easily installed to keep your favorite beverage upright even in the roughest terrain. The perfect accessory for any cab that has 10-mm mounting bosses.

The new cup holder features a unique self-leveling design. This pivoting design allows easy adjustment for the holder while offsetting motion of the vehicle when moving.

Features and applications:

• Self-leveling action reduces spills
• Durable design for rough environments
• Easy adjustable mounting for ideal placement
• Includes John Deere branded beverage insulator
• Compatible with most monitor brackets and all 10-mm threaded bosses

This optional cross-gate joystick replaces fingertip paddle pots for control of selective control valves (SCVs) and allows for programmable hydraulic functionality according to operator preference.

Drawbar reinforcement kits are designed to handle heavy vertical loads such as large drawn planters, grain carts, trailer tanks, and large drawn rippers. Drawbar reinforcement kits should be used when the maximum static vertical load on the drawbar exceeds 2268 kg (5000 lb). Reinforcement kits are positioned below the drawbar and can be added to Category 4 drawbars with a heavy-duty drawbar support only.



Installation of the drawbar reinforcement kit raises the maximum static vertical load to the values shown in the table below.



NOTE: Reinforcement kits cannot be added to Category 5 drawbars.

Drawbar position	Maximum static vertical load
Short drawbar position	4990 kg (11,000 lb)
Long drawbar position	4082 kg (9000 lb)



Drawbar category	Drawbar support	Drawbar position	Vertical load rating	Tractor offered on – wheels (W) / tracks (T)
Category 4	Standard	Short	5,450 lb (2472 kg)	9370R - 9470R 9470RX
		Long	5,000 lb (2268 kg)	9370R - 9470R 9470RX
Category 4	Heavy duty	Short	5,450 lb (2472 kg)	9370R - 9470R, 9470RT 9470RX
		Long	5,000 lb (2268 kg)	9370R - 9470R, 9470RT 9470RX
Category 4 with drawbar reinforcement kit	Heavy duty	Short	11,000 lb (4989 kg)	9370R - 9470R, 9470RT 9470RX
		Long	9,000 lb (4082 kg)	9370R - 9470R, 9470RT 9470RX
Category 4 heavy duty	Heavy duty	Short	11,000 lb (4989 kg)	9420R-9470R
Category 5	Heavy duty	Short	10,100 lb (4581 kg)	9420R - 9620R, 9520RT, 9570RT 9520RX - 9620RX
Category 5 wide swing	Wide swing	Short	10,100 lb (4581 kg)	9520RT, 9570RT
	Wide swing with high capacity kit	Short	12,000 lb (5443 kg)	9520RT, 9570RT



*Category 5 drawbar with heavy-duty support is used on 9R Series Wheel and Track Tractors equipped with a 3-point hitch and for 9RT Series Tractors ordered with a non-swinging drawbar.

A ball-type drawbar is used when pulling the DN345 Drawn Dry Spreader. The ball-type drawbar minimizes hitch movement during field operation. The drawbar is equipped with a specially-designed 80-mm (3.1-in.) ball, helping to eliminate any fore-aft movement that creates unwanted jerking customary with a standard hitch pin. The Category 4 ball-type drawbar is approved for transport applications and not approved for draft applications. The ball-type drawbar can be interchanged with a factory drawbar in approximately 20 minutes.



The ball type drawbar is not compatible with 9RT and 9RX Series Tractors.

Available as either a factory- or field-installed attachment, the battery disconnect switch is used to disconnect the batteries in preparation for 20-day to 90-day storage periods. The switch cuts the power to the entire tractor to aid in maintaining battery life.

An indicator light allows for safe and proper disconnect. The light will flash until it is safe to disconnect. This allows the diesel exhaust fluid (DEF) tank and lines to purge. (Final Tier 4 has an indicator light and Interim Tier 4 has no indicator light.)



Cummins is a trademark of Cummins Incorporated.

The ISO cab implement controller area network (CAN) bus adapter is available to connect any ISO compliant implement or device to an 8R, 8RT, 9R, 9RT, 9RX (including Scraper Special) Series Tractor.  These connectors are commonly used for planter frame control boxes.



Refer to the operator's manual, sections 16 (CommandCenter™) and 25 (Operator Station), for additional information on ISO implements.



NOTE: If the harness is not in use, unplug it from the ISO 11783 location or plug the 4-pin connectors together on the harness.  If neither of these are done, implement CAN communication errors will occur.

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.



In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenter^TM display or performance monitor readouts:

• Percent slip
• Hitch slip command (if equipped)

Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

• Area covered
• Area/hour
• Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.



There are several key features that have changed from previous designs.



First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.



Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.



Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.



In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.



The radar true ground speed sensor activates the following CommandCenter^TM display or performance monitor readouts:

• Percent slip
• Hitch slip command (if equipped)

Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

• Area covered
• Area/hour
• Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.

The severe-duty water separator factory-installed option or field-installed kit is available for locations where fuel quality can at times be in question. This kit will extend service intervals and help protect the tractor fuel system from damage if the fuel contains more water than the base filtering equipment can handle on a continual basis.

The 60 micron constructed of stainless-steel filter element must be backflushed whenever the bowl is half full of water. The filter can be backflushed up to five times before the filter must be removed and cleaned. Filter element must be replaced when light is no longer visible through the filter. The replacement interval will vary depending on fuel quality.

The severe-duty water separator factory-installed option or field-installed kit is available for locations where fuel quality can at times be in question. This kit will extend service intervals and help protect the tractor fuel system from damage if the fuel contains more water than the base filtering equipment can handle on a continual basis.

The 60 micron constructed of stainless-steel filter element must be backflushed whenever the bowl is half full of water. The filter can be backflushed up to five times before the filter must be removed and cleaned. Filter element must be replaced when light is no longer visible through the filter. The replacement interval will vary depending on fuel quality.

The following tractor combinations are either recommended or required to install front axle and rear support kits (see chart) based off of machine configurations.



Front frame and axle support kits



Front frame and axle support kits provide additional support to the front frame and axle joint when the tractor is used in applications that put high torque and high vertical loads on the front end of the machine. This includes front-mounted spray tanks.



9RX Series Tractors



A front frame support kit (BRE10401) is required on all 9RX Series Tractors with front-mounted spray tanks. This kit enables operators to utilize the 9RX Tractors for supplemental crop nutrition application or for utilizing a 3-point hitch mounted sprayer. The front frame supports are standard on all 9RX Scraper Tractors.



9000 and 9R Series Wheel Tractors



Tractor models	With HydraCushion™ suspension and front-mounted spray tanks	With front ballast	With front-mounted spray tanks
9370R-9470R	---	BRE10198 required	BRE10198 required
9520R-9620R	BRE10145 required	---	---
Previous models
9R Series  model year 2012 to model year 2014	---	RE341567 required	RE341567 required
9030 Series	---	RE267769 recommended	RE267769 required
9000 Series/9020 Series	---	RE213187 recommended	RE213187 required



For 9460R-9560R Scraper Tractors, please order RE341567 when using front ballast or front-mounted spray tanks.  No front support is needed on 9470R-9620R Scraper Tractors.



NOTE: All 9000 and 9R Series Tractors require additional front axle and frame support when used with front-mounted dozer blades. This support is in place of the front axle support and is supplied by the dozer blade manufacturer. Please contact the dozer blade manufacturer for additional information.



Rear axle support kits



The rear axle support provides additional support to the rear frame and axle joint when the tractor is used in applications that put high torque and high vertical loads on the back end of the machine.



9RX Series Tractors



The rear axle support (code 8042) is required when a hitch is ordered on any 9RX Series Tractors; it is optional without a hitch. Rear axle supports are standard on all 9RX Series Scraper Tractors.



9000 and 9R Series Wheel Tractors



Tractor models	High vertical load or heavy draft applications	With order code 8000 (heavy-duty frame)	With 6940-kg (15,000-lb) hitch option, code 4050 or 4051	With 9072-kg (20,000-lb) hitch option, code 4052 or 4053
9370R-9470R	RE268085 recommended	RE268085 recommended	RE268085 recommended	RE268085 required
9520R-9620R*	---	---	---	---
Previous models
9R Series model year 2012 to model year 2014	RE268085 recommended	RE268085 recommended	RE268085 recommended	RE268085 required
9030 Series	RE268085 recommended	RE268085 recommended	RE268085 recommended	---



*The rear axle support is not available on 9520R – 9620R Tractors because the double reduction axle design already provides this level of support.



Mounting of dozer blades:



The mounting of dozer blades is approved on 9R Series and 9RX Series Tractors with 76.2-cm and 91.4-cm (30-in. and 36-in.) tracks. The mounting of dozer blades is not approved on 9RT Series Tractors and 9RX Series Tractors with 45.7-cm and 61-cm (18-in. and 24-in.) tracks.

• For all 9R Series and 9RX Series Tractors with 76.2-cm and 91.4-cm (30-in. and 36-in.) tracks, additional frame supports supplied by the dozer manufacturer are required.
• Follow manufacturer guidelines for mounting dozer blade components to the frame of the tractor.

NOTE: 9R Series and 9RX Series Tractors with 76.2-cm and 91.4-cm (30-in. and 36-in.) tracks are approved for typical agricultural applications, such as packing silage, pushing snow, and non-commercial dirt moving blade work. 9RX Series Tractors with 45.7-cm and 61-cm (18-in. and 24-in.) tracks are not approved for front blade work.

The front frame weight bracket kit allows the tractor to be ballasted with up to 20 37 kg (104 lb) suitcase weights (R127764) for wheel tractors and up to 26 37 kg (104 lb) suitcase weights (R127764) for track tractors on the front frame.



The front weight frame and 20 37-kg (104 lb) weights are recommended on scraper designated tractors with flotation tires or when more front weight split is required.



IMPORTANT: Do not exceed 22,680 kg (50,000 lb) when ballasting 9030T Series Track Tractors.

Weight transfer to front axle and reduction to rear axle weight
	Front axle	Rear axle
Front weight frame	+272.2 kg (600 lb)	-61.2 (135 lb)
20 weights and support	+1714.6 kg (3780 lb)	-739.4 kg (1630 lb)
Total	+1986.7 kg (4380 lb)	-800.6 kg (1765 lb)



It is recommend that the front axle reinforcement kit be installed on all tractors equipped with any type of front ballast.



IMPORTANT: The front frame weight bracket is not intended to be used for pushing other tractors or implements and should not be used for securing chains or cables as tow points.

The front ballast bracket is optional from the factory using order code 8955. In some applications and conditions, it is beneficial to add additional front ballast to offset loads and/or gain additional traction. This kit creates provision to add up to 36 suitcase weights (R127764).



Adding weight to the front of the machine may also require the installation of front axle reinforcement kit factory order code 8041, or field installed BRE10198.



On machines equipped with tow cables, this kit may interfere and require adjustment or additional parts for the tow cable to mount correctly to the front of the machine. Reference the part catalog for additional information.

Noncurrent attachment

Note: This is a noncurrent kit. The information provided is valid for each tractor as of the last date that tractor was in production.



Quik-Tatch weights are used to better ballast tractors for both field and loader applications.





Applies to tractor models:

• Maximum of 4 weights on 2040, 6 weights on 2240, and 8 weights on 2440 and 2640 Tractors.
• Maximum of 10 weights per tractor on 2840, 2940, 3150, 4030, 4040, 4230, 4240, 4430, and 4630 Tractors.
• Maximum of 6 weights on 2355N; 8 weights on 2555 Low-Profile, 2755 Low-Profile, and 2855N.
• Maximum of 4 weights on 2155, 6 weights on 2355, and 8 weights on 2555 and 2755 Tractors.
• Maximum of 10 weights on 2955 and 12 weights on 2955 Tractors equipped with high lift capacity.
• Maximum of 14 weights on 4440 Tractors.
• Maximum of 20 weights on 4640 and 4840 Tractors.
• Maximum of 14 weights on 4055 and 20 weights on 4255 and 4455 Tractors.
• Maximum of 20 weights on 4555, 4560, 4755, 4760, 4955 and 4960 Tractors.
• Weights only for 7200, 7400,7600, 7700 and 7800 Tractors.
• Weight support only for 7600 (SN -7754), 7700 (SN -9088), 7800 (SN -14027) Tractors.  For all 7200 and 7400 Tractors and 7600 MFWD (SN7755- ), 7700 MFWD (SN9089- ), and 7800 MFWD (SN14028- ): R129660 shown.

For implements that require high hydraulic flow, 19-mm (3/4-in.) couplers are available in two configurations.



A single 19-mm (3/4-in.) selective control valve (SCV) coupler is available as a field-installed attachment for dual-pump, 435-L/min (115-gpm) hydraulic systems.

Hydraulic Intelligent Power Management (IPM) with three 19-mm (3/4-in.) and five 12.7-mm (1/2-in.) SCV couplers are available as a factory- or field-installed attachment on 9620R and 9620RX Tractors equipped with dual-pump, 435-L/min (115-gpm) hydraulic systems.

1.3-cm (½-in.) coupler options

Additional 140-L/min (37-gpm) standard flow  SCVs with 1.3-cm (1/2-in.) couplers can be field-installed for those who need to control additional hydraulic functions. Kits include ISO lever-assisted breakaway couplers and armrest control lever.



Reference the table below for kit options to add a fifth, sixth, or seventh and eighth SCV.

1.9-cm (¾-in.) coupler options

1.9-cm (¾-in.) SCV coupler kit

For greater versatility, producers can replace one 140-L/min (37-gpm) standard flow SCV and 1.3-cm (½-in.) coupler with this 159-L/min (42-gpm) high-flow SCV and 1.9-cm (¾-in.) coupler.



1.9-cm (¾-in.) coupler adapter conversion

The conversion design is exclusive to John Deere and converts the couplers on a standard flow SCV from 1.3-cm (½-in.) couplers to 1.9-cm (¾-in.) couplers (with a maximum of 140 L/min [37 gpm]). This kit is ideal for operators with:

• High hydraulic demand implements, such as large air seeders and planters
• Implements that require 1.9-cm (¾-in.) couplers
• A desire to improve implement raise/lower cycle times for faster headland turns



This conversion is an economical solution to improve the transfer of hydraulic horsepower from the tractor to the implement.

• Converted SCV could benefit from a decreased pressure drop range from 2.1 to 9 bar (30 to 130 psi)*, depending on the implement.
  • *NOTE: Based on internal testing.
• Installation does not require removing the SCV stack.
• No software updates are required.

Seeding hydraulic Intelligent Power Management (IPM) kit

The seeding hydraulic IPM kit adds three 1.9-cm (¾-in.) hydraulic couplers with 159-L/min (42-gpm) high-flow SCVs onto the rear of the machine to supplement the additional hydraulic power and flow consumed by systems running dual fan motors such as the Air Power™ 2 system equipped on John Deere C850 Air Carts.



Also provided in the kit is a software enhancement for controlled power increase of up to 18.6 engine kW (25 engine hp) at 2100 rpm and “power limited” in gears 5 through 18 and 37.3 engine kW (50 engine hp) in gears 1 through 4. Power increase is only provided when required.

 Field installed kit includes:

• Three 1.9-cm (¾-in.) couplers
• Three 159-L/min (42-gpm) SCV sections
• Mounting bracket
• Steel hydraulic lines
• All necessary hardware
• Software update (via download on Custom Performance)



For the complete description of the capabilities of this kit, please see the seeding hydraulic IPM feature which will provide the factory-installed option code for this same system.

1.3-cm (½-in.) coupler options

Additional 140-L/min (37-gpm) standard flow  SCVs with 1.3-cm (1/2-in.) couplers can be field-installed for those who need to control additional hydraulic functions. Kits include ISO lever-assisted breakaway couplers and armrest control lever.



Reference the table below for kit options to add a fifth, sixth, or seventh and eighth SCV.

1.9-cm (¾-in.) coupler options

1.9-cm (¾-in.) SCV coupler kit

For greater versatility, producers can replace one 140-L/min (37-gpm) standard flow SCV and 1.3-cm (½-in.) coupler with this 159-L/min (42-gpm) high-flow SCV and 1.9-cm (¾-in.) coupler.



1.9-cm (¾-in.) coupler adapter conversion

The conversion design is exclusive to John Deere and converts the couplers on a standard flow SCV from 1.3-cm (½-in.) couplers to 1.9-cm (¾-in.) couplers (with a maximum of 140 L/min [37 gpm]). This kit is ideal for operators with:

• High hydraulic demand implements, such as large air seeders and planters
• Implements that require 1.9-cm (¾-in.) couplers
• A desire to improve implement raise/lower cycle times for faster headland turns



This conversion is an economical solution to improve the transfer of hydraulic horsepower from the tractor to the implement.

• Converted SCV could benefit from a decreased pressure drop range from 2.1 to 9 bar (30 to 130 psi)*, depending on the implement.
  • *NOTE: Based on internal testing.
• Installation does not require removing the SCV stack.
• No software updates are required.

Seeding hydraulic Intelligent Power Management (IPM) kit

The seeding hydraulic IPM kit adds three 1.9-cm (¾-in.) hydraulic couplers with 159-L/min (42-gpm) high-flow SCVs onto the rear of the machine to supplement the additional hydraulic power and flow consumed by systems running dual fan motors such as the Air Power™ 2 system equipped on John Deere C850 Air Carts.



Also provided in the kit is a software enhancement for controlled power increase of up to 18.6 engine kW (25 engine hp) at 2100 rpm and “power limited” in gears 5 through 18 and 37.3 engine kW (50 engine hp) in gears 1 through 4. Power increase is only provided when required.

 Field installed kit includes:

• Three 1.9-cm (¾-in.) couplers
• Three 159-L/min (42-gpm) SCV sections
• Mounting bracket
• Steel hydraulic lines
• All necessary hardware
• Software update (via download on Custom Performance)



For the complete description of the capabilities of this kit, please see the seeding hydraulic IPM feature which will provide the factory-installed option code for this same system.

The field-installed electronic SCV kits are made available for tractors needing additional SCVs. These kits provide metered flow rates and timed detents with pressure and load sense compensation. The additional SCV(s) can also be integrated into the Headland Management System.



The field-installed kit includes International Organization for Standardization (ISO) lever-assisted breakaway couplers and armrest control lever.

A=Hydraulic charge accumulator
B=Hydraulic hose
C=Clamp
D=Cap screws



A field installed hydraulic accumulator kit is used in applications where implements require large volumes of flowing oil for productivity. Such activities include air seeding, scraper applications or implements with multiple or large hydraulic cylinders. This attachment kit will assist the hydraulic system to maintain adequate hydraulic flow under normal operating conditions.

Lift assist wheels are often used with heavy 3-point-hitch-mounted implements. The hitch auxiliary raise kit provides hydraulic power for use with the lift assist wheels. Turning and transport are made easier using this feature.

Easy hookup of planters and other implements

Attaching implement hydraulic hoses to locations on the tractor other than into an SCV has always been a challenge to know what kits are required for compatibility.  Getting them installed in a timely manner can at times be confusing and time consuming.

To assist in making hookup to large planters, seeders, and harvesting equipment where multiple connections are required, there are now factory-installed auxiliary hydraulic couplers on wheel tractors.

Auxiliary sump coupler

For applications requiring low return oil back pressure (10 psi or less), the sump coupler kit allows oil to return directly to reservoir (differential case) from hydraulic motor, bypassing the remote coupler and SCV. When connecting motor case or seal return hose to coupler, make sure hose end and coupler are clean.

This coupler is required for correct attachment to current-production seeding products with case drain lines.

Hydraulic motor return couplers

The hydraulic motor return couplers can be used as a coupler for return oil flow, from hydraulic orbital motors and other devices, to the tractor's low-pressure return port, labeled ''R'' on the tractor.
Use of this connector specifically in the return to sump port position is for hydraulic components that require a ''leak-off line'' connection to the tractor. Components and implements that require this typically are larger orbital motors that require a drain for seal protection.  The connector in the sump port is not to be used to carry return flow from a function to the tractor.

Power beyond couplers

Power beyond provides live hydraulic power to equipment. This kit supplies oil pressure to implements when the engine is running.

Any implement using power beyond must have a way to control oil flow. Use an independent control valve that is pressure and flow compensating (supplied separately) to control the oil flow rate from this coupler set.

The auxiliary hydraulic optional equipment includes the following:

A - Power beyond couplers
B - Hydraulic motor return couplers
C - Motor seal drain kit
D - Load sense coupler



NOTE: RE151894 and RE67182 cannot be used together.

Easy hookup of planters and other implements

Attaching implement hydraulic hoses to locations on the tractor other than into an SCV has always been a challenge to know what kits are required for compatibility.  Getting them installed in a timely manner can at times be confusing and time consuming.

To assist in making hookup to large planters, seeders, and harvesting equipment where multiple connections are required, there are now factory-installed auxiliary hydraulic couplers on wheel tractors.

Auxiliary sump coupler

For applications requiring low return oil back pressure (10 psi or less), the sump coupler kit allows oil to return directly to reservoir (differential case) from hydraulic motor, bypassing the remote coupler and SCV. When connecting motor case or seal return hose to coupler, make sure hose end and coupler are clean.

This coupler is required for correct attachment to current-production seeding products with case drain lines.

Hydraulic motor return couplers

The hydraulic motor return couplers can be used as a coupler for return oil flow, from hydraulic orbital motors and other devices, to the tractor's low-pressure return port, labeled ''R'' on the tractor.
Use of this connector specifically in the return to sump port position is for hydraulic components that require a ''leak-off line'' connection to the tractor. Components and implements that require this typically are larger orbital motors that require a drain for seal protection.  The connector in the sump port is not to be used to carry return flow from a function to the tractor.

Power beyond couplers

Power beyond provides live hydraulic power to equipment. This kit supplies oil pressure to implements when the engine is running.

Any implement using power beyond must have a way to control oil flow. Use an independent control valve that is pressure and flow compensating (supplied separately) to control the oil flow rate from this coupler set.

The auxiliary hydraulic optional equipment includes the following:

A - Power beyond couplers
B - Hydraulic motor return couplers
C - Motor seal drain kit
D - Load sense coupler



NOTE: RE151894 and RE67182 cannot be used together.

Easy hookup of planters and other implements

Attaching implement hydraulic hoses to locations on the tractor other than into an SCV has always been a challenge to know what kits are required for compatibility.  Getting them installed in a timely manner can at times be confusing and time consuming.

To assist in making hookup to large planters, seeders, and harvesting equipment where multiple connections are required, there are now factory-installed auxiliary hydraulic couplers on wheel tractors.

Auxiliary sump coupler

For applications requiring low return oil back pressure (10 psi or less), the sump coupler kit allows oil to return directly to reservoir (differential case) from hydraulic motor, bypassing the remote coupler and SCV. When connecting motor case or seal return hose to coupler, make sure hose end and coupler are clean.

This coupler is required for correct attachment to current-production seeding products with case drain lines.

Hydraulic motor return couplers

The hydraulic motor return couplers can be used as a coupler for return oil flow, from hydraulic orbital motors and other devices, to the tractor's low-pressure return port, labeled ''R'' on the tractor.
Use of this connector specifically in the return to sump port position is for hydraulic components that require a ''leak-off line'' connection to the tractor. Components and implements that require this typically are larger orbital motors that require a drain for seal protection.  The connector in the sump port is not to be used to carry return flow from a function to the tractor.

Power beyond couplers

Power beyond provides live hydraulic power to equipment. This kit supplies oil pressure to implements when the engine is running.

Any implement using power beyond must have a way to control oil flow. Use an independent control valve that is pressure and flow compensating (supplied separately) to control the oil flow rate from this coupler set.

The auxiliary hydraulic optional equipment includes the following:

A - Power beyond couplers
B - Hydraulic motor return couplers
C - Motor seal drain kit
D - Load sense coupler



NOTE: RE151894 and RE67182 cannot be used together.

A rear fender rear facing work light is available for your tractor. The kit comes with mounting hardware and a harness which directly connects to your tractors existing harness.



This mounting location allows for illumination of your hitch and drawbar area to aid on making connections to your implement with natural lighting conditions are poor.

John Deere CommandView™ III cab offers several options for outside mirrors to increase rear visibility to assist in getting the view needed of variable-width implements, wagons, or carts. The wide-angle mirror options provide excellent overall rear visibility and are easily adjusted and telescope to maintain visibility for a variety of implements.



7R and 8R Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9R and 9RX Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping



Field-installed kits are also available to convert a manual mirror to an electrically adjustable mirror. See the attachment section for further information.



NOTE: Left-hand electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.

John Deere CommandView™ III cab offers several options for outside mirrors to increase rear visibility to assist in getting the view needed of variable-width implements, wagons, or carts. The wide-angle mirror options provide excellent overall rear visibility and are easily adjusted and telescope to maintain visibility for a variety of implements.



7R and 8R Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9R and 9RX Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping



Field-installed kits are also available to convert a manual mirror to an electrically adjustable mirror. See the attachment section for further information.



NOTE: Left-hand electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.

John Deere CommandView™ III cab offers several options for outside mirrors to increase rear visibility to assist in getting the view needed of variable-width implements, wagons, or carts. The wide-angle mirror options provide excellent overall rear visibility and are easily adjusted and telescope to maintain visibility for a variety of implements.



7R and 8R Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

8RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9R and 9RX Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, manual telescoping
• Wide angle, heated, electrically adjustable top pane, electrically telescoping

9RT Series Tractor mirror options:

• Manually adjustable, single pane
• Wide angle, heated, electrically adjustable top pane, electrically telescoping



Field-installed kits are also available to convert a manual mirror to an electrically adjustable mirror. See the attachment section for further information.



NOTE: Left-hand electrically telescoping mirrors are not compatible with 8RT and 9RT Tractors.

Mounting brackets are available to mount a standard ABC extinguisher to your tractor. The bracket mounts to the entrance platform at the top of the entrance/egress steps on 9R series tractors.



This location allows quick access to the extinguisher near the cab door, should it ever be needed.

With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

• Made in the USA
• 23 in. x 8 in. x 12 in.
• Two removable shelves
• Heavy-duty construction
• Fold down front door for easy access
• Mount with existing R127764 tractor weights using BRE10153 bracket
• Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

• Made in the USA
• 23 in. x 8 in. x 12 in.
• Two removable shelves
• Heavy-duty construction
• Fold down front door for easy access
• Mount with existing R127764 tractor weights using BRE10153 bracket
• Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

The heavy-duty gudgeon is designed for increased loads over the standard gudgeon through larger steering pins and tapered roller bearings.

Custom key door locks

Field-installed kit (AL71345) allows for a door handle to be installed that has a key different from the tractor ignition key.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.



Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

RAM is a trademark of National Products Inc.

The front tow cable is recommended for pulling all 9 Family Tractors in time of needed assistance. Tow cables are available as a factory-installed option on all ag tractors and are base equipment on all Scraper Special Tractors. The tow cable attaches to the area in front of the drawbar and is also available as a field-installed option.

The front tow cable is recommended for pulling all 9 Family Tractors in time of needed assistance. Tow cables are available as a factory-installed option on all ag tractors and are base equipment on all Scraper Special Tractors. The tow cable attaches to the area in front of the drawbar and is also available as a field-installed option.

The 9-pin electrical connector is required to allow TouchSet depth control to be used with implements with this feature. The harness provides a position input to the tractor selective control valve unit enabling the TouchSet system.

This feature allows the operator to adjust height and depth of remote lift cylinders by using the TouchSet controls in the cab.

The accessories bracket is available for mounting monitors, phones, radios, and other accessories in one convenient location.



The bracket connects in the existing holes inside the cab.

This kit provides antenna mount, radio mounting plate, and wiring for a business band radio.

To better accommodate governmental or commercial sales, a back-up alarm is available as a factory- or field-installed attachment on select models. An alarm sounds whenever the transmission is placed in reverse. The alarm provides a high level of warning that the tractor is changing direction.

A backup alarm is base equipment on 9R and 9RT Scraper Special Series Tractors.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.



Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

RAM is a trademark of National Products Inc.

The floor insulation kit can reduce cab heat generated by transmission and hydraulic oil temperatures below the cab floor. It can reduce the overall cab temperature, as it works as a thermal barrier. The product comes in a large sheet, which is easily cut to fit the contours of the cab floor.



The kit is large enough to fit the floor pan design of 6 through 9 Series Tractor cabs.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

This kit replaces the rear upholstery behind the operator seat with an additional panel containing a grille screen and base speaker. It allows the tractor to reproduce a deeper range of base tones with seamless installation. The clean look and powerful sound adds a level of comfort and enjoyment for long days in the cab.

John Deere radio packages provide powerful performance with standard four-speaker systems. The standard radio package features easy-to-use operator controls located on the CommandCenter™ display and at the radio faceplate. AM/FM and weatherband tuner allows operators to stay tuned to their favorite radio stations and keep current with ever-changing weather patterns. An auxiliary input for connecting an external media source is conveniently located on the right-side console.



The premium radio package adds to these great features with Bluetooth® to connect with compatible media devices and a USB input for connecting external media sources. A subwoofer is also available in this package to increase the operator experience within the cab.



Both radio packages help create a comfortable operator environment for long hours in the cab.

Standard radio package

• AM/FM and weatherband tuner (NOAA broadcast channels)
• External antenna
• Remote controls through the CommandARM™ controls (volume, mute, channel up/down)
• CommandCenter display with station selection, volume level, and station presets
• Auxiliary input (3.5 mm [0.14 in.]) on right-side console
• Four coaxial speakers

Premium radio package*

• AM/FM, weatherband (NOAA broadcast channels), and worldwide premium tuner
• External antenna
• Remote controls through CommandARM (volume, mute, channel up/down)
• CommandCenter display with station selection, volume level, and station presets
• Universal serial bus (USB) input
• Auxiliary input on right-side console
• Bluetooth capable with microphone (allows phone and streaming audio)
• Four coaxial speakers
• Subwoofer

*XM Satellite functionality for premium radio needs to be upgraded by purchasing the XM antenna, XM receiver, brackets, and wiring harnesses via a kit from your local John Deere dealer.

Bosch is a trademark of Robert Bosch GmBH. Bluetooth is a trademark of Bluetooth SIG Incorporated. XM is a trademark of XM Satellite Radio Incorporated. Delco is a trademark of General Motors LLC.

Hitch/coupler allows for quick, no-hassle hookups to many popular integral implements.

Features include:

• Tubular and box-welded steel construction.
• Heat-treated bushings to prevent cracking and breakage.
• Heat-treated hooks for long wear life.
• Locking handles that rotate 100 degrees to open the locking lugs for easy implement release.
• Hardened and zinc-plated steel alloy pins to take the shock of heavy loads and withstand exposure to the elements.

Hitch/coupler allows for quick, no-hassle hookups to many popular integral implements.

Features include:

• Tubular and box-welded steel construction.
• Heat-treated bushings to prevent cracking and breakage.
• Heat-treated hooks for long wear life.
• Locking handles that rotate 100 degrees to open the locking lugs for easy implement release.
• Hardened and zinc-plated steel alloy pins to take the shock of heavy loads and withstand exposure to the elements.

An option for a factory-equipped Category 5 drawbar with a Category 4 conversion kit included is available on 9420RX and 9470RX Tractors for producers who have Category 4 implements that cannot be converted to Category 5.



A Category 5 to Category 4 drawbar conversion kit is also available as an attachment kit.



NOTE: The preferred method when operating high-horsepower tractors is to convert implements to Category 5.

For additional implement information, please reference the planting and seeding or the tillage information.

Optional 3-point hitches increase the tractor's versatility

A 3-point hitch with Quik-Coupler is available as a factory- or field-installed option.



Electronic draft-sensing relays load information to the electrohydraulic hitch control module for fast, smooth, accurate hitch corrections.

Tractors used in deep-ripping applications with hitch-mounted implements and all other applications with high vertical loads on the rear of the tractor are recommended to be equipped with a cast-tapered roller-bearing gudgeon. Tractors equipped with dozer blades for silage packing operations are also recommended to be equipped with this option.



If ordering a 3-point hitch with a single reduction axle, four or five SCVs are available.



If ordering a 3-point hitch with a double reduction axle, four, five, or six SCVs are available.

	Model	9370R	9420R 9420RX	9470R 9470RT 9470RX	9520R 9520RT 9520RX	9570R 9570RT 9570RX	9620R 9620RX
Code: 4050	Category 4N/3 6940 kg (15,000 lb)	x	x	x
Code: 4051	Category 4/4N 6940 kg (15,000 lb)	x	x	x	x	x	x
Code: 4052	Category 4N/3 9072 kg (20,000 lb)	x	x	x
Code: 4053	Category 4/4N 9072 kg (20,000 lb)	x	x	x	x	x	x



*Factory observed*

Hitch controls

An ergonomically-designed hitch command control console makes it easy to operate the hitch. See the hitch controls section for more information.

The rear hitch has pin joints located in the top lift carrier that uses pins (R304684) which can wear and require replacing to restore smooth operation over time.



The heavy-duty greasable pin kit provides a greasing zerk fitting on each pin for a grease shot to be included as part of the tractor’s grease maintenance.



This kit allows for the pin replacement to last far longer than the standard installed pin so long as it is regularly greased. This update will reduce or eliminate the need for future pin replacement in this joint.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

Fully independent 1000-rpm PTO is available as a factory- or field-installed option.

• Available on all 9R and 9RT Series Ag Tractors regardless of transmission.
• Full-power capability for maximum utilization (9R Series Tractors derate to 319 PTO hp when tractor is stationary)
• 44.5-mm (1.75-in.) diameter shaft.

Electrohydraulic (EH) PTO control

The 9R Series Tractor utilizes an EH PTO-engagement switch to activate the optional 1000-rpm PTO.

Cast-iron wheel weights provide added ballast at the tires for increased traction and stability.

The 3-in. field-installed seat belt kit is designed for use with the 8R and 8RT Series Tractor operator seats. The seat belt kit is offered to meet regulations that require a seat belt anchorage force similar to the SAE J386 (including previous versions up to 22.2 kN anchorage strength), IOS 6683, and OSHA requirements (29CFR1926.602) for earthmoving operations and non-agricultural tractor operations.



NOTE: John Deere recommends reviewing the seat belt kit performance capabilities to ensure compliance with local, state, regional, and national requirements.

Hydraulic trailer brake kits for 9030 and 9R/9RT Series Tractors

The hydraulic trailer brake kit, available as factory- or field-installed on the 9030 Series Tractors (field-installed available on 9020 Series), will assist in the braking of John Deere tractors and large heavy implements.

This hydraulic brake kit provides single line connection to hydraulic braking systems. The kit contains the necessary components along with the tractor's hydraulics to operate implements equipped with proper hydraulic brake components.



NOTE: Trailer brakes are not compatible on 9120, 9220, and 9230 models.

Cast-iron wheel weights provide added ballast at the tires for increased traction and stability.

For operators requiring additional ballast or additional traction on the rear axle

R167153 includes one 75-kg (165-lb) cast starter outer dual-wheel weight used to attach additional 204-kg (450-lb) weights to increase traction on the rear of the tractor by providing additional ballast. These weights can also be used to counterbalance the effect of adding additional weight on the front axle in the form of a front weight support, front hitch, front spray tanks, and front-end loaders.

NOTE: Order attaching hardware through Parts.



NOTE: Adding cast weight to a steel wheel requires that you start with a 75 kg (165 lb) weight.

For operators requiring additional ballast or additional traction on the rear axle

RFR207782 includes two pairs of 204-kg (450-lb) cast rear-wheel weights used to increase traction on the rear of the tractor by providing 816 kg (1800 lb) of additional ballast.



NOTE: Order attaching hardware through Parts.

For operators requiring additional ballast or additional traction on the rear axle

72-kg (159-lb), 205-kg (452-lb), 625-kg (1378-lb), and 970-kg (2138-lb) cast rear-wheel weights are available for the 7R and 8R Series Tractors. The attaching hardware for all rear-wheel weight options may be ordered through parts.



The range of rear-wheel weights can provide the proper amount of rear axle ballast for a variety of applications. The addition of this ballast will increase traction on the rear axle of the tractor. These weights can also be used to counterbalance the effect of adding additional weight on the front axle in the form of a front weight support, front hitch, front spray tanks, and front-end loaders.



205-kg (452-lb) weight

The 205-kg (452-lb) cast rear-wheel weight is offered individually as attachment R07782. The 72-kg (159-lb) starter weight (R167153) must be installed prior to the 205-kg (452-lb) weight on rear steel wheels. This practice is optional on cast wheels; however, most weight packages will be configured this way.



625-kg (1378-lb) weight

R553540 includes one 625-kg (1378-lb) cast inner rear-wheel weight. This weight is to be used on the inside of the rear wheel assembly. This option can be stacked on a double-flat cast hub, with a 70-kg (154-lb) starter ring on the outside.



70-kg (154-lb) weight

BRE10026 features a 70-kg (154-lb) starter weight. The starter weight and guide lugs provide improved installation and removal of the 900-kg (1984-lb) weight. This weight can be used individually on the outside of the steel, dual rims on rack-and-pinion axles, or on the outside of the double-flat, single-taper wheel hub. For the approved cast hubs, can also be used with the inner cast weights as well.



NOTE: Use on the outer side of approved cast hubs will limit dual tire and spacing capability.



900-kg (1984-lb) weight

Individual R341378 900-kg (1984-lb) weights ordered through Parts. The 70-kg (154-lb) starter weight is required for installation, and provides guide lugs for improved installation and removal of the 900-kg (1984-lb) weight. 900-kg (1984-lb) weight ballast option is compatible with steel, dual wheels with rim diameters of 106.7, 116.8 cm, or 127 cm (42 in., 46 in., or 50 in.). This allows the weights to be added to only the outer rear dual on a rack-and-pinion axle and double-flat axle with single-taper hub.



NOTE: This weight option is not compatible with 96.5-cm or 137.2-cm (38-in. or 54-in.) wheels.



Hub extensions mount to the dual/triple hub to extend the steel wheel tread width for exact dual/triple-wheel spacing for 20-in. through 40-in. rows.

Hub extensions mount to the dual/triple hub to extend the steel wheel tread width for exact dual/triple-wheel spacing for 20-in. through 40-in. rows.

Hub extensions mount to the dual/triple hub to extend the steel wheel tread width for exact dual/triple-wheel spacing for 20-in. through 40-in. rows.

Hub extensions mount to the dual/triple hub to extend the steel wheel tread width for exact dual/triple-wheel spacing for 20-in. through 40-in. rows.
