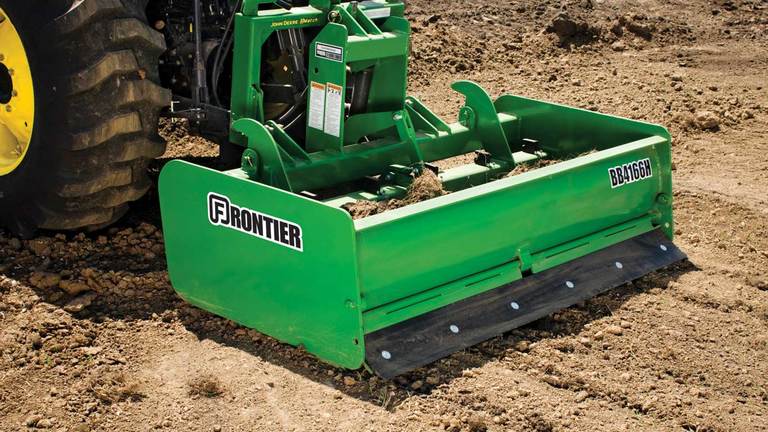

BB41 Series Box Blades
- Adjustable scarifier height
- Hinged tailgate for superior results
- Hydraulically adjustable scarifier beam
- Strong frame for toughest jobs
Features
Adjustable scarifier height to create the desired working depth
Simply remove retainer clips to adjust the height
The scarifier height is easily adjustable on the BB32, BB33, BB41, and BB42 Series Box Blades. Simply remove the retainer clips to raise or lower the scarifier. Use the low notch for deeper ground penetration.
Cutting edge is strategically positioned for a fine finish
BB Series Box Blade cutting edge is reversible
The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.
Hinged tailgate for superior results
Hinged tailgate improves leveling and finishing
The hinged tailgate allows clean-material flow for improved leveling and finishing. Plus, it is built for superior performance when backfilling.
Hydraulically adjust the scarifier beam without leaving the seat
Standard on BB41 and BB42 Series Box Blades
Knock out big jobs faster with the hydraulically controlled scarifier beam on the BB41 and BB42 Series Box Blades. Raise the scarifiers up for backfilling, then lower them for scraping and leveling, all without leaving the tractor seat.
These box blades come standard with a 50.8-mm x 101.6-mm (2-in. x 4-in.) hydraulic cylinder, pin kit, and hydraulic hose kit.
Strong frame to conquer the toughest jobs
101.6-mm x 101.6-mm (4-in. x 4-in.) tubular-steel scarifier beam
The BB32 and BB41 Series Box Blades have a balanced, heavy-duty welded mast and a 101.6-mm x 101.6-mm (4-in. x 4-in.) tubular-steel scarifier beam, delivering added strength for the most challenging jobs. There is no need for gussets.
