BC11 Series Bale Carriers
- Adjustable bale arm fits top diameter of 60- to 72- inches
- Low-profile design improves visibility
- Push bar moves bales to rear
- Walking beam axles and tires provide smoother ride
Features
Expand All
Collapse All
Bale loading arm on the BC1108
BC1110 bale loading arm
Great visibility when loading bales
Bale carrier when fully loaded
Model BC1108 bale push bar
Model BC1110 bale push bar

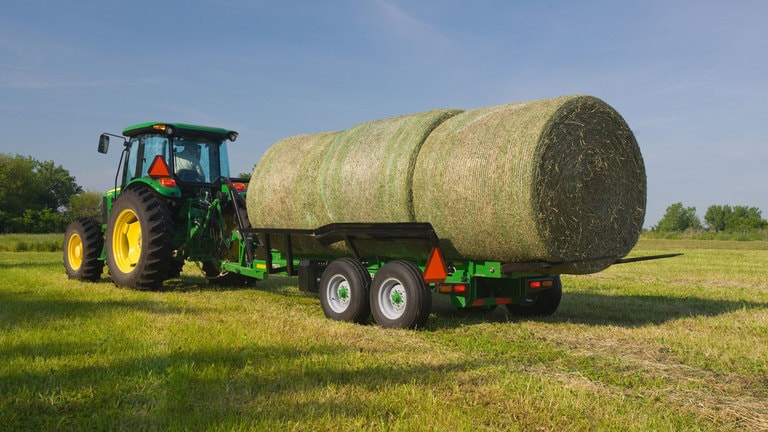

Tandem tires shown on BC1104 and BC1108
Flotation tires shown on BC1110
Adjustable bale arm fits round bale diameters of 152.4 cm to 177.8 cm (60 in. to 72 in.)
Bale loading arm on the BC1108
BC1110 bale loading arm
Frontier™ bale carriers have an adjustable bale arm to fit different bale sizes:
- BC1108 has a maximum bale diameter of 152.4 cm (60 in.)
- BC1110 has a maximum bale diameter of 177.8 cm (70 in.)
Model BC1110 has a bale loading arm designed for improved machine performance.
Bale carrier's low-profile design improves visibility and safety
Great visibility when loading bales
Bale carrier when fully loaded
Frontier™ bale carriers have been designed with a low profile to improve rearward visibility when loading or moving bales.
The low-profile design provides increased safety for operators.
Push bar moves bales to rear to make room for other bales
Model BC1108 bale push bar
Model BC1110 bale push bar
The bale push bar moves the bales rearward after they are loaded, making room for the next bale.
Walking beam axles and tires provide a smoother ride
Tandem tires shown on BC1104 and BC1108
Flotation tires shown on BC1110
Walking beam axles, tandem tires, and larger flotation tires create a smoother ride on uneven or rough terrain.
Specifications
Specs & Compare
Add Model
Specs & Compare |
||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John DeereBC11 SeriesBale Carriers |
Dimensions
| Overall machine height | 3.2 m 10.6 ft |
|||
|---|---|---|---|---|
| Overall machine width | 3.6 m 11.9 ft |
|||
| Overall machine length | 8.5 m 28 ft |
|||
| Bed height | 1.4 m 4.5 ft |
Weight
| Weight | 3,788.9 kg 8,353 lb |
|||
|---|---|---|---|---|
| Loaded capacity | 10,886 kg 24,000 lb |
|||
| Towing unit minimum weight | 7,257.5 kg 16,000 lb |
Bale capacity
| Bale quantity | Ten: 1.8x1.2 m 6x4 ft Eight: 1.8x1.5 m 6x5 ft |
|||
|---|---|---|---|---|
| Round bale diameter | 1.8 m 6 ft |
|||
| Round bale length | 1.8 m 6 ft |
Tires
| Quantity | Four | |||
|---|---|---|---|---|
| Size | 32/15.5 x 16.5 14-ply Galaxy Tires on 12x16.5 Rims |
Pusher
| Travel stroke | 2.1 m 6.8 ft |
|---|
Hubs and spindles
| Hub type | 8 Bolt | |||
|---|---|---|---|---|
| Hub capacity | 3,268.7 kg 8,000 lb |
|||
| Spindle diameter | 7 cm 2.75 in. |
Hitch
| Type | Clevis | |||
|---|---|---|---|---|
| Hole size | 3.2 cm 1.25 in. |
Lighting, marking and safety
| Transport safety lights | Standard | |||
|---|---|---|---|---|
| Markings | SMV and reflectors | |||
| Safety tow chain | Standard | |||
| Jack | Standard |
Set-up time
| Labor hours | 1 |
|---|
Warranty
| Machine | 1 year |
|---|
