DT11 Series Trenchers
- 14-in. discharge auger
- Durable chain for light-duty jobs
- iMatchTMcompatible
Features
Expand All
Collapse All
Cuts 15.2-cm (6-in.) wide and digs up to 91.4-cm (36-in.) deep
Pushes dirt aside, allowing smooth operation
Chain is durable for light-duty trenching jobs
Cuts 15.2-cm (6-in.) wide and digs up to 91.4-cm (36-in.) deep

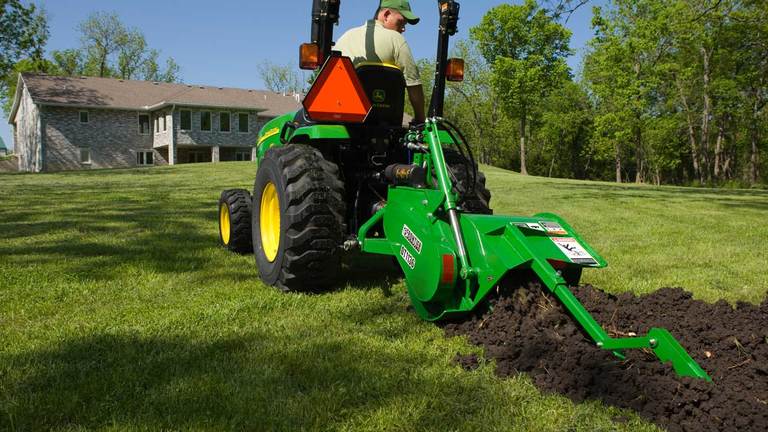

The trencher's durable chain gets under the frost line, cutting a 15.2-cm (6-in.) width and digging a channel up to 91.4-cm (36-in.) deep.
35.6-cm (14-in.) discharge auger lightens workload
Pushes dirt aside, allowing smooth operation
The 35.6-cm (14-in.) discharge auger makes light work when moving dirt. It easily pushes dirt aside, allowing the trencher to run smoothly without clogging.
The discharge auger also helps to prevent unnecessary backfill into newly trenched channels.
Specifications
Specs & Compare
Add Model
Specs & Compare |
||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John DeereDT11 SeriesTrenchers |
Dimensions
| Trench depth with auger at 65-degree angle | 91.4 cm 36 in. |
|||
|---|---|---|---|---|
| Overall length | 200.7 cm 79 in. |
|||
| Overall width | 96.5 cm 38 in. |
|||
| Overall height | 73.7 cm 29 in. |
Weight
| Operating | 287.1 kg 633 lb |
|||
|---|---|---|---|---|
| Shipping | 294.8 kg 650 lb |
Tractor compatibility
| PTO horsepower | 11.2-22.4 kW 15-30 hp |
|---|
Hitch
| Compatibility | Cat. 1 | |||
|---|---|---|---|---|
| iMatchTM compatible (Cat. 1) |
Chain
| Chain type | Rated anti back flex: 17,236.5 kg 38,000 lb |
|||
|---|---|---|---|---|
| Chain width | 15.2 cm 6 in. |
|||
| Chain pitch | 4.2 cm 1.654 in. |
|||
| Length in pitches | 64 |
PTO
| Speed | 540 rpm | |||
|---|---|---|---|---|
| Overload protection | Slip clutch |
Spoil auger
| Diameter | 35.6 cm 14 in. |
|||
|---|---|---|---|---|
| Discharge reach | 53.3 cm 21 in. |
Hydraulic system
| Type | One double acting cylinder |
|---|
Parking stands
| Standard | Yes |
|---|
Duty
| Type | Standard |
|---|
Shipping
| Configuration | One unit |
|---|
Set-up time
| Labor hours |
|---|
Warranty
| Time period (machine) |
|---|
Additional information
| Date collected |
|---|
