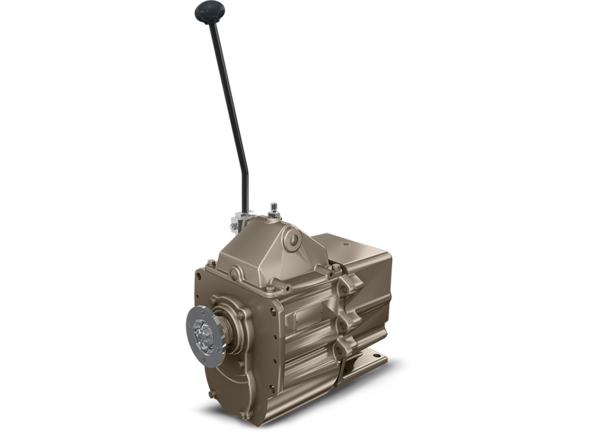

HMD23000 Transmission Max input power: 75 kW (100 hp)Max input torque: 271 Nm (200 lb-ft) Features Features Expand All Collapse All Controlled ground speed at full engine power Available to use with applications up to 75 kW (100 hp) 3000 rpm max input, no load speed Multiple gear ratios within two, three and four speed versions Covers low speed working range through high gear travel speeds Wide speed variance in each gear range Selection of SAE hydraulic input motor mountings SAE C and D mounts to utilize the choice of input hydraulics to best fit the application need Show More Show Less Specifications Specifications Specifications Select Different Model Specifications John Deere HMD23000 Transmission Export to Excel 1 2 Ratings Input power (max) 75 kW (100 hp) Input torque (max) 271 Nm (200 lb-ft) Input no load speed (max) 3000 rpm General Data Motor adapters SAE C and D Approximate dry weight 69-72 kg (151-159 lb) Oil capacity 3.3 L (3 qt) Oil type MIL-L-2105-C or API classification GL-5 Speeds 3, 4 Configuration In-line Shift Options Mechanical Gear ratio (helical gears, sliding collar shift) Models Model Low 2nd 3rd High 23155 6.63:1 3.17:1 1.72:1 1:1 23125 6.63:1 2.54:1 - 1:1 23126 6.63:1 3.17:1 - 1:1 Splines Input SAE 14-tooth 12/24 DP SAE 13-tooth 8/16 DP Parking break Band-type Output Fittings Spicer 3-1-2181 Applications Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed Show More Show Less Get A Quote Name* First Last Email Address* Phone Number*City, StateYour C & B Location*Select a LocationIdaho Falls, IDSioux Falls, SD (FSO Office)Sioux Falls, SD Turf CCE StoreSibley, IAIda Grove, IASlayton, MNSpencer, IASheridan, WYGlendive, MTTracy, MNPipestone, MNSelby, SDTruman, MNGlasgow, MTPlentywood, MTPowell, WYMitchell, SDWagner, SDStorm Lake, IAMiller, SDGettysburg, SDRexburg, IDCulbertson, MTWorthington, MNMiles City, MTCorsica, SDFreeman, SDYankton, SDRoscoe, SDCircle, MTLuverne, MNSt. James, MNEdgerton, MNChamberlain, SDLake Park, IAJackson, MNBlackfoot, IDBillings, MTThis field is hidden when viewing the formEquipment Interested In*This field is hidden when viewing the formProduct URLThis field is hidden when viewing the formSerial NumberMessageThis field is hidden when viewing the formWay I Would Like To Be Contacted*TextEmailPhone Call Δ Value Your Trade Name(Required) First Last Email(Required) Phone(Required)Address(Required) Street Address Address Line 2 City State / Province / Region ZIP / Postal Code AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBonaire, Sint Eustatius and SabaBosnia and HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBrunei DarussalamBulgariaBurkina FasoBurundiCabo VerdeCambodiaCameroonCanadaCayman IslandsCentral African RepublicChadChileChinaChristmas IslandCocos IslandsColombiaComorosCongoCongo, Democratic Republic of theCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCĂ´te d'IvoireDenmarkDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard Island and McDonald IslandsHoly SeeHondurasHong KongHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKorea, Democratic People's Republic ofKorea, Republic ofKuwaitKyrgyzstanLao People's Democratic RepublicLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacaoMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmarNamibiaNauruNepalNetherlandsNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorth MacedoniaNorthern Mariana IslandsNorwayOmanPakistanPalauPalestine, State ofPanamaPapua New GuineaParaguayPeruPhilippinesPitcairnPolandPortugalPuerto RicoQatarRomaniaRussian FederationRwandaRĂ©unionSaint BarthĂ©lemySaint Helena, Ascension and Tristan da CunhaSaint Kitts and NevisSaint LuciaSaint MartinSaint Pierre and MiquelonSaint Vincent and the GrenadinesSamoaSan MarinoSao Tome and PrincipeSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia and the South Sandwich IslandsSouth SudanSpainSri LankaSudanSurinameSvalbard and Jan MayenSwedenSwitzerlandSyria Arab RepublicTaiwanTajikistanTanzania, the United Republic ofThailandTimor-LesteTogoTokelauTongaTrinidad and TobagoTunisiaTurkmenistanTurks and Caicos IslandsTuvaluTĂĽrkiyeUS Minor Outlying IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVenezuelaViet NamVirgin Islands, BritishVirgin Islands, U.S.Wallis and FutunaWestern SaharaYemenZambiaZimbabweĂ…land Islands Country Tell Us About Your EquipmentModel YearMakeModelSerial #Condition(Required)Like NewCleanGoodFairExperiencedEngine HoursSeperator HoursAdditional Information/CommentsIndicate Your IntentionsI'm Looking To:(Required) Sell My Equipment Trade My Equipment Upload PhotosFileMax. file size: 8 MB.FileMax. file size: 8 MB.FileMax. file size: 8 MB.FileMax. file size: 8 MB.CAPTCHA Δ Create Review Equipment NameThis field is hidden when viewing the formEquipment Post IDThis field is hidden when viewing the formEquipment URLThis field is hidden when viewing the formSerial NumberName* First Last Email* Phone*Overall rating* POOR GREAT Add a headline*Write your review* Δ
