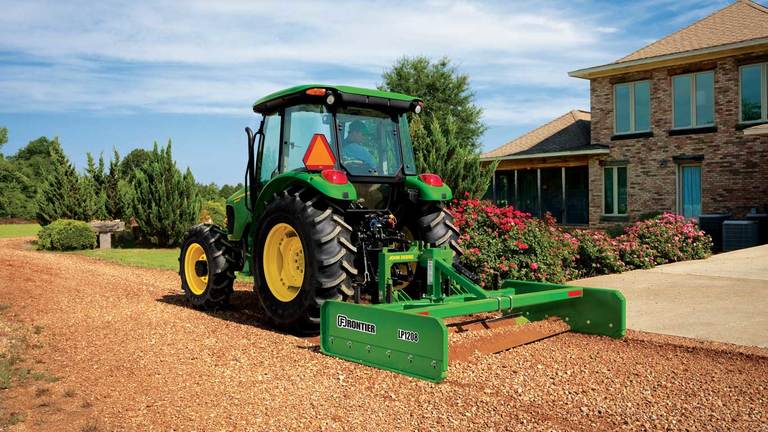

LP12 Series Land Planes
- Adjustable skid shoes
- Scarifier kit
- Scarifier shanks for ripping up hard ground
Features
Expand All
Collapse All
Skid shoes are adjustable up and down
Adjustable for different types of ground work
Scarifier shanks shown engaged
Adjustable skid shoes extend cutting edge life
Skid shoes are adjustable up and down
Skid shoes increase the life of the cutting edges on the land planes while avoiding damage to the working surface.
The skid shoes are adjustable up and down on each side plate to allow for the creation of a crown on a road for water runoff.
By replacing the skid shoes when needed, it will extend the life of the land plane.
Scarifier shanks for ripping up hard ground or aggressive grading
Adjustable for different types of ground work
Scarifier shanks shown engaged
Scarifier shanks on the front frame will rip up hard ground pans, and they work well for aggressive grading and leveling.
The scarifier shanks can be easily adjusted for depth control.
Specifications
Specs & Compare
Add Model
Specs & Compare |
||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John DeereLP12 SeriesLand Planes |
Dimensions
| Working width | 304.8 cm 120 in. |
|---|
Weight
| Operating | 568.8 kg 1254 lb |
|||
|---|---|---|---|---|
| Shipping | 591.48 kg 1304 lb |
|||
| Implement code | 72.4 |
Tractor compatibility
| Required PTO horsepower | 37.3-78.3 kW 50-105 hp |
|---|
Hitch
| 3-point compatibility | Category 2 | |||
|---|---|---|---|---|
| iMatch™ compatible (Cat. 1) | ||||
| Quick-coupler compatible (Cat. 2) | Yes | |||
| Pull-type |
Cutting edge
| Type | ||||
|---|---|---|---|---|
| Reverisble | Yes | |||
| Replaceable | Yes | |||
| Quantity | Two | |||
| Size, in. (cm) | 1.3x15.2 cm 0.5x6 in. |
Skid shoes
| Configuration | Steel - Adjustable | |||
|---|---|---|---|---|
| Thickness | 0.95 cm 0.375 in. |
|||
| Height adjustment range | 3.81 cm 1.5 in. |
Shipping
| Configuration | One unit |
|---|
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
Scarifier shanks
| Adjustable | Yes - Notched 3 position | |||
|---|---|---|---|---|
| Available | Yes | |||
| Points | Replaceable | |||
| Quantity | Eight | |||
| Tubular scarifier beam size | 10.16x10.16 cm 4x4 in. |
|||
| Tubular scarifier beam thickness | 0.95 cm 0.375 in. |
Additional information
