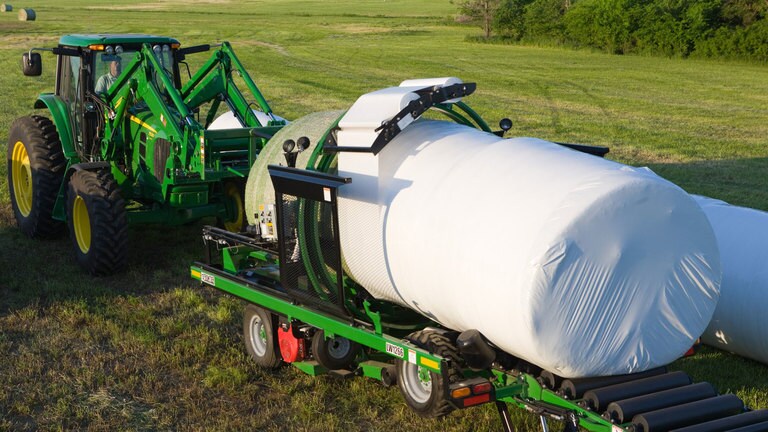

LW12 Series In-Line Bale Wrapper

Adjustable tongue (hitch)

The adjustable tongue (hitch) folds neatly out of the way for wrapping. It is located at the opposite end of where the bales are wrapped.

The adjustable tongue makes moving and repositioning the machine a quick and easy task, saving time and money.

Multipurpose control center

The control box and levers are the control center of the in-line bale wrappers.

Some of the uses include turning the unit on and off, and controlling the bale ramp and bale push.

Sensor comprised of silver rod and limit switch

The film wrap sensor automatically shuts down the wrapping cycle when the machine runs out of film or breaks.

Assist in difficult field conditions

Traction implement tires make the in-line wrappers sure-footed on wet and uneven terrain to help get the machine where it needs to be for wrapping bales.

The LW11 Series comes standard with the traction implement tires, and they are available on the LW12 Series only when ordered with single- or dual-power drive.

14.9-kW (20-hp) Honda® engine

A larger horsepower engine with a high-flow pump provides increased capacity to complete the job faster.

NOTE: LW Series In-Line Bale Wrappers come standard with a 9.7-kW (13-hp) Honda engine.

Single- and dual-power drive

Optional single-power drive

Optional single- or dual-power drives allow the operator to maneuver the unit without attaching it to a tractor. The single-power drive has one rear tire, while the dual-power drive has two rear tires, to provide traction for the unit. These features are great for wet or uneven ground conditions where traction is limited.

Steering remote control

Remotely stops and starts the unit

This remote control allows the operator to steer, start, and stop the machine without using the control panel on the machine.

Twin wrap kit

Twin wrap kit

This kit provides a double layer of wrap, increasing the amount of wrap applied to bales.

Work lights

Lights allow operators to work longer hours

For early morning or late-night work, choose between two optional work lights: light-emitting diode (LED) and halogen.

Guide rollers

Optional guide rollers

Optional guide rollers help keep the bales on the bale ramp in uneven terrain.

Power jack

Power jack

The optional power jack hydraulically raises the bale ramp to a level position to eliminate air pockets between bales when starting a row. The bale ramp is lowered after three bales have been wrapped.

Bale Follower

The bale follower allows the in-line wrapper to automatically follow the line of bales next to it.

Honda is a trademark of Honda Motor Co., Ltd.

The quick-start power jack conversion kit lifts the bale wrapper to level the roller bed when starting a new bale line on the LW1266 In-Line Bale Wrappers.

A conversion kit provides night working lights on LW1166 and LW1266 In-Line Bale Wrappers.

Remote steering and shutdown conversion kits allow the operator to steer and start/stop the wrapper from the operator station of the tractor or from the skid steer that is loading the bales into the wrapper.

This sidehill guide rollers conversion kit prevents bales from sliding off of the rollers when wrapping on hillsides.
