MJ40 Series Telehandlers

MJ4060 holds bales for placement and stacking

The Frontier™ MJ4060 Bale Fork attachment can handle almost any sized large square bales with ease. It features hooks along the side that are hydraulically activated and hold bales for placement and stacking.

The MJ4060 Bale Fork is made with strong, abrasion-resistant steel. The forks resist bending and stand the test of time. The fork features single auxiliary hydraulic service and quick-attach compatibility.

Holds bale tight while leaving it in good shape

For operators who handle a lot of large square bales, the Frontier™ MJ4090 or MJ4091 Bale Squeeze will leave the bales in good shape, even after being handled several times.

Whether choosing the 121.9-cm or 279.4-cm (48-in. or 110-in.) width, each Frontier bale squeeze features two 243.8-cm (96-in.) arms that hydraulically squeeze the bale's sides, plus a power squeeze operation for clamping bales.

Choose from 907.2-kg or 1814.4-kg (2000-lb or 4000-lb) models that are suitable for machines with up to 2721.6 kg (6000 lb) of capacity. The bale squeeze models feature dual auxiliary hydraulic service and quick-attach compatibility.

BG1096 for a variety of material handling

The Frontier™ BG1096 Brush Grapple is a great, versatile attachment for those who want to collect debris and leave dirt behind. Now operators can move logs, rocks, or debris, rake pile, or do site cleanup only without collecting dirt along the way.

The BG1096 Brush Grapple has a 0.91-m³ (1.19-cu yd) bucket with two independent top grabs. The brush grapple features single auxiliary hydraulic service and quick-attach compatibility.

AT1096U handles up to 4.6 m³ (6 cu yd) of silage

AT2016G comes standard with bolt-on cutting edge

AT2016U features five replaceable tines

Frontier™ offers three bucket grapples to handle large round bales or secure as much as 4.6 m³ (6 cu yd) of silage, depending on producer needs.

The AT1096U Bucket Grapple measures 243.8-cm (96-in.) wide with 1.2 m³ (1.6 cu yd) of bucket capacity. Features include an optional grapple with spill screen and single auxiliary hydraulic service. A bolt-on cutting edge is standard, and this model is quick-attach compatible.

The AT2016G Bucket is perfect for silage needs and comes standard with a bolt-on cutting edge. The bucket measures 243.8-cm (96-in.) wide and holds 1.2 m³ (1.6 cu yd). The AT2016G Bucket is also quick-attach compatible. A five-tine silage/round bale grapple is optional.

The AT2016U Bucket comes standard with a bolt-on cutting edge and grapple for handling silage and round bales. The AT2016U measures 243.8-cm (96-in.) wide and has 1.2 m³ (1.6 cu yd) of bucket capacity. The AT2016U features five replaceable tines and a standard spill guard, and it is quick-attach compatible.

MJ4062 easily clears large amounts of debris

The MJ4062 Debris Grapple combines the capability of a standard bucket with the ability to grab debris and irregular-shaped material with the grapples.

With a 1.7-m³ (2.25-cu yd) bucket and two independent top grabs, it is the ideal choice for the commercial operator or a large-property owner with a lot of brush to clear. The grapple has single auxiliary hydraulic service and is quick-attach compatible.

QC1072 is perfect for handling large, bulky items

The Frontier™ QC1072 Fork Carriage is 182.9-cm (72-in.) wide and quick-attach compatible. It is designed for 106.7-cm, 121.9-cm, and 152.4-cm (42-in., 48-in., and 60-in.) long forks. It features a wider backstop to handle bulkier items such as industrial pipe.

MJ4079 is equipped with a full skid plate

The Frontier™ MJ4079 General-Purpose Bucket is good for handling dense materials such as fertilizer, lime, sand, dirt, or farmyard manure and will meet growers' needs.

The MJ4079 General-Purpose Bucket comes equipped with a full skid plate to provide rigidity and added protection from abrasive concrete floors and other paved surfaces.

The MJ4079 measures 243.8-cm (96-in.) wide, with a 1.33-m³ (1.75-cu yd) bucket capacity. It has a quick-attach connection, and the bolt-on cutting edge is standard.

MJ4081 is ideal for handling large hay bales

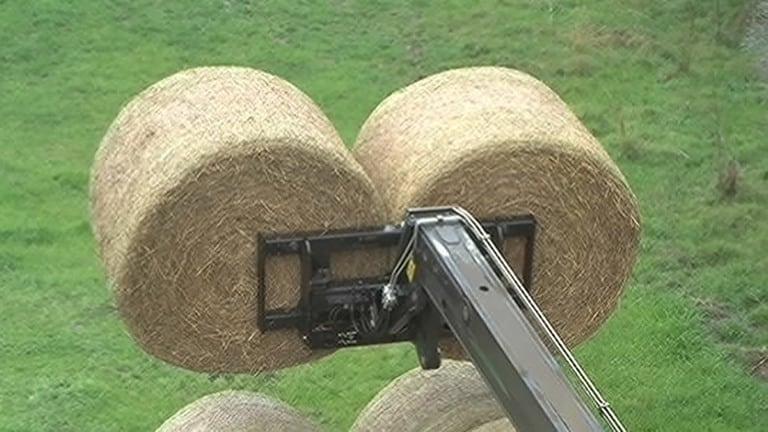

The Frontier™ MJ4081 Large Bale Spike helps operators move round bales quickly and up to two at a time. It features two 124.5-cm (49-in.) forged main spikes and two 30.5-cm (12-in.) tines for stabilization.

Frontier large bale spikes can handle one large square bale or two round bales with ease. It is quick-attach compatible.

BF1102S picks up two large square bales

The Frontier™ BF1102S Large Square Bale Spear can pick up two 1.2-m x 1.2-m (4-ft x 4-ft) large square bales at once. The bale spear does not require hydraulic services.

MJ4059, MJ4061, and MJ4063 for light materials

The Frontier™ MJ4059, MJ4061, and MJ4063 Light Material Buckets are great for handling light materials such as cotton seed, wood chips, silage, or corn and will meet operator needs. The buckets feature wear-resistant skid bars for strength and added life.

Frontier offers three bucket sizes to choose from:

• 1.7 m³ (2.25 cu yd)
• 1.9 m³ (2.50 cu yd)
• 2.5 m³ (3.25 cu yd)

The buckets measure 243.8-cm (96-in.) wide. They are quick-attach compatible and come standard with a bolt-on cutting edge.

MJ4076 and MJ4077 have a reinforced mainframe

The Frontier™ MJ40 Manure Fork and Grab is available in two sizes: the MJ4076 model is 182.9-cm (72-in.) wide and the MJ4077 model is 243.8-cm (96-in.) wide. They can handle loose hay, farmyard manure, or straw and will meet any operator's needs.

The manure fork and grab has a reinforced mainframe and large-diameter, heavy-duty tines. Frontier manure fork and grab attachments resist bending as they break up compacted livestock manure and bedding. They offer single auxiliary hydraulic service and quick-attach compatibility.

MJ1060 model is built extremely strong

Frontier™ implements offers three different pallet fork options with model MJ1060 to match a grower's applications. Frontier pallet forks are drawn and forged for one-piece, homogeneous strength through the bend radius at the fork heel.

Choose from three sizes for use with all carriages:

• 106.7 cm x 10.2 cm x 4.4 cm (42 in. x 4 in. x 1.75 in.)
• 121.9 cm x 10.2 cm x 4.4 cm (48 in. x 4 in. x 1.75 in.)
• 152.4 cm x 10.2 cm x 4.4 cm (60 in. x 4 in. x 1.75 in.)

MJ4058 features floating shaft fork mountings

There is no need to get out of the cab with the Frontier™ MJ4058 Quick-Attach Carriage. The MJ4058 is designed to attach and detach pallet forks without getting out of the cab. Carriages feature floating shaft fork mountings for easier pallet entry and exit in uneven terrain.

The MJ4058 measures 121.9-cm (48-in.) wide. Pallet forks are available in 106.7-cm, 121.9-cm, and 152.4-cm (42-in., 48-in., and 60-in.) lengths, which need to be ordered separately.

MJ4099 perfectly handles silage-wrapped bales

The Frontier MJ4099 Round Bale Hugger is the tool for operators who need to move one bale at a time or handle silage-wrapped bales. It can handle one wrapped bale up to 1.8 m (6 ft) in diameter.

A single cylinder allows arms to hug equally. The round bale hugger has single auxiliary hydraulic service and is quick-attach compatible.

MJ4085 for telehandlers up to 2721.6 kg (6000 lb) of capacity

The Frontier™ quick-attach side-shift carriage with side-shift pallet fork gets the job done. The MJ4085 Side-Shift Carriage is built strong for telehandlers up to 2721.6 kg (6000 lb) in capacity. Side-shift carriages feature a 10.2-cm (4-in.) side, from left-to-right and single auxiliary hydraulic service.

The Frontier MJ4085 measures 121.9 cm (48 in.) wide. Pallet forks are available in 106.7-cm, 121.9-cm, and 152.4-cm (42-in., 48-in., and 60-in.) lengths, which need to be ordered separately.

MJ4084 provides safe load stabilization

The Frontier™ MJ4084 Side-Tilt Carriage is perfect for operators working on unever terrain. This quick-attach, side-tilt carriage features 10 degrees of side tilt, left or right, and a floating fork shaft. A center-pivot design and single auxiliary hydraulic service provide safe load stabilization for transport and leveling raised loads.

The MJ4084 measures 121.9-cm (48-in.) wide. Pallet forks are available in 106.7-cm, 121.9-cm, and 152.4-cm (42-in., 48-in., and 60-in.) lengths, which need to be ordered separately.

MJ4118 top fingers help pull silage with ease

The Frontier™ MJ4118 Silage Bucket holds 1.9 m³ (2.5 cu yd) of silage and is 243.8-cm (96-in.) wide.

The MJ4118 Silage Bucket has top fingers to help pull silage face into the bucket wtih ease. Features include an optional bolt-on cutting edge and quick-attach compatibility.

SD1096 for shaving a couple of inches (mm) of silage

The Frontier™ SD1096 Silage Defacer shaves off just a couple of inches (mm) of silage from the silage bunker's face for a day's feeding. It can pierce, separate, and rake silage away without cutting or reducing the size of the silage

SD1096 Silage Defacers leave the face of the silage bunker nice and smooth and locks out oxygen, preventing spoilage. The low-speed rake tines pierce and pull compacted silage without sizing material particles. They feature a 243.8-cm (96-in.) full working width and are quick-attach compatible.

MJ4037 easily moves one round bale of hay

The Frontier™ MJ4037 Single Bale Spike has a forged main spike for added strength and wear capability.

With one 124.5-cm (49-in.) forged main spike and two 30.5-cm (12-in.) tines for stabilization, the MJ4037 can handle one round bale with ease. They are quick-attach compatible.

MJ4074 is perfect for handling small square bales

The Frontier™ MJ4074 Small Square Bale Fork can handle up to eight flat or 10 indexed small square bales at one time. Hydraulic claws grab and hold the bales for stacking.

Made with abrasion-resistant steel, the MJ4074 Bale Fork handles bales flat or on their sides. Bales are picked up in tight formation for easy handling. The bale fork has single auxiliary hydraulic service and is quick-attach compatible.
