PR11 Series Power Rakes
- Angle adjustment
- Carbide teeth
- Adjustable end plate
- Roll-back barrier provides adjustable pulverizing

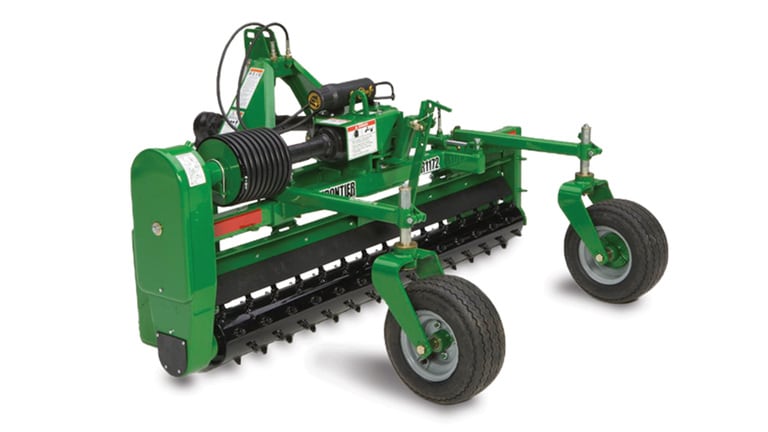

![Studio image of Frontier PR11 Power Rake](https://www.deere.com/assets/images/region-4/products/frontier-implements/landscaping-equipment/power-rakes/pr11-series/pr11_series_power_rake_422483_small_9d97a82ee1dbbe07470c080e2df36ebbcc7ee2b1.jpg)
Specifications
Specs & Compare
Add Model
Specs & Compare |
||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John DeerePR11 SeriesPower Rakes |
Dimensions
Machine length | 157.5 cm 62 in. |
|||
---|---|---|---|---|
Machine height | 101.6 cm 40 in. |
|||
Transport width | 205.7 cm 81 in. |
|||
Working width | 182.9 cm 72 in. |
|||
Working width at max angle | 176.5 cm 69.5 in. |
Weight
Operating | 376.5 kg 830 lb |
|||
---|---|---|---|---|
Shipping | 499 kg 1100 lb |
Tractor compatibility
PTO horsepower | 22.4-29.8 kW 30-40 hp |
|||
---|---|---|---|---|
PTO speed | 540 rpm | |||
Hydraulic requirement | 1500 rpm |
Hitch
Compatibility | Cat. 1 | |||
---|---|---|---|---|
iMatch™ compatible (Cat. 1) | ||||
Quick coupler (Cat. 2) |
Rotor
Speed (rpm) | 270 | |||
---|---|---|---|---|
Direction of travel | Against DOT | |||
Quantity of carbide teeth per rotor | 114 |
Working angles
Degrees left or right | 0-15 degree (angle) |
---|
Parking stands
Standard | Yes |
---|
Depth control
Type | Dual independent adjustable gauge wheels |
---|
Set-up time
Labor hours | 0.75 |
---|
Warranty
Time period | 1 year |
---|
Additional information
Date collected |
---|
