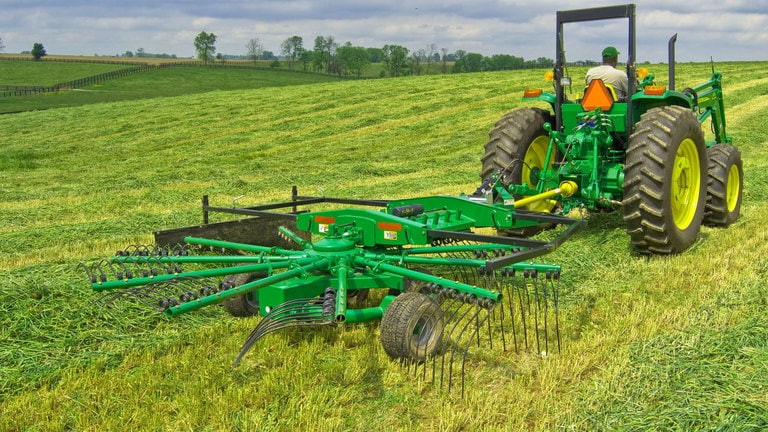

RR22 Series Rotary Rake
- Cam-action tine arms
- Heavy-duty curtain
- Hydraulic rake adjustments
- Tandem flotation tires
Features
Cam-action tine arms
Cam-action tine arms for efficient drying time
The cam-action tine arms on the Frontier RR2211 Rotary Rake gently deposit the material in the swath, saving valuable leaves. Furthermore, the cam action forms a higher, fluffier, faster-drying windrow that saves drying time.
The tine arms are removable to allow for narrow transport widths and more compact storage.
Heavy-duty curtain
Adjustable to accommodate raking needs
The Frontier™ RR2211 Rotary Rake's heavy-duty vinyl curtain controls the windrow width and can be adjusted in or out to accommodate individual harvesting needs.
When combining multiple windrows, the curtain can either be removed or turned upside down to prevent interfering with the hay.
Hydraulic rake adjustments
Hydraulics create ease for the operator
Hydraulically adjust the Frontier™ RR2211 Rotary Rake's height and pitch without leaving the tractor seat.
Both functions are controlled with one simple hydraulic circuit.
Tandem flotation tires
Flotation tires provide top-quality performance
Four large tandem flotation tires on the Frontier™ RR2211 Rotary Rake provide maximum durability when operating over rough terrain.
Specifications
Specs & Compare
Add Model
Specs & Compare |
||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John DeereRR22 SeriesRotary Rake |
Dimensions
| Working width | 3.96 m 13 ft |
|||
|---|---|---|---|---|
| Overall working width | 4.06 m 13.33 ft |
|||
| Transport width | 1.52 m 5 ft |
|||
| Overall transport length | 3.96 m 13 ft |
|||
| Raking width | 3.35 m 11 ft |
Weight
| Implement | 703 kg 1,550 lb |
|---|
Tractor compatibility
| PTO hp requirements | 29.8 kW 40 hp |
|||
|---|---|---|---|---|
| PTO requirement rpm | 540 rpm | |||
| Hydraulic pressure requirement | 1,200 psi | |||
| Number of SCVs | One |
Hitch
| Type | Drawbar |
|---|
Axle
| Type | Tandem |
|---|
Wheels
| Type | Flotation | |||
|---|---|---|---|---|
| Quantity | Four | |||
| Size, diameter | 46.99 cm 18.5 in. |
Tine arms
| Quantity | 11 | |||
|---|---|---|---|---|
| Quantity of double tines per arm | Four | |||
| Size | 5.1 cm 2 in. |
|||
| Removable | Yes |
Swath screen
| Type | HD Vinyl curtain |
|---|
Safety and markings
| Transport safety lights | ||||
|---|---|---|---|---|
| Markings | Reflectors | |||
| Safety tow chains | Standard |
Shipping information
| Quantity | One |
|---|
Set-up time
| Labor hours | 1 |
|---|
Warranty
| Time period | 1 year for ag and residential use 90 days for commercial use |
|---|
