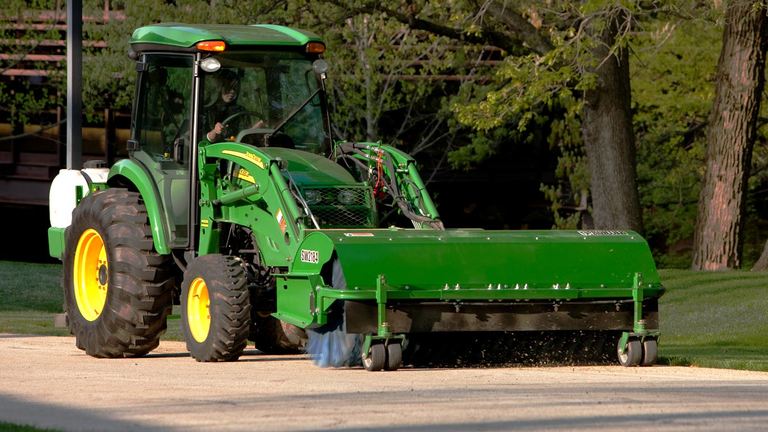

SW21 Series Rotary Brooms

Angle to the left or right

The loader-mount hydraulic rotary broom has an angling range from 0 to 23 degrees both left and right. Setting the angle allows for the windrowing of material off of surfaces.

NOTE: Operators can mount optional gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

Brush is large enough for tough jobs

The 83-cm (32-in.) diameter brush is large enough for the toughest jobs.

NOTE: Operators can mount optional gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

SW21 Series dust suppression system

227-L (60-gal.) tank

The optional dust suppression system consists of a 227-L (60-gal.) tank supplying water up the nozzles that are positioned in the front of the broom.

The nozzles are easily controlled by a toggle switch located by the height hitch lever.

NOTE: Requires the poly and steel deflector kit. Compatible with lawn dethatching kit.

For setting surface height of broom (shown with dethatching kit installed)

Gauge wheels shown in rear park stand mounting tubes

An optional pair of gauge wheels are available for setting the height of the broom for limited surface contact. This ensures easy operation when sweeping surfaces or dethatching lawns.

It includes two pairs of 20.3-cm (8-in.) diameter by 8.9-cm (3.5-in.) wide solid wheels, mounting brackets, and hardware.

Operators can mount gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

A steel and rubber dust deflector kit directs material downward when using the SW21 Series Loader-Mount Rotary Brooms.

The dust suppression kit includes 227-L (60-gal.) water tank, electric pump, nozzles, hoses and fittings, electrical harness with switch, and installation instructions for SW21 Series Loader-Mount Rotary Brooms.

NOTE: Requires the steel/rubber dust deflector kit.

Gauge wheels with dethatching and dust suppression kit installed

The gauge wheel kit for SW21 Series Loader-Mount Rotary Brooms includes two pairs of 20.3-cm (8-in.) diameter by 8.9-cm (3.5-in.) wide solid wheels, mounting brackets, and hardware.

Operators can mount gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

NOTE: By mounting wheels in front of the brush with the dethatching bracket installed, better control of ground pressure can be achieved.

Lawn dethatching kit components

The lawn dethatching kit for SW21 Series Loader-Mount Rotary Brooms improves control of ground pressure when dethatching and perfomring general sweeping by moving the gauge wheels in front of and closer to the brush. The kit includes support components, hardware, and installation instructions. The gauge wheel kit is required and sold separately. It is compatible with the dust suppression kit.

The 50/50 poly and steel wafer brush replacement kit for the SW2160, SW2172, and SW2184 Loader-Mount Rotary Brooms includes the required quantity of wafers to replace the entire brush.
