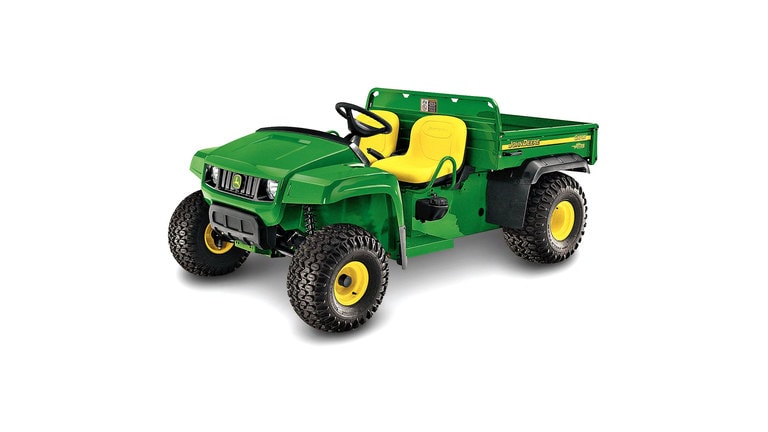

TS 4×2 Traditional Utility Vehicle
- Best in class work capability
- Enhanced stability for better performance in difficult terrain
- Best in class durability
- Freight not included in list price
Features
Specifications
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere TS 4x2 Traditional Utility Vehicle |
Key Specs
| Engine power | 10.1 kW 13.5 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 100.3 x 124.5 x 22.9 cm 39.5 x 49 x 9 in. |
|||
| Cargo box capacity (weight) | 227 kg 500 lb |
|||
| Towing capacity | 408 kg 900 lb |
|||
| Front suspension | Independent spring-over-shock, single A-arm | |||
| Rear suspension | Two high-floatation, low pressure tires (solid axles) | |||
| Final drive | Fully enclosed; oil bath | |||
| Four wheel drive | No | |||
| Fuel capacity | 18.9 L 5 U.S. gal. |
Engine
| Type | Four-cycle gas | |||
|---|---|---|---|---|
| Displacement | 400 cc 24.4 cu in. |
|||
| Power | 10.1 kW 13.5 hp |
|||
| Cooling system | Air |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) | |||
|---|---|---|---|---|
| Final drive | Fully enclosed; oil bath | |||
| Four wheel drive | No | |||
| Traction assist | Mechanically activated differential lock | |||
| Descent control | No |
Suspension
| Front | Independent spring-over-shock, single A-arm | |||
|---|---|---|---|---|
| Rear | Two high-floatation, low pressure tires (solid axles) |
Brakes
| Type | Wet disk in transaxle | |||
|---|---|---|---|---|
| Park brake | Wet disk, hand operated |
Tires / Wheels
| Front | Two 22.5x10-8 4PR all-terrain on steel wheels Two 22.5x10-8 4PR turf on steel wheels |
|||
|---|---|---|---|---|
| Rear | Two 25x13-9 4PR all-terrain on steel wheels Two 25x12-9 4PR turf on steel wheels |
Dimensions / Capacities
| Wheelbase | 1770 mm 69.7 in. |
|||
|---|---|---|---|---|
| Weight | Dry: 415 kg 915 lb |
|||
| Length | 2642 mm 104 in. |
|||
| Width | 1525 mm 60 in. |
|||
| Height | 1108 mm 43.6 in. |
|||
| Tread centers | Front: 1270 mm 50 in. Rear: 1220 mm 48 in. |
|||
| Ground clearance | Under transaxle: 15.2 cm 6 in. Foot platform: 24.9 cm 9.8 in. |
|||
| Fuel capacity | 18.9 L 5 U.S. gal. |
|||
| Cargo box dimensions | 100.3 x 124.5 x 22.9 cm 39.5 x 49 x 9 in. |
|||
| Cargo box capacity (weight) | 227 kg 500 lb |
|||
| Payload capacity | 408 kg 900 lb |
|||
| Towing capacity | 408 kg 900 lb |
|||
| Hitch | Optional: 3.175 cm 1.25 in. |
Features
| Color | Green/yellow | |||
|---|---|---|---|---|
| Power steering | No | |||
| Battery / Alternator / Power port | 340 CCA At 3700 rpm: 16.6 amp Regulated, 12-V outlet |
|||
| Instrumentation | Fuel gauge, hour meter | |||
| Storage | Cup holders, glove box | |||
| Seating | Bucket seats |
Additional information
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected | 21-Oct-2021 |
