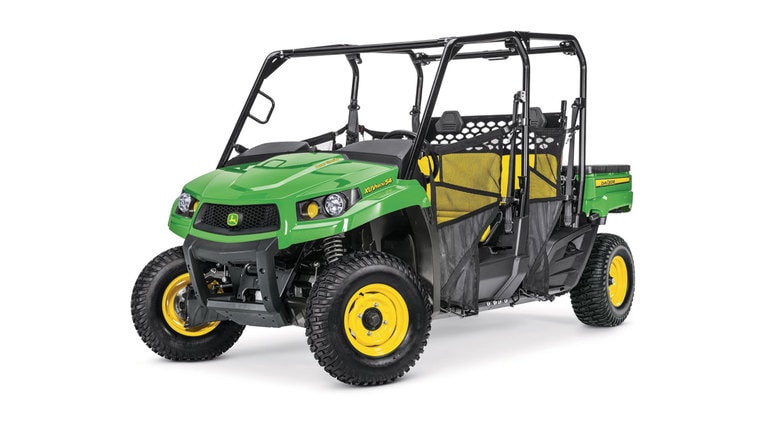

XUV590M S4 Crossover Utility Vehicle

The Gator™ XUV Mid-Size Crossover Series Utility Vehicles have a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.

Key elements of the drive system include:

Variable-speed drive

Variable-speed drive (shown on XUV590 engine)

The variable-speed drive consists of two clutches and a drive belt:

• Drive clutch is attached to the engine.
• Driven clutch is attached to the transaxle.

Features include:

• Ability to creep along slowly to maneuver in tight spaces
• Standard full-clutch enclosure with a high intake and exhaust ensures a dry belt when crossing water
  • High-speed fan on drive clutch provides longer belt and clutch life by keeping components cool
• TEAM® industry clutches provide high performance and longevity

How the variable-speed drive works:

1. As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.

Four-wheel drive (4WD), transaxle, mechanical front-wheel drive (MFWD), and constant-velocity (CV) shafts

XUV590 transaxle

XUV560/XUV590 MFWD

4WD

• Selectable 4WD system with a limited slip front differential and dash-mounted electronic rocker switch
  • Provides exceptional traction in challenging conditions
  • Maintains turf-friendly operation in two-wheel drive (2WD) mode
  • Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
  • More control descending hills with 4WD engaged, as all four wheels help slow the vehicle down
    • Clutch engagement still necessary to prevent free coasting

Transaxle

• Low, high, neutral, reverse, and park transaxle
• Automotive-style, integrated park position in transmission
• To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.
• Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
• High range for maximum vehicle speed
• Cast-aluminum design for lower weight
• Helical forward and reverse gears are used for quiet operation
• Rear traction assist (differential lock) is controlled with an electronic rocker switch
  • NOTE: Locked differential design may increase scuffing of the turf during turns because the rear wheels are turning at the same speed through a turn.
• Contains gear-case for transferring power to the MFWD
• Splined shaft interfaces for maximum torque transfer and durability
• All drive gears machined from highest grade gear steel
• Vertically oriented oil drain for easy maintenance
• Protected by a skid plate

MFWD

• Electronically selectable by the operator
  • Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
• Near instantaneous torque to the front wheels after engaging switch
• Vertically oriented oil drain for easy maintenance
• Protected by a steel skid plate and frame

Drive shafts

• Front and rear CV shaft diameter measures 23 mm (0.9 in.) and designed for high engine torque
• Propshaft (transaxle to MFWD shaft) diameter measures 23.8 mm (0.94 in.) and designed for high engine torque
• All CV shaft joints are maintenance free and protected by exclusive inboard and outboard thermoplastic elastomer (TPE) boots for durability. TPE material is more puncture resistant than neoprene, which is used by many competitors.

TEAM is a trademark of TEAM Industries.

586-cc (35.8-cu in.) gasoline engine

Radiator

The Gator™ XUV590E and XUV590M Crossover Series Utility Vehicle is powered by a 586-cc (35.8-cu in.), inline twin-cylinder, electronic fuel-injected (EFI) gasoline engine. The engine is electronically controlled through an engine control unit (ECU) to ensure optimal engine performance.

The engine offers the following performance and reliability features:

• 23.8 kW (32 hp*) at 5600 rpm
• 77 km/h (48 mph) top speed
• Electronic fuel injection (EFI) with engine control unit (ECU)
• Liquid cooled
• Designed for cold-weather starting (tested to -28.9°C [-20°F])
• Wet-sump lubrication system
• Spin-on oil filter and oil pan drain accessible through skid plate for easy servicing
• High air-flow air filter
• 875-W (65 maximum amp) charging system for accessory capability (see engine section for alternator output curve)
• Spark-arresting muffler is United States Forest Service (USFS) approved
• Low fuel consumption and large 28-L (7.4-U.S. gal.) fuel tank
• Environmental Protection Agency (EPA) and California Air Resources Board (CARB) compliant

* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

Instrument panel and backlit switches

Sealed under-hood storage

Ergonomically placed controls

In-dash cup holders and sealed glove box

S4 optional under-seat storage

• Display features include:
  • Speed
  • rpm
  • Fuel
  • Mechanical front-wheel drive (MFWD)/rear diff-lock
  • Gear position
  • Hour meter
  • Service interval warning light
• Operator-centric design provides class-leading ergonomics and comfortable seats
  • Easy entry/exit and pass through for operator and passenger
  • Optimal seating position provides more legroom
  • Automotive-like ergonomics
  • Excellent comfort while driving
• Best-in-class sealed storage volume of 34 L (9 gal.) with a large in-dash glove box and under hood storage. An additional 34 L (9 gal.) of under-seat storage is available on the S4 models.
• Hinged hood rotates open without tools for access to storage
• Side-by-side seating provides ample room for one operator and one passenger
  • Seats tilt forward for ease of service and to keep dry during outdoor storage
• Two cup holders are located within reach of the operator's station
• Standard 12-V direct current (VDC) outlet is conveniently located on the instrument panel
• Seven predrilled dash switch locations with snap out caps for various electrical accessories
• Occupant protective structure (OPS) with three-point seat belts and passenger side grab handle located on front post
• Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear, neutral, or park.

The cargo box consists of a high-density polyethylene copolymer composite material that eliminates rust, dents, and reduces noise. This large, one-piece design has rounded inside corners to ensure material removal when tilted. The composite box is highly ribbed and supported with a welded, steel-ladder structure to ensure hard-driving performance and longevity. The three highly styled exterior pieces are made of TPO for extra durability.

Cargo box tailgate

Tailgate handle

Tailgate pivot and removal feature

Removable lanyards

The tailgate can be opened or removed for easier cleanout and to carry longer items. It features truck-like performance and can be operated with one hand.

The tailgate’s pivot point is made of hardened steel for durability and designed for tool-free removal. The standard lanyards can also be disconnected without tools to remove the tailgate for convenient loading and unloading tasks.

Cargo box tilt and removal

Integrated handle for manual cargo box tilt (both sides)

Tilted cargo box

The cargo box ease of use is critical to performing tasks quickly and efficiently. Starting with the truck-style tailgate, the removal of content in this cargo box could not be easier. The manual release also functions as the lift lever, done in a smooth, one-step motion. It can even be tilted from both sides of the vehicle. To reduce the overall effort of lift, the pivot point of the cargo box is closer to the center. The combination of easy-to-use attributes makes this cargo box best-in-class.

For servicing the vehicle’s systems, the cargo box is easily removable. With the removal of two bolts, the cargo box can easily be detached from the vehicle frame.

Integrated tie-down points

Integrated tie-down point in cargo box bed

Additional tie-down points

The cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

• Flip-up D-shaped rings in all four corners inside the cargo box bed
• Multiple points along the edge of the cargo box side walls
• Tie-down bars on either side of the cargo box with optional cargo box rail kit. This kit also provides a mounting system using accessories that possess the 25.4-mm (1-in.) quick clamp.

Optional accessories

Cargo box rail system

Box mat

Cargo box wall extensions (shown on RSX)

Optional accessories for the cargo box include (see price pages or JDConfigurator for complete list):

• Cargo box rail system
• Cargo box mat
• Cargo box wall extensions
• Spare tire rack
• Bucket holder

Specifications

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.

XUV front suspension detail

To complement the comfortable operation station, the XUV560 and XUV590 Series are equipped with four-wheel independent suspension. This unique suspension set-up provides an unparalleled ride over challenging terrain and excellent handling through corners.

The engineering team, in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, built a capable suspension system for class-leading operator comfort no matter what the terrain.

Dual A-arm front suspension features include:

• Dual, wide arch A-arm design provides maximum front-wheel control, precise steering, and maximum ground clearance out to the wheel
• 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
• Adjustable coil-over shocks absorb the most demanding terrain
• Solid anti-roll bar with fully rubber isolated connecting links and pivots is tuned to provide the most agile and predictable handling
• Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
• Increasing vehicle width during compression for additional stability.
• High-strength ASTM 80-55-06 ductile cast-iron knuckle and upper A-arm to support the high stresses of the shocks, constant-velocity (CV) shaft, and wheels
• Automotive-style, fully boxed and welded, high-strength steel, lower A-arms to minimize unsprung mass and maximize strength
• Maintenance-free, rubber torsional A-arm pivots for long life and quiet operation
• CV shaft protection from sticks that may puncture the rubber boot
• Anti-dive front suspension geometry provides a solid platform for confident braking
• Optimized steering geometry using ADAMS CAR simulation to minimize steering effort and maximize terrain feedback

XUV rear suspension detail

Independent rear suspension features include:

• 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
• Unique, independent rear-suspension design ensures a great ride and protection for the CV shafts
• Adjustable coil-over shocks absorb the most demanding terrain
• Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
• Increasing vehicle width during compression for additional stability.
• High-strength ASTM 80-55-06 ductile cast-iron knuckle, lower A-arm, and upper link to support the high stresses of the shocks, CV shaft, and wheels with the toughness to survive impacts from boulders
• Maintenance-free rubber torsional A-arm pivots for long life and quiet operation

Optional Fox™ Shocks are available to factory install

Exclusive aluminum-body, high-pressure monotube FOX racing shocks

• Fully adjustable spring preload for different driving styles
• High-pressure nitrogen gas is separated from the damping oil by an internal floating piston (IFP). The separation prevents aeration (frothing) and viscosity degradation of the oil which improves damping consistency and performance fade.
• Pressure and heat generation in the monotube is less than a traditional twin-tube shock, allowing for better vehicle control in aggressive conditions.
• The single aluminum shell of the monotube design allows for more efficient heat rejection and lower overall unsprung mass.
• Mounting the shaft end of the shock to the suspension arm lowers the unsprung mass of the suspension system, leading to improved suspension response.

NASCAR is a trademark of NASCAR. INDYCAR is a trademark of Brickyard Trademarks Incorporated. Formula 1 is a trademark of Formula One Licensing BV, a Formula One Group Company.

XUV590M with power steering

The Gator™ XUV590M Utility Vehicles are equipped with rack and pinion steering with power steering. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort.

Automotive-type, rack-and-pinion steering features include:

Optional electric power-assist steering (EPAS) system. Features of EPAS include:

• Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
• The system is speed sensing and adjusts steering effort as the speed of the vehicle changes.
  • As speed increases there is less steering assist for improved road feel.
  • As speed decreases steering assist increases to give lower steering efforts for improved maneuverability.
• A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
• Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.
  • Steel ball-bearings secure the steering shaft and delivers smooth, responsive operation
  • Tight turn radius of 3.7 m (12.3 ft) for excellent maneuverability
  • Completely sealed rack-and-pinion for long life
  • Low steering ratio (lock-to-lock steering wheel rotations) provides more responsive steering and less operator input
  • Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
  • Ackerman steering design provides more responsive steering, decreases tire wear when used on hard surfaces and is turf friendly (see description below)
  • Minimal bump steer eliminates unintended vehicle direction changes when traversing terrain and permits less feedback to the steering wheel (see description below)

The tire scrubbing, which also creates unwanted heat and wear in the tire, can be eliminated by turning the inside wheel at a greater angle than the outside one (Ackerman steering).

NOTE: Some competitors use parallel steering instead of Ackerman steering.

Bump steering defines the change in the forward steering angle (thus wheel position) as the suspension travels through its full motion. A large amount of angular change (5 degrees to 7 degrees) will alter the vehicle's direction and excessively move the steering wheel.

The exclusive, convertible cargo rack design offers rear seating for two passengers and with a flip of a lever, expands the cargo capacity of the XUV560 S4 and XUV590 S4 by 48 percent.

The convertible cargo rack design offers the ultimate in flexibility for multi-passenger seating capacity and utility.

Most of the time a vehicle is only transporting one or two people, but at any given moment a third or fourth passenger may come along. The quick and simple convertible cargo rack can be switched back and forth in seconds with a flip of a lever. It provides comfortable rear seating with choice of ample leg room or 48 percent more cargo capacity.

Up position

Down position

Carrying multiple workshop products

Some key points about the convertible cargo rack:

• Offers additional cargo volume of 0.12 m³ (4.3 cu ft) and 90.4-kg (200-lb) capacity.
• Efficient one-step conversion from rear seat to cargo rack in 2-3 seconds (and vice-versa) can be easily done by one person

StarFire™ 3000 Receiver and GreenStar™ display (GS) installed on Gator™ RSX

The AMS integration kit allows the operator to mount a StarFire receiver and GreenStar display (both receiver and display sold separately) to the Gator Utility Vehicle.

Key features of the AMS integration kit:

• Compatible with StarFire iTC™ and 3000 Receivers
• Compatible with GreenStar 2 1800, GreenStar 2 2600, and GS3 2630 Displays
• GS display mounts to the occupant protective structure (OPS) for convenient access
• Ability to mount receiver to the poly roof, or on the OPS alone
• Switched power to receiver and display allows the operator to run the AMS equipment even when the vehicle’s ignition is off. Receiver and display will not turn off when the vehicle’s ignition is turned on and off.

Common applications:

• Boundary mapping
• Flagging field obstacles
• Soil sampling

Compatibility:

• Compatible with Gator XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Gator Utility Vehicles. Compatible with full windshield, poly cab.

Backup alarm components

A must for any worksite, the backup alarm kit alerts pedestrians when the Gator™ Utility Vehicle is operating in reverse. This kit includes an alarm, mounting bracket, wire harness, and switch. Does not include grease.

Front CV guards

Rear CV guards

CV guards add additional protection for the A-arms, brake lines, and CV half shafts:

• Aluminum guards handle impacts while maintaining a low, unsprung mass
• Includes front and rear guards
• Easily bolts to the A-arms with three bolts per corner (12 bolts total)
• Drainage holes provided to prevent buildup of dirt, grass, and other loose materials

Gator™ XUV 550, shown with front brushguard and Hella® performance spot lights (BM24108)

The front brushguard for the Gator XUV 550, XUV550 S4, XUV560, XUV560 S4, XUV590, and XUV590 S4 not only looks great, but it is also tough enough to take on the toughest terrain:

• The aggressive appearance is no accident – the brushguard is made of large-diameter, 1.75-in. (44.45-mm) tubing and thick steel plates to protect the critical elements of the front of the vehicle, including the grille, lights, and hood.
• Possesses welded brackets for quick installation of the Hella light kits
• Rotates forward without tools for easy access to service points and additional storage under the hood
• Design permits easy access under hood without modification
• Design provides good approach angle for leveraging over obstacles in front of vehicle
• Removable plate permits installation of optional winch and front receiver

Hella is a trademark of Hella KG Heuck & Co.

Shown on Gator™ XUV 550 with optional front brushguard and HELLA® performance spotlights

Tire shown at angle

Protect the Gator XUV 550, XUV550 S4, XUV560, XUV560 S4, XUV590, and XUV590 S4 by adding front fender guards to the vehicle. Large, 44.45-mm (1.75-in.) diameter tubing provides superb protection for the front grille, lights, and fenders.

HELLA is a trademark of HELLA KG Hueck & Co.

Shown on Gator™ XUV 550

Rear bumper detail

Add additional protection to the rear of the Gator XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicle by adding BM23362 rear bumper.

Cargo box pail holder

Cargo box pail holder

The 5-gal. (18.9-L) pail holder is ideal for operators who want to maximize the work capability of their Gator™ Utility Vehicle. The 5-gal. (18.9-L) pail holder keeps pails in place within the cargo box, ensuring that they stay safe and secure. Featuring the quick-clamp mounting system, it mounts easily to the cargo rails of the cargo box with just one clamp.

Shown on Gator™ XUV 550

The cargo box bed mat not only protects the floor of the cargo box from scratches and dents, but it also provides additional cushioning and slip resistance to items being hauled in the cargo box.

Cargo box power lift installed

Backlit dash-mounted switch for easy operation

The Gator™ XUV Series can be equipped with an optional power lift for the cargo box. This is one of the most important accessories for increasing work efficiency. It is an excellent complement to this highly capable utility vehicle.

The power lift offers the following features:

• Linear actuated
• Capable of lifting a maximum vehicle cargo box load of 182 kg (400 lb)
• Lifts box to 45 degrees from horizontal for ease of service and cargo box load removal
• Quick horizontal-to-45-degree time
• Can be installed in minutes using the vehicle's prewired connectors and mounting points
• Compact design fits nicely around transmission and linkages, providing full protection
• Weather-resistant enclosure and seals (IP 65 capable)
• Driven by 12-VDC motor
• Motor is protected with auto reset breaker inside the motor housing

Shown on Gator™ XUV 550

Increase the versatility of cargo box on Gator XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles by adding cargo box rails. These sturdy rails attach easily to the cargo box, and allow for a variety of accessories to be added and removed with ease.

For use with select accessories featuring the 25-mm (1-in.) quick-clamp mounting system.

Increase the cargo capacity of Gator™ XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles by adding cargo box wall extensions to the cargo box. This accessory is easy to attach to, and remove from, the cargo box rails, thanks to the quick-clamp mounting system. The tailgate is able to be opened and closed while the extensions remain in place, allowing for easy dumping.

NOTE: Not compatible with operator protection system (OPS) poly cab.

Spare tire rack

The spare tire rack is ready to be put to good use if the terrain claims a tire. The tire rack will hold either the front or rear tire. It mounts to both the cargo bed and the cargo box rails (required) to keep the spare tire secured through the roughest terrain.

Compatible with Gator™ RSX, XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, and XUV590 S4 Utility Vehicles.

Gator XUV560/590i rear seat cover - black

Available through OrderZone

Each kit contains one bench base cover, one backrest cover, and installation instructions.

Special Features:

• Exceptional abrasion, tear, and puncture resistance
• Constructed with military-grade Cordura™ fabrics
• Protects original equipment manufacturer (OEM) seats from mud, snow, and debris
• Quick and easy installation
• Available in black or REALTREE HARDWOODS HD® pattern
• Front seat has modular lightweight load-carrying equipment (MOLLE) webbing between driver and passenger for MOLLE pouches
• Limited 1-year warranty
• Made In U.S.A.

Compatible with Gator XUV560i and XUV590i S4 Utility Vehicles.

REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited. Cordura is a trademark of Invista.

Gator XUV560/590i rear seat cover - camo

Available through OrderZone

Each kit contains one bench base cover, one backrest cover, and installation instructions.

Special features:

• Exceptional abrasion, tear, and puncture resistance
• Constructed with military-grade Cordura™ fabrics
• Protects original equipment manufacturer (OEM) seats from mud, snow, and debris
• Quick and easy installation
• Available in black or REALTREE HARDWOODS HD® pattern
• Front seat has modular lightweight load-carrying equipment (MOLLE) webbing between driver and passenger for MOLLE pouches
• Limited 1-year warranty
• Made In U.S.A.

Compatible with XUV560i and XUV590i S4 Utility Vehicles.

REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited. Cordura is a trademark of Invista.

Receiver hitch and recovery loops shown installed

Rugged and versatile, this is not an ordinary front receiver hitch. Made from welded steel, the recovery loops are strong enough to pull even the toughest loads, and are perfect for securing the vehicle to a trailer. This receiver hitch serves as the platform for the winch base. The receiver-type front hitch accepts the 51-mm (2-in.) drawbar (sold separately).

Required for mounting BM23995 (Warn® winch – Gator™ XUV 550), BM24019 (Warn winch – XUV 550 S4), BM26248 (Warn winch – XUV560, XUV560 S4, XUV590, XUV590 S4), and BM24437 (Warn winch – RSX Utility Vehicle).

Warn is a trademark of Warn Industries, Inc.

Drawbar kit for receiver hitch

Description:

• Kit includes a 51-mm (2-in.) drawbar, 10-mm (0.39-in.) pin, and hair cotter pin
• Steel construction has a 25-mm (1-in.) ball hole size
• Can be mounted in the standard rear receiver hitch or the optional front receiver hitch
• Compatible with all Gator model year 2011-current XUV560, XUV560 S4, XUV590, XUV590 S4, XUV 625i, XUV 825, XUV 855, RSX860, and M-Gator™ A2 Utility Vehicles
• Compatible with HPX 615 and 815 Utility Vehicles
• Compatible with XUV 620i and XUV 850D Utility Vehicles

NOTE: Compatible with all Gator HPX Utility Vehicles if equipped with an optional 51-mm (2-in.) front receiver hitch. An optional 51-mm (2-in.) rear receiver is not available for the Gator HPX models. A 32-mm (1-1/4-in.) rear receiver hitch and drawbar are available for the Gator HPX models.

Shown on XUV 550 S4

Expand the work capabilities and cargo capacity of Gator™ XUV 550, XUV550 S4, XUV560, XUV560 S4, XUV590, and XUV590 S4 by adding the front rack. Made of heavy-duty materials, the front rack not only increases the functionality of the Gator, it is also designed to enhance the aesthetics of the vehicle. This generously sized rack, 1270-mm (50-in.) long by 381-mm (15-in.) wide by 102-mm (4.5-in.) deep - outside dimensions, will haul up to a 45.4-kg (100-lb) payload.

The rack easily mounts to the required front brush guard. Once the rack is mounted, it tilts forward in conjunction with the brush guard to allow full access to under-hood storage and service points.

Horn components

Kit includes:

• Horn
• Mounting brackets
• Wire harness and switch

The switch mounts on the dash of the vehicle, while the wiring harness connects to the main vehicle harness.

Beacon light

Features and benefits:

• 3-in. (76-mm) round, light-emitting diode (LED) strobe light provides excellent visibility for vehicle bystanders
• Especially useful for working around properties and job sites
• Acrylic amber lens resists scratching and scuffing
• Impact-resistant nylon housing
• SAE J845 (Class 3)-compliant
• UL recognized
• Stands 4.4 in. (111.5 mm) tall

Compatible with the following vehicles:

• Model year 2006 to current Gator™ HPX Utility Vehicles
• Requires poly roof and operator protection system (OPS) switch bank for mounting
• Requires beacon light harness kit
• Gator XUV 620i and 850D Utility Vehicles
• Requires poly roof and OPS switch bank for mounting
• Requires beacon light harness kit
• Model year 2011 to current Gator XUV 625i, 825i, 825i S4, 855D, and 855D S4 Utility Vehicles
• Requires poly roof and OPS switch bank for mounting
• Requires beacon light harness kit
• Gator XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590i, XUV590i S4 Utility Vehicles
• Requires OPS switch bank and brake/tail light for brake light mounting or OPS switch bank and poly roof for roof mounting
• Requires beacon light harness kit
• Gator RSX Utility Vehicles
• Requires OPS switch bank and brake/taillight for brake light mounting or OPS switch bank and poly roof for roof mounting
• Requires beacon light harness kit

Beacon light harness kit (shown on Gator™ XUV560 S4)

The beacon light harness kit is required when installing the beacon light.

The kit includes the switch to mount in the operator protection system (OPS) switch bank and wire harness between the OPS switch bank and beacon light.

Shown on Gator™ XUV560 with poly roof and rear screen

Make the Gator XUV560 and XUV560 S4 more visible in all light conditions by adding the brake and tail light kit to the operator protection system (OPS) of the vehicle.

Requires brake and tail light installation kit for mounting for model year 2015 and earlier Gator XUV550 and XUV550 S4 Utility Vehicles.

Brush guard light harness kit

The brush guard light harness kit is required when installing the light kits to the brush guard or PreRunner bumper on the Gator™ RSX.

The kit includes the switches and wire harnesses.

Front OPS / roof light harness kit

The front OPS/roof light harness kit is required when installing the light kits to the front of the OPS or roof. Also requires OPS switch bank.

The kit includes the switch and wire harnesses from the OPS switch bank to the lights.

OPS with power wire and switch bank

Switch bank (detail)

Product attributes:

• Accommodates up to three sets of OPS lights
• Allows for simple wire routing - only two wires run through the OPS or roll-over protective structure (ROPS) tubes; each light kit has its own switch and wiring harness
• Switches are located in the OPS or rollover protective structure (ROPS)

Compatible with:

• Model year 2011 - current Gator™ XUV, HPX Gas, HPX Diesel, and M-Gator A2 Non-Military Utility Vehicles
• Model year 2012-2013 Gator XUV 550, XUV 550 S4, and RSX Utility Vehicles
• Model year 2013 - current Gator XUV 825i S4 and XUV 855D S4 Utility Vehicles
• Current Gator XUV560, XUV560 S4, XUV590, and XUV590 S4 Utility Vehicles

Rear OPS / roof light harness kit

The rear OPS/roof light harness kit is required when installing the light kits to the rear of the OPS or roof on the Gator™ S4 Vehicles. Also requires OPS switch bank.

The kit includes the switch and wire harnesses from the OPS switch bank to the lights.

Work lights (rear mounted)

Increase the capability of the Gator™ Utility Vehicle by adding work lights. Lights mount to the front or rear of the poly roof or directly to the operator protection system (OPS).

Kit includes the pair of work lights and hardware. Requires necessary light harness kit based on desired mounting location.

Lights can also be installed in a low mount position behind the front bumper.

Product attributes:

• This flood light kit provides a wide range of light, making it ideal for tasks at night
• Especially useful for working around properties and job sites
• Requires OPS switch bank when mounted to roof or OPS

Compatible with:

• XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590i, XUV590i S4
• HPX
• XUV 625i, XUV 825i, XUV 825i S4, XUV 855D, and XUV 855D S4
• RSX Utility Vehicles

Shown mid-size XUV

The OPS rearview mirror for Gator™ Utility Vehicles can be installed when equipped with an OPS.

The rearview mirror can be positioned in multiple locations on the OPS and offers expanded visibility for the operator.

Product attributes include:

• Composite components made of impact resistance materials
• Installs with quick clamp to OPS tube
• Compatibility with all Gator Utility Vehicles equipped with an OPS

Shown on Gator™ HD XUV

Shown on HD XUV

The OPS side mirrors for Gator Utility Vehicles can be installed when they are equipped with OPS.

The side mirrors can be positioned in multiple locations on the OPS and offers expanded visibility for the operator.

Product attributes include:

• Composite components made of impact-resistant materials
• Installs without tools and easily adjustable
• Compatibility with all Gator HPX, XUV 620i, XUV 850D, XUV 625i, XUV 825i, XUV 825i S4, XUV 855D, XUV 855D S4, XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, RSX, M-Gator A2, and M-Gator A3 Utility Vehicles equipped with an OPS

NOTE: OPS side mirrors are not compatible with the deluxe cab or poly cabs (poly cabs include standard mirrors).

Shown on Gator™ XUV550 Utility Vehicle

Shown on RSX

The side mirrors are secured to the poly door and offers expanded visibility for the operator.

Product attributes include:

• Composite components made of impact-resistant materials
• Easily adjustable
• Compatibility with all Gator XUV550, XUV550 S4, and RSX Utility Vehicles equipped with the poly cab doors

Canvas cab doors

• Made from premium, heavy-duty 600 denier-solution dyed, water-resistant polyester with UV stabilizers, for mold and tear resistance
• Durable PVC window resists yellowing or cracking. Window opens easily with a zipper and can be secured in place with straps.
• Automotive-style handle and latch for easy entry
• Aluminum inner frame for strength and to reduce weight of door
• Integrated storage pockets
• Installs in minutes with basic tools
• These doors are meant to be for basic weather protection, the doors do not have a bulb seal, therefore do not seal tightly against the operator protection system (OPS) frame like the poly cab doors.
• Compatible with full poly windshield, glass windshield, poly roof, canvas roof/rear panel (if poly windshield is installed), rear panel, poly rear window

Poly cab doors

Improve the occupant protective structure (OPS) poly cab seal on Gator™ Utility Vehicles with the addition of the seal kit which installs around the doors, windshield, roof, and cab frame. It is designed to conform to and integrate with the Gator XUV550, XUV560, and XUV590 S4 Utility Vehicles equipped with an OPS.

For a complete poly cab, the operator would also order the poly roof, rear panel, and one of the three following windshields:

• OPS full poly windshield
• OPS full abrasion-resistant flip-out windshield
• OPS glass windshield with wiper

Floor mats (front)

Floor mats (rear)

This washable rubber floor mat provides an added layer of protection to the floor of the vehicle, and guards against dents, dings, and scratches.

Kit comes front left and right floor mats, and rear left and right floor mats.

XUV590 with panel

Front fender panel

The front fender panel kit is for use when a vehicle with factory-installed half doors is modified to include side nets or full poly doors. It is designed to conform and integrate with XUV590 Utility Vehicles.

Glove box lock (locked position)

Glove box lock (unlocked position)

Keep gear secure by adding the BM24200 glove box lock to Gator™ XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles.

Heater kit

Heater kit

The heater kit conveniently mounts under the storage tub, and provides both heat and defrost.

Parts in the kit:

• Heater core and blower
• Wire harness
• (2) 2-in. (25-cm) adjustable vents
• Windshield vent
• Three-position blower switch (off, low, high)
• Mounting hardware

Occupant protective structure (OPS) rear panel (shown with poly roof, deluxe light kit, rear-mounted mid-range light kit)

The OPS rear panel for the OPS poly cab is ideal for outdoor enthusiasts and others desiring four-season weather protection.

The poly cab can be sold as individual components; OPS poly or glass windshield, OPS poly roof, OPS rear panel, and doors kit. This gives operators the flexibility to configure the vehicle to meet their unique needs.

The OPS rear panel can be coupled with the half or full windshield to help reduce dust and airflow in the operator station.

Key features of the rear panel:

• Rear panel is thermoformed from thick acrylonitrile butadiene styrene (ABS) plastic for impact resistance, durability, and style
• Three-piece sliding glass window, which provides excellent visibility and ventilation
• Installs in minutes with quick clamps to the OPS structure

Compatible with:

• XUV 550 S4 Utility Vehicles

Door closeout panel

Turn heads with these stylish door closeout panels. These polycarbonate panels cover the opening in the doors and feature the Gator™ eye screen printed to the surface, protected by a final layer of clear coat. The closeout panels have PVC foam around the perimeter of the panel to restrict vibration between the panel and door.

The kit includes left- and right-hand door closeouts and self-tapping screws.

Compatible with:

• XUV590
• RSX860

Poly cab door closeout panels

The poly cab door closeout panels are required on the Gator™ XUV590 and XUV590 S4 Utility Vehicles when the poly cab doors are installed on the vehicle. These closeout panels provide the close off between the poly cab doors and styled components and fuel tank.

Not required on the Gator XUV560 or XUV560 S4.

Poly doors

The poly doors kit for the operator protection system (OPS) poly cab is ideal for outdoor enthusiasts and others desiring four-season weather protection. It is designed to conform and integrate with the Gator™ XUV550, XUV560E/M, and XUV590E/M Utility Vehicles equipped with OPS.

This kit comes standard with an adhesive seal kit to improve enclosure of the operator station. For a complete poly cab, the user would also order the poly roof, and one of the three following windshields.  When installed on the XUV590, the rear panel is also required.

• OPS full poly windshield
• OPS full abrasion-resistant, flip-out windshield
• OPS glass windshield with wiper

Comfort straps

Kit includes two comfort straps for the left and right seat belts.

• Provides relief to the operator's and passenger's upper body when driving over rough terrain by allowing the seat belt to stretch when the seat belt locks
• Moves the upper mounting point of the seat belt down 6 in. (152 mm)
• Can be mounted to both the driver- and passenger-side upper mounting point of the three-point seat belt
• Compatible with all model year 2017 - current Gator™ HPX, XUV625i, XUV825i, XUV825i S4, XUV855D, XUV855D S4, XUV560, XUV560 S4, XUV590i, XUV590i S4, and RSX860i Utility Vehicles when equipped with standard Occupant Protective Structure (OPS)
• Compatible only with standard Occupant Protective Structure (OPS), for deluxe cab frame, order BM22703

Sport steering wheel

The must-have option to give the Gator™ RSX, XUV560, XUV560 S4, XUV590, and XUV590 S4 Utility Vehicles the customization they deserve. Color accents and a comfortable feel make this a must have for the sport enthusiast.

Installed stereo and speaker kit

Enhance the Gator™ XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles by adding the stereo and speaker kit. The kit includes lights (not including brake light shown above), speakers, and a convenient netted pouch for extra storage.

The stereo and speaker kit can be easily mounted to the operator protection system (OPS) or rollover protective structure (ROPS) with the quick clamp mounting system. The waterproof top allows this kit to be used without a poly roof; however, it can be used with the poly roofs as well.

The operator must choose one of the following three head units to have complete stereo:

• SWJHD1120 stereo, heavy-duty AM/FM/weatherband/auxiliary
• SWJHD1620 stereo, heavy-duty AM/FM/weatherband//SiriusXM® satellite/iPod® device ready
• SWJHD3620 stereo, heavy-duty AM/FM/weatherband/CD/SiriusXM satellite/USB 2.0
• SWJDABIPDL iPod adaptor cable for SWJHD1620 and SWJHD3620

NOTE: Must order head unit through Parts.
NOTE: Installation requires AM140972 harness.

iPod is a trademark of Apple, Inc.  Sirius is a trademark of Sirius XM Radio Inc.

SWJHD1120 stereo head unit

SWJHD1620 stereo head unit

SWJHD3620 stereo head unit

Features of the canvas roof/rear panel:

• This canvas roof/rear panel is a single-piece construction that mounts to the top and rear of the operator protection system (OPS)
• Made from premium, heavy-duty 600 denier-solution dyed, water-resistant polyester with UV stabilizers, for mold and tear resistance
• Durable PVC window resists yellowing or cracking. Window opens easily with a zipper and can be secured in place with straps.
• Installs in minutes
• Compatible with canvas doors on Gator™ XUV590i S4 Utility Vehicles
• Compatible with poly doors
• Compatible with glass windshield
• Requires either OPS glass windshield or full flip-out windshield

Shown on XUV 550 S4

The OPS S4 poly roof provides all-year-round weather protection to the operator and passenger.

Features and benefits:

• Features the OPS quick-clamp mounting system – the one-piece acrylonitrile butadiene styrene (ABS) plastic roof easily attaches and detaches to the vehicle's OPS with four quick clamps in the corners and two snap clamps in the middle
• Sturdy design allows for the Gator™ XUV S4 Utility Vehicle to be towed at highway speeds while the roof is installed
• Useful for minimizing sun exposure to the operator, passenger, and operating station
• Molded-in water troughs route water away from the operator and passenger
• Acts as the foundation to build an OPS poly full enclosure (designed to work with the OPS poly full windshield kit and OPS poly rear panel and doors kit)
• Compatible with a variety of OPS light kits

Speed limiter

The Gator™ XUV590i and XUV590i S4 Gator Utility Vehicles are equipped with electronic fuel injection (EFI), controlled by an electronic controller unit (ECU).

Utilizing this ECU and the speed limiter kit, the top speed of the vehicle can be limited to 28 mph (45 km/h).

The speed limiter offers the following:

• Mounts directly in the glove box
• Limits top speed to 28 mph (45 km/h) in the ON position without having to operate the vehicle in low gear
• Vehicle has full acceleration and work capability between 0 mph to 45 mph (72 km/h) when the speed limiter is in the OFF position
• Controlled with a key that can be removed in the ON or OFF position
• Two keys per kit

25-gal. (94.6-L) bed sprayer

The 25-gal. (94.6-L) Gator™ bed sprayer is designed to work with the XUV 550 and RSX Series Gator vehicles. It provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray, and deicer. It comes complete with a 43-in. (1.1-m) boom that sprays a 120-in. (3-m) swath. It is equipped with a 19-ft (5.8-m) hose and a spray wand for spot spraying lawns, shrubs, trees, etc. The fully adjustable, brass spray wand tip achieves streams up to 30 ft (9 m). It comes equipped with rubber feet and custom brackets, which secure to the Gator bed for a no-tools mount.

Special features:

• 25 gal. (94.6 L) capacity
• Includes sprayer remote control for added convenience
• Brackets secure to Gator bed, no bungee or straps required
• No-tools mounting (after initial install)
• Convenient side mount hose wrap

This product requires accessory wire harness (AM140972) sold through John Deere.

Additional features:

• 100 psi SHURflo® diaphragm-type pump is designed for high hour commercial applications. It can be run dry without damage
• The fully adjustable, brass spray wand tip achieves streams up to 30 ft (9 m)
• Equipped with a 19-ft (5.8-m) hand-wand hose with side-mount hose tender for convenience
• Check valves in boom tips prevent siphoning and dripping, which can cause lawn spotting
• Remote control on/off switch with 100-ft (30-m) range
• Easy boom removal for added convenience
• Control valve channels spray to either the boom or spray wand
• Rugged translucent yellow tank with molded fill-level indicators (in gallons)

Ordering information

Contact a local John Deere dealer for availability and pricing information.


SHURflo is a trademark of SHURflo, LLC.

45-gal. (170.3-L) bed sprayer

The 45-gal. (170.3-L) Gator™ bed sprayer is designed to work with the Gator XUV 550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Series Utility Vehicles. It provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray and deicer. It comes complete with a 43-in. (1.1-m) boom that sprays a 120-in. (3-m) swath. It is equipped with a 19-ft (5.8-m) hose and a spray wand for spot spraying lawns, shrubs, trees, etc. The fully adjustable brass spray wand tip achieves streams up to 30 ft (9 m). It comes equipped with rubber feet and custom brackets, which secure to the Gator bed, for a no-tools mount.

Special features:

• 45-gal. (170.3-L) capacity
• Includes sprayer remote control for added convenience
• Brackets secure to Gator bed, no bungee or straps required
• No tools mounting (after initial install)
• Convenient side mount hose wrap

This product requires accessory wire harness (AM140972) sold through John Deere.

Additional features:

• 100 psi SHURflo® diaphragm-type pump is designed for high hour commercial applications. It can be run dry without damage.
• The fully adjustable brass spray wand tip achieves streams up to 30 ft (9 m)
• Equipped with a 19-ft (5.8-m) hand wand hose with side mount hose tender for convenience
• Check valves in boom tips prevent siphoning and dripping, which can cause lawn spotting
• Remote control on/off switch 100-ft (30.5-m) range
• Easy boom removal for added convenience
• Control valve channels spray to either the boom or spray wand
• Rugged translucent yellow tank with molded fill level indicators (in gallons)

Ordering information

Contact the local John Deere dealer for availability and pricing information.

SHURflo is a trademark of SHURflo, LLC.

45-gal. (170.3-L) high-performance bed sprayer

The high-performance bed sprayer is designed to work with Gator™ XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles. With a 45-gal. (170.3-L) capacity, high-volume electric pump, and premium pistol-grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray and deicer. It is the perfect match for the operator who wants extreme performance. Custom brackets secure the sprayer to the cargo bed for a no tools mount. Cover ground quickly with flexible boom options; a 150-in. (3810-mm) precision folding, 120-in. (3048-mm) standard 3-tip, 30-ft (9.1-m) boomless, or no boom at all (boom sold separately).

High-performance features:

• 45 psi, 3.6 gpm SHURflo™ diaphragm-type pump is designed for high-hour applications and can be run dry without damage
• Premium pistol-grip spray gun, designed for single-hand mist to 35-ft (10.7-m) stream
• Side-mount hose tender for easy hose access and storage
• Glycerin-filled pressure gauge
• TeeJet™ pressure regulation/recirculation valve
• Includes sprayer remote control (LP22912)

Boom options (sold separately):

• Choice of standard boom (LP22911)
• 150-in. (3810-mm) precision spray boom (LP22885)
• 24-ft (7.3-m) boomless spray nozzles (LP22884)

Additional features

• Custom-engineered brackets secure to Gator cargo bed with no tools or additional straps (after initial set up)
• Easy boom removal for added convenience
• Control valve channels spray to either the boom or spray wand
• Rugged translucent yellow tank with molded fill level indicators (in gallons)

Ordering information

Contact the local John Deere dealer for availability and pricing information.

45-gal. (170.3-L) high-performance sprayer
Order number: LP39098

Shown on TH 6x4 with HP 45-gal. Sprayer

The standard Gator boom is compatible with all Gator sprayer models and is sold separately for the HP Gator sprayers. This fixed boom is conveniently sized at 43 in. (1.1 m) and does not extend wider than the Gator bed, but it is perfect for covering ground quickly and thoroughly with a 120-in. (3-m) spray swath.

The boom is ideal for basic spraying application. Three tips and check valves round out this offering (boom only, mounting brackets are provided with sprayers).

Boom Features:

• 43-in. (1.1-m) boom with three tips
• Check valves prevent siphoning and dripping
• Sold separately for:
  • HP 45-gal. Gator Bed Sprayer
  • HP 90-gal. Gator Bed Sprayer
  • HP 45-gal. Gator Bed Sprayer – XUV 550

Shown on TH 6x4 with HP 45-gal. Sprayer

Shown on TH 6x4 with HP 45-gal. Sprayer

The 150-in. (3.81-m) precision boom is compatible with the HP sprayers. This folding boom is made to cover ground quickly and thoroughly with five precision spray tips, TeeJet™ nozzle bodies and commercial grade diaphragm check valves. The outer tips offer versatility with built-in shut offs to allow an adjustable 90-in. (2.3-m), 120-in. (3-m), or 150-in. (3.8-m) spray swath.

150-in. (3.8-m) precision boom features:

• Folding spring hinge
• Breakaway design
• Five TeeJet tips and nozzle bodies
• Adjustable spray swath (90 in., 120 in., 150 in.)
• 1/2-in. industrial-grade rubber hose
• Designed to work with
  • HP 45-gal. Gator™ Bed Sprayer
  • HP 90-gal. Gator Bed Sprayer
  • HP 45-gal. Gator Bed Sprayer – XUV 550

TeeJet is a registered trademark of Spraying Systems Company.

Shown on TH 6x4 with HP 90-gal. Sprayer

HP 90-gal. Sprayer

The 24-ft (7.3-m) boomless spray nozzles are compatible with all HP sprayers. This boom is perfect for covering ground quickly and thoroughly with a 24-ft (7.3-m) spray swath. It is ideal for uneven terrain or where precision spray application is not necessary. TeeJet™ nozzle bodies and commercial grade diaphragm check valves round out this offering.

Boomless spray nozzles feature

• Three TeeJet tips and nozzle bodies
• Commercial-grade diaphragm check valves
• 1/2-in. (12.7-mm) industrial-grade rubber hose
• Designed to work with all HP sprayers :
• HP 45-gal. Gator™ Bed Sprayer
• HP 90-gal. Gator Bed Sprayer
• HP 45-gal. Gator Bed Sprayer – XUV 550

 TeeJet is a registered trademark of Spraying Systems Company.

45-gal. (170- L) Tow-Behind Sprayer

The HP 45-gal. (170-L) Tow-Behind Sprayer offers the ultimate in performance and versatility. With a 45-gal. capacity, high volume electric pump, and premium pistol grip spray gun, it provides an excellent way to apply spray materials such as liquid fertilizer, weed killer, tree spray and deicer. It is the perfect match for the customer who wants extreme performance.

The heavy-duty frame rolls smoothly on 15x6 tires that minimize ground compaction and have a low profile, which maintains a low center of gravity for excellent stability. Cover ground quickly with flexible boom options; a 150 in. (3.8 m) precision folding, 120-in. (3-m) standard three tip, 24-ft (7.3-m) boomless, or no boom at all (boom sold separately).

HP features:

• 45 psi, 3.6 gpm SHURflo® diaphragm-type pump is designed for high hour applications and can be run dry without damage
• Premium pistol grip spray gun, designed for single hand mist to 35 ft (10.7 m) stream
• Front-mount hose tender for easy hose access and storage
• Glycerin filled pressure gauge
• TeeJet™ pressure regulation/recirculation valve
• Includes sprayer remote control

Additional features

• Easy boom removal for added convenience
• Control valve channels spray to either the boom or spray wand
• Rugged translucent yellow tank with molded fill level indicators (in gal.)

Boom options (sold separately):

• 150-in. (3810-mm) precision spray boom
• 24-ft  (288-in.) boomless spray nozzles

SHURflo is trademark of SHURflo, LLC. TeeJet is a registered trademark of Spraying Systems Company.

45-gal. (170-L) tow-behind sprayer

The 45-gal. (170-L)  trail-type sprayer is equipped with a boom that sprays a wide, 120-in. width.

• Three nozzles for efficient broadcast spraying
• Boom folds up against the tank for storage

A 20-ft hose and handgun are provided.

• The 20-ft hose and handgun are helpful when spraying trees or other remote areas that cannot be reached with the sprayer itself
• A 14-in. wand on the handgun is standard equipment

The heavy-duty frame rolls smoothly on 15x6 tires that minimize ground compaction.

• Low center of gravity gives excellent stability
• Equipped with a 4-position hitch
• Rear of the frame is designed so the sprayer will stand upright during storage to reduce the amount of space required

Additional features include:

• Diaphragm-type pump designed for high-hour commercial applications; it can be run dry without damage
• The spray wand is constructed of non-corrosive polypropylene material with Viton® components for remote spray jobs
• Two-wire fused wiring harness complete with quick-disconnects for convenient electrical hookup
• Large cap to easily fill up the tank
• Control valve to channel the spray to the boom or handgun
• Rugged translucent yellow tank with molded fill-level indicators (in gallons)

Specifications

Ordering information

Contact the local John Deere dealer for availability and pricing information.

45-gal. (170-L) tow-behind sprayer
Order number: LP20485

SHURflo is a U.S.-registered trademark of SHURflo, LLC. Viton is a U.S.-registered trademark of DuPont Performance Elastomers. Santoprene is a trademark of Exxon Mobil Corporation.

17AT Cart

• 17-ft ³ capacity
• 1000-lb load limit
• Copolymer polypropylene is compression molded for optimum thickness in all areas and maximum durability
• Heavy-duty, reinforced structural frame with a 25.4-mm (1-in.) diameter, one-piece axle to handle weight, speed, and bumps
• Spring-loaded dump latch for easy dumping and positive lock to prevent accidental unlocking when being towed
• Double-sealed, high-speed roller bearings to handle a 48-km/h (30-mph) maximum speed
• Heavy-duty polyethylene bed
  • Accepts dividers to separate cargo (template included)
• All-terrain knobby tires
  • Provides good flotation and traction in mud, sand, and other wet or soft areas
  • Flexes over bumps and ruts for a smoother, more controlled ride
  • Minimizes ground compaction to save turf and prevent ruts in soft ground
• Poly fenders to keep the operator, cart, and vehicle clean
• Suitable for use with most John Deere utility vehicles equipped with a 48-mm (1-7/8-in.) ball hitch, including Gator™ Utility Vehicle models TX, TX Turf, TH 6x4, TH 6x4 Diesel, all HPX 4x4 models, and all XUV models
• Quality and styling compatible with other John Deere equipment

Ordering information

Contact the local John Deere dealer for availability and pricing information.

17AT Cart

Order number: LPPCT17ATJD

Fertilizer spreader

The Gator™ electric fertilizer spreader is the ideal solution for medium to large size jobs. This unit is engineered to fit heavy-duty XUV Gator Utility Vehicles and designed with a versatile hitch mechanism (sold separately) that allows quick and secure attach/detach capability for easy bed access or switching to a Gator salt spreader. Convenience is at the operator’s fingertips with an electronic variable-speed spinner and electronic gate control from the Gator seat. Adjustable flighting allows spread pattern control to make sure the material is applied where it is needed.

Features:

• Powder-coated steel frame
• Electronic variable-speed spinner
• Electrically actuated control of the flow gate
• 10-in. (25.4-cm) diameter spinner is stainless steel with adjustable flighting to control spreader pattern
• 8:1 ratio with bronze gear, grease filled
• Motor is 1/3 hp, 12-V DC, semi sealed

The mounting hitch and control box are sold separately, available through Order Zone.

Ideal for:

• Granular fertilizer
• Seed
• Granular pesticide
• Granular herbicide

Capacity:

• Volume: 3.0 cu ft (0.1 cu m)
• Weight: 240 lb (108.9 kg)
• Spreading width: up to 20 ft (6.1 m)

Includes:

• Side deflector

Compatibility:

• Compatible with all model year 2011 to current heavy-duty Gator XUV 625i, 825i, 825i S4, 855D, and 855D S4 Utility Vehicles.
• Compatible with all XUV560 and XUV560 S4 Utility Vehicles.
• Gator XUV 620i and 850D Utility Vehicles and XUV 625i, 825i, and 855D Utility Vehicles pre model year 2011 must purchase the Gator hitch-mounting brackets, sold separately through Order Zone.

Ordering information

Available through Order Zone. Contact the local John Deere dealer for availability and pricing information.

Salt spreader

The Gator™ electric salt spreader is the ideal solution for medium to large size jobs. This unit is engineered to fit heavy-duty XUV Gator vehicles and designed with a versatile hitch mechanism (sold separately) that allows quick and secure attach/detach capability for easy bed access or switching to a Gator fertilizer spreader. The Gator salt spreader features an electric-driven auger for consistent salt presentation to the spinner. It draws power from the Gator vehicle, so no external power source is needed. It is powered by a variable-speed controller (sold with hitch) for precise spread pattern control.

Features:

• Powder-coated steel frame
• Spinner motor controlled using the vehicle’s 12-V system
• 10-in. (25.4-cm) diameter spinner is nylon/glass reinforced resin for ultimate corrosion resistance
• 5:1 ratio with bronze gear, grease filled
• Motor is 1/3 hp, 12-V DC, semi sealed

The mounting hitch and control box are sold separately. Available through Order Zone.

Ideal for:

• Salt and large granular materials

Capacity:

• Volume: 3.0 cu ft (0.1 cu m)
• Weight: 240 lb (108.9 kg)
• Spreading width: Up to 20 ft (6.1 m)

Compatibility:

• Compatible with all model year 2011 to current heavy-duty XUV 625i, 825i, 825i S4, 855D, and 855D S4 Utility Vehicles.

• Compatible with all Gator XUV560 and XUV560 S4 Utility Vehicles.

Gator XUV 620i and 850D Utility Vehicles and XUV 625i, 825i, and 855D Utility Vehicles pre model year 2011 must purchase the Gator hitch mounting brackets, sold separately through Order Zone.

Ordering information

Available through Order Zone. Contact the local John Deere dealer for availability and pricing information.

21 Steel Utility Cart

The 21 Steel Utility Cart is the ideal companion for the Gator™ Utility Vehicle:

• 454-kg (1000-lb) load limit
• Dump angle of 35/40 degrees
• Spring-loaded dump latch for easy dumping and positive lock to prevent accidental unlocking when being towed
• Large pneumatic tires
  • Provide good flotation in mud, sand, and other wet or soft areas
  • Flex over bumps and ruts for a smoother, more controlled ride
  • Minimize ground compaction to save turf and prevent ruts in soft ground
• Unique bracket less tailgate means no side channels to obstruct materials when emptying
• When shoveling, recessed flat bolt heads stay out of the way
• Heavy-duty, reinforced one-piece solid undercarriage
• Contoured corner bed design
• Suitable for use with most John Deere utility vehicles equipped with a 48-mm (1-7/8-in.) ball hitch, including Gater™ Utility Vehicle models TX, TX Turf, TH 6x4, TH 6x4 Diesel, all HPX 4x4 models, and all XUV models

Ordering information

Contact the local John Deere dealer for availability and pricing information.

21 Steel Utility Cart
Order number: LPUT21JD

MOLLE device pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Velcro flap closure
• Padded to protect device and contents
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 6-in. (152.4-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Built-in drain hole
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE device pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Velcro flap closure
• Padded to protect device and contents
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 6-in. (152.4-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Built-in drain hole
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE fire extinguisher pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Military-grade rapid extraction clips
• Fits standard round 2.5-lb (1.1-kg) fire extinguishers
• Padded to protect contents
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 6–in. (152.4-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE fire extinguisher pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Military-grade rapid extraction clips
• Fits standard round 2.5-lb (1.1-kg) fire extinguishers
• Padded to protect contents
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 6–in. (152.7-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE large storage pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Dual military-grade zippers and pulls
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 5–in. (127-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Built-in drain hole
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE large storage pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Dual military-grade zippers and pulls
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 5–in. (127-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Built-in drain hole
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE small storage pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Military-grade zippers and pulls
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 5–in. (127-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

MOLLE small storage pouch

Available through OrderZone

Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel

Special features:

• Military-grade zippers and pulls
• Constructed with military-grade Cordura™ fabrics
• Utilizes the MOLLE attachment system
• Pair of 5–in. (127-mm) MOLLE sticks included
• Available in black or REALTREE HARDWOODS HD™ pattern
• Inner liner made of high-density coated pack-cloth nylon fabric
• Limited 1-year warranty
• Made In U.S.A.

Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.

OPS overhead organizer - black

Increase storage capacity on Gator™ XUV 550, XUV 550 S4, and RSX Utility Vehicles by adding the OPS overhead organizer to the OPS or rollover protective structure (ROPS) of the vehicle.

Product attributes:

• Three large cargo compartments, zippered mesh pockets, and pockets for tools and other small items keeps gear organized
• Heavy-weight polyester fabric for maximum durability and resistance to tear
• PVC coated for maximum water resistance and repellency
• One-piece design easily attaches and detaches to the OPS or ROPS with four straps - no tools required
• Compatible with the OPS rear screen, OPS soft roof, and OPS poly roof
• Compatible with Gator XUV 550, XUV 550 S4, and RSX Utility Vehicles

Ordering information

Contact the local John Deere dealer for availability and pricing information.

OPS overhead organizer - black
Order number: LP37044

Under-seat storage

Increase the capability and capacity of the Gator™ XUV560 S4 and XUV590i S4 with convenient under-seat storage that fits below the front bench seat.

Features and benefits:

• 9 gal. (34 L) of additional storage volume
• No tools to install or remove
• Foam sealed to reduce dirt and water penetration
• Two wells for separating stored items
• Two drain holes with plugs

Front turn signals

Rear turn signals and reverse lights

The turn signal kit includes turn signals (front and rear), reverse lights, and four-way flashers (hazards). The turn signal and hazard switch mounts on the dash of the vehicle.

Requires turn signal light harness kit.

Compatible with XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590i, XUV590i S4

NOTE: Not intended for use on public roadways.

Turn signal light harness kit

The turn signal light harness kit is required when installing the turn signal light kit.

The kit includes the switches and wire harnesses.

Compatible with Gator™ HPX, XUV560, XUV550, XUV590i, XUV590i S4, XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles.

1587.6-kg (3500-lb) winch (shown on XUV590)

This winch also requires a winch mount kit and a 50.8-mm (2-in.) front receiver with recovery loops.   Parts in the kit:

• WARN VRX 1587.6-kg (3500-lb) winch
• Roller fairlead assembly
• Hook
• Hook strap
• 3-m (10-ft) hand-held remote
• Winch contactor

WARN is a trademark of WARN Industries, Inc.

Winch accessories kit

Double the pulling power, change the pulling direction, and keep the winch in proper working order.

The accessories kit is essential gear for operators getting the most out of their winch:

• Effectively anchors to trees/boulders
• Change the pulling direction
• Double the pulling capacity

The accessories kit includes:

• Flexible tree strap
• Snatch block
• Shackle

Each kit comes in a black Cordura® heavyweight-nylon soft case.

Cordura is a trademark of INVISTA.

Wireless winch remote

Wireless winch remote mounted on XUV835

Key features

• Wirelessly control winch from up to 15 m (50 ft) away
• Weatherproof transmitter has two large buttons, making it easy to operate even while wearing gloves
• Colored light-emitting diode (LED) lights provide clear operator feedback
• Kit includes wireless transmitter, receiver, holster, wiring, and mounting hardware

Compatibility

• Model year 2012 to current XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles
• Model year 2011 to current XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles
• Model year 2018 to current XUV835 and XUV865 Utility Vehicles

Winch mount for winch-ready vehicles

All power-steering Gator™ XUV590, XUV590 S4, and RSX Utility Vehicles come winch ready from the factory, meaning the main winch harness is pre-installed in the vehicle. Only this winch-ready mount kit is needed.

Parts in the kit:

• Winch harness to run from winch body to pre-installed harness
• Positive battery cable for winch
• Winch fairlead support
• Mount hardware
• Safety labels
• Winch operator’s manual

Shown with optional attachments

The abrasion-resistant half windshield is an excellent solution for operators that want to deflect the main force of wind, but still allow airflow through the operator’s station.

• Made with high-impact-strength abrasion-resistant polycarbonate material
• No tools required - features the operator protection system (OPS) quick-clamp mounting system. The windshield attaches to the OPS or rollover protective structure (ROPS) with two quick clamps, making attaching and removing quick and easy

Canvas rear panel

NOTE: Picture shown is canvas roof/rear panel. Canvas rear panel would be rear portion only.

Features of the canvas rear panel:

• Made from premium, heavy-duty 600 denier-solution dyed, water-resistant polyester with UV stabilizers, for mold and tear resistance
• Durable PVC window resists yellowing or cracking. Window opens easily with a zipper and can be secured in place with straps.
• Installs in minutes
• Installed with full windshield and roof will help keep dust out of operator station
• Compatible with poly roof, canvas doors, poly doors

OPS full no-scratch windshield

Installed on Gator™ XUV 550

NOTE: Windshield is not tinted; picture is tinted to show details

The OPS poly full windshield is available for Gator XUV 550, XUV 550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles when equipped with an operator protection system (OPS) or rollover protective structure (ROPS) to provide additional protection for the operator and passenger.

• Manufactured from super premium, two-sided Makrolon AR grade abrasion-resistant polycarbonate.
• Increased UV longevity – resists yellowing longer than optical grade polycarbonate
• Increased chemical resistance over traditional optical grade polycarbonate
• Almost as hard as glass with greater impact strength
• 30 times less prone to scratching than standard poly windshield
• Designed to permit unfettered access to under-hood storage areas and service points (no tools required)
• Upper panel may be infinitely positioned to allow desired amount of ventilation
• Seals against the hood, OPS, and optional OPS roof
• Features the OPS quick-clamp mounting system; attach to/detach from the OPS or ROPS with ease

Reservoir bottle

Spray nozzle

Especially useful for working around properties and job sites, the windshield washer kit includes these components:

• Mounting hardware
• Spray nozzle
• Large reservoir with electric pump, harness, and hose
• Three-position backlit rocker switch: off, wiper, washer

The reservoir assembly bolts to the frame. A convenient three-position rocker switch controls the windshield wiper and washer fluid. As with all Gator™ Utility Vehicle electrical kits, the washer kit ties into the vehicle's wiring harness for quick installation.

Compatible with the following vehicles:

• All Gator model year 2011-current HPX, XUV 625i, XUV 825i, XUV825i S4, XUV 855D, XUV855D S4, and M-Gator A3 Utility Vehicles
• All Gator model year XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles
